semi automatic packing machines

heat tunnel shrink wrapping machine semi automatic thermal shrinkage packaging machine for boxes bottles metalware carton PE PVC film shrinking equipment

heat tunnel shrink wrapping machine semi automatic thermal shrinkage packaging machine for boxes bottles metalware carton PE PVC film shrinking equipment

This Semi automatic shrink packing machine heat shrinkage packager machine is suitable for single or multi heat-shrinking film package which features transparent, beautiful, damp-proof and anticorrosive.



Shrink Packaging is the international market, more advanced packaging methods. It is the use of shrink wrapped in the product or packaging outside , and then heated to shrink packaging products and bind tightly or equipment parts , it shows that the sales of goods in order to increase the sense of beauty and value ; Meanwhile, The Shrink packaging machine after items can be sealed ,moisture, pollution prevention and protection of goods from external shocks, has a certain buffer, in addition , can reduce the products are demolished, the possibility of theft ; shrink film shrinks produce a certain tension,it can a group of items to be packaged bind tightly rope tied to play the role ,especially for multi- items in the collection and tray packaging,so the product can be widely used in a variety of small product packaging.

front shot for shrink packaging.jpg


Application of semi automatic PE film thermal shrink packing machines
   ►This shrink wrapping machine is widely applied for outer shrink packing of various products, such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, book, toy and electronic products etc.
   ►To shrink wrapping the combined products in supermarket for sales promotion, such as foodstuff, beverage, cosmetics, presswork and toy etc.
   ► To use in place where there is restriction on space, such as supermarket, monopolization shop, office and some laboratory etc


Working principle of heat shrink packing machine semi automatic for boxes :


Two fans in electricity box cools down electricity box in order to protect electronics. Conveyor motor cools down by fan underneath.

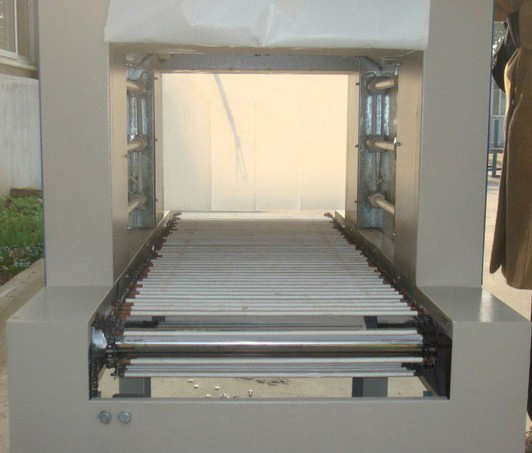

The powerful fan produces even hot airflow inside of shrink tunnel. The speed of the conveyer is adjustable.

Conveyor has option of chain roller and iron net conveyor for choice.

Technical parameters of heat shrink packaging machine semi automatic:

manufacturer shop for heat shrink packing.jpg

Model

YX-4020

 YX-4035

YX-4525

Shrink stove size

800×400×200mm

800×400×350mm

800×450×250mm

Power

5Kw

7Kw

6.5Kw

Carrying capacity

5 kg

5 kg

10 kg

Conveyor speed

 0-10m/min

 0-10m/min

 0-10m/min

Temperature(°C)

0-300

0-300

0-300

Machine weight

80kg

90kg

90kg

Outer dimension

1200×630×750mm

1200×600×900mm

1200×750×1150mm

voltage

220V/380V,50Hz

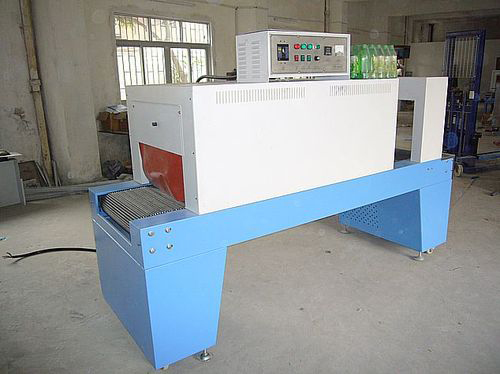

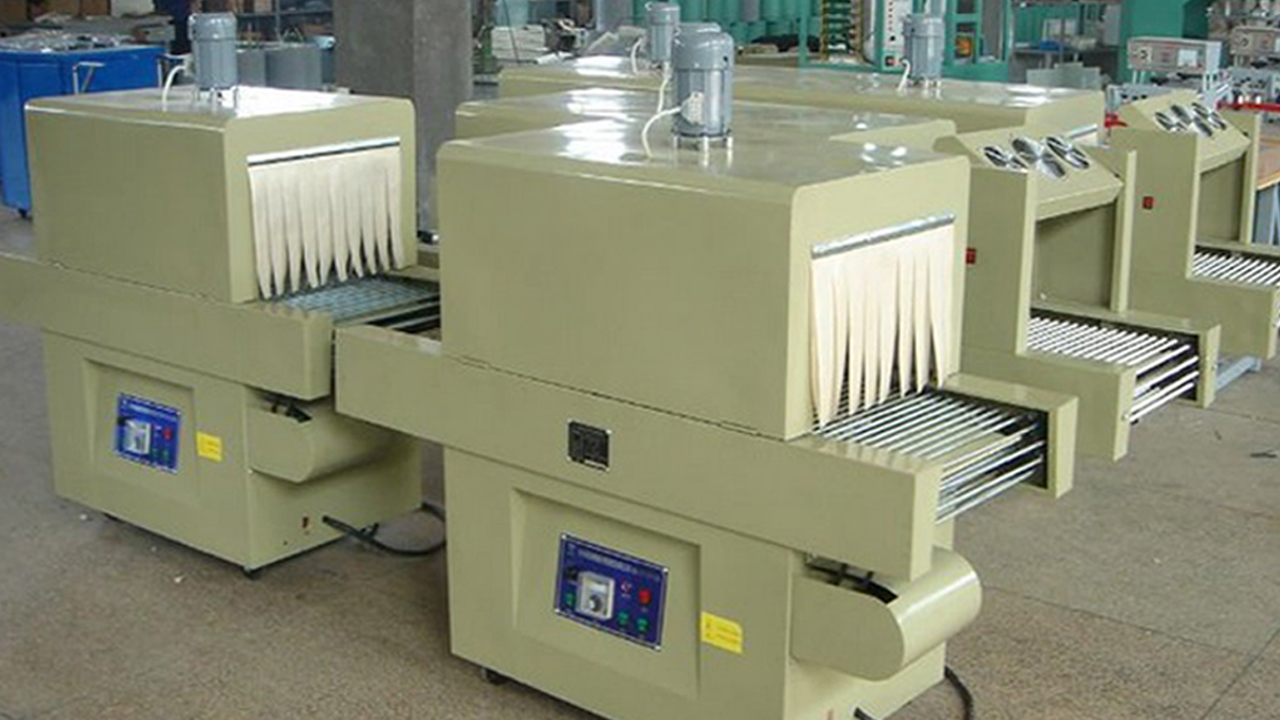

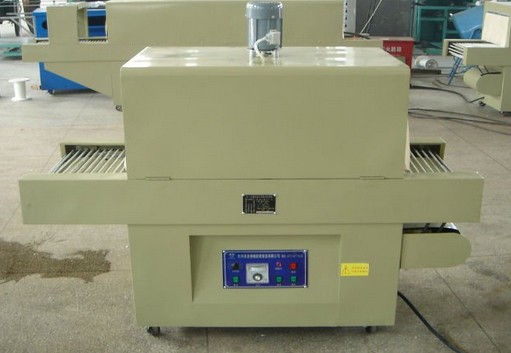

Infrared heat shrink packaging machines semi automatic picture:

infrared shrink packing machines.jpg

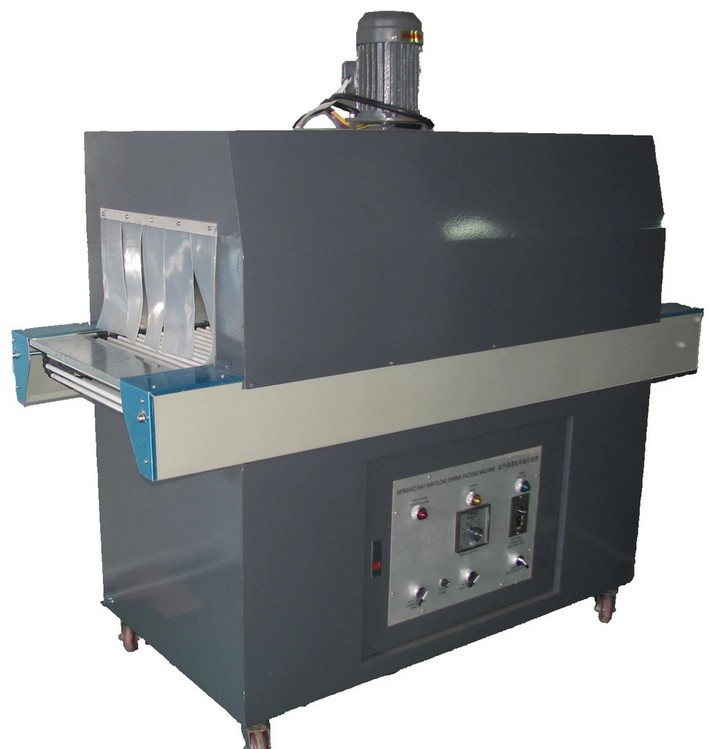

Constant Temperature Shrink Packing Machine semi automatic

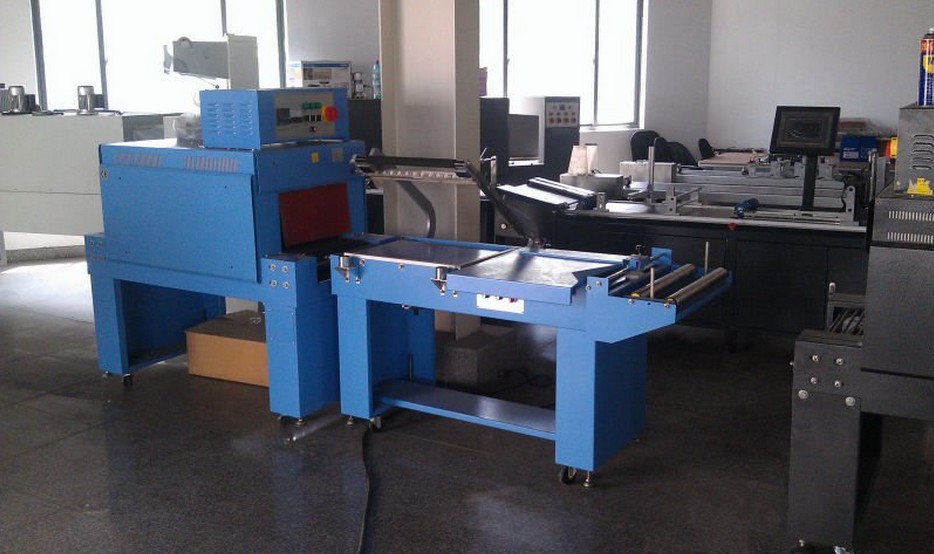

Semi automatic thermal shrink packing machine equipped with sealing machine for sealing packaging line :

sealing cutting machines.jpg

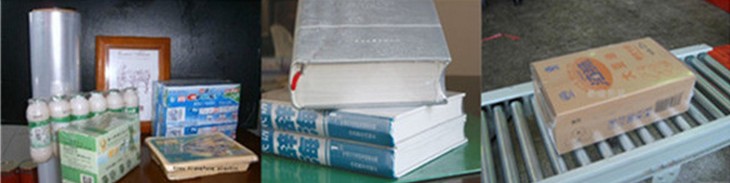

Shrink Packaging samples from Thermal shrink packaging machines

samples shrink.jpg

samples packaging.jpg

Wooden case packaging for semi automatic far infra red shrink packaging machine PE film oeverwrapping machines:

wooden case.gif
