fully automatic labeling machine

round glass bottles plastic container wine labeling machine double heads body neck labeler equipment automatic

round glass bottles plastic container wine labeling machine double heads body neck labeler equipment automatic

Automatic Double-head automatic Sides plus round bottle labeling machine

Product features on double heads bottles labeling machines

labeling machine automatic vertical labeler.jpg

1.The double side automatic labeling machine is suitable for square bottles or flat bottles with double mark or single mark.

2.The machine is designed with large-power and strengthening structure.

The shape belt can be inclined ,and the labeling head can be adjusted at eight orientations ,so the machine can be adjusted successfully in several minutes for any bottle.

3.The pressure between the active axle and the press roller can be adjusted ,so the running direction of the label can be adjusted freely .the label is only pressed flexibly without causing any distortion.

4.The labeling head adopts the structure of the double press rollers .it guarantees that the label is pulled tightly but isn't broken because of the underneath paper die-cutting, the separated clutch makes the strain more balanced.

5.The touch screen based human interface in Chinese and English with the online helping system makes it easy for operate the machine for the workers .the press belt is geared into the main transporting line ,so it makes the two transporting lines work in synchronous absolutely .

6.The machine apply the famous server motor, so it realizes real closed loop controlling and it avoids the phenomenon of "the blind man walk" when the machine apply the stepper motor.

The shape structure is designed specially, so the labeled thing is able to be located and labeled precisely.

7.The multi channel encoder detects labeling position precisely at high speed.

The label is pressed by a flap after applying on bottle and is pressed by the active and passive sponge rollers .so when the label is stuck it hasn't any air bladder. it is especially applicable to the crystal bottles labeled with transparent labels.

8.The optional air driving and roller labeling set can label round bottles precisely.
Types of bottles

Double-Head Automatic Sides Plus Round Bottle Labeling Machine (DY820B)

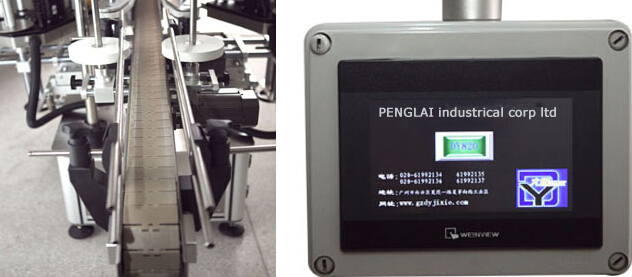

 The details of Double-head automatic Sides plus round bottle labeling machine
Double-Head Automatic Sides Plus Round Bottle Labeling Machine (DY820B)

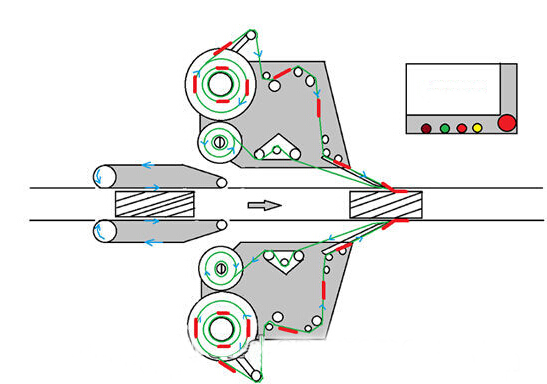

Chart of Double-head automatic Sides plus round bottle labeling machine



labeling way for labeling machines.jpgDouble-Head Automatic Sides Plus Round Bottle Labeling Machine (DY820B)
Technique data of model YX-630AA Round bottles labeling machine automatic with double labeling heads

Model YX-630AA
Production speed 40m/min(80-200PCS/min)
Labeling accuracy ±1mm
Label max width 200mm
Bottle diameter Thickness≤30mmheight≤500mm
Label inner diameter Φ76.2mm
Label outer diameter Φ350mm
The height of the conveyor line
 chain plate to the ground
900mm±50mm(can be produced according to customer requirements)
powe 380/220V 50Hz 3000W
Operating pressure 3-5kg  30L/min
weight 400kg
size  L*W*H 3048*1400*1650mm

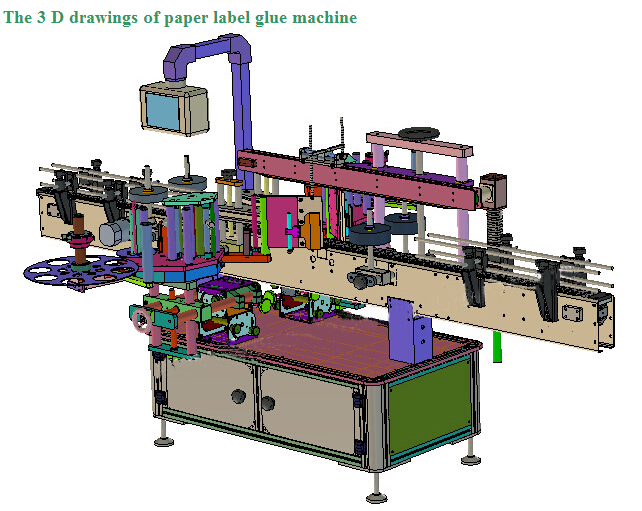

3D drawing for double heads labeler.jpg

Main configuration on model YX-630AA Round bottles double heads labeling machines:

NO.

Name

Brand

Qty

Remark

1

Servo motor

Delta

2 set

Taiwan

2

servo driver

Delta

2 set

Taiwan

3

Touch screen

WECON

1 set

Shenzhen

4

Transport motor

Zhujiang

1 set

Guangzhou

5

Label electric eye

TECO

1 set

Taiwan

6

EUT electric eye

DataSensor

2 set

Italy

7

PLC

Panasonic

2 set

Japan

8

Stainless steel material

Panasonic

1 set

Japan

9

Stainless steel  cabinet

304



GB

10

Label electric eye

JJZ

1

Dongguan

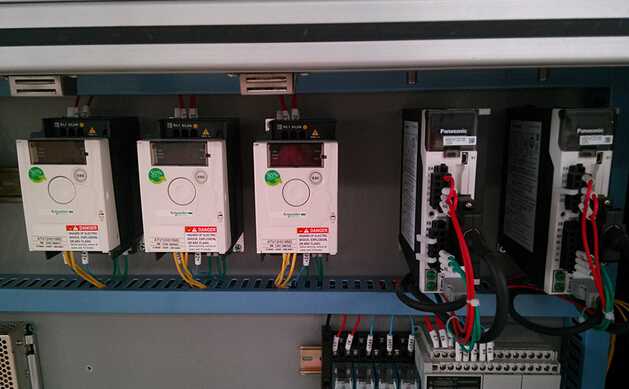

inside labeling machine.jpg

Packaging in wooden case packing bottles labeling machines :

packaging for labeling machine.jpg

After-sales service for labeling machines automatic

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification

to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,

our technician will go to your place to install and test the machine  and also training your worker to

operating the machine (The time of train depend on you worker). The expenses

 (air ticket ,food , hotel,the travelling fee on your country) should be on

your account; you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to

 fixed the machine as soon as possible.The cost should be in your account.(as above).



Aparting from the automatic labeling machine double heads there are several models labeling machine with either

automated operated system or semi automatic operated system .The labeling machines listed as below:

1.Model YX-60T round cans bottle containers labeling machine date coding máquina etiquetadora botella redonda

2.Model YX-LM100 toothpaste cosmetic cream tubes labeling machine semi automatic tubo de la máquina de etiquetado



3.Model YX-PL75plane surface containers bottles glue non sticker labeling machine manual 平面ラベリングマシン



4.Model YX-FL350 flat surface card pie cans top labeling machine automatic plane bottle labeler equipment



5.Model YX-FL02 transparent labels labeling machine flat bottles plane surface التسمية شفافة سطح مستو آلة وسم

6.Model YX-630G round bottles unscrambler turntable vertical labeling machine auto bouteille machined'étiquetage

7.Model YX-LM510 perfume glass bottles plane surface containers labeling machinery semi automatic labeler equipment

8.Model YX-SL25 round bottles labeling machine date codes printing labeler equip rodada máquina de etiquetas garrafa



9.Model YX-AB350 high speed horizontal labeling machine for turkey customers ampoule bottles labeling equipment pharm

10.Model YX-FL03 semi automatic Desktop labeling machine for plastic bottle table bottle labeling equipment

11.Model YX-GB5 automatic hotmelt glue labeling machine for water bottles plastic bottles hot melt adhesive labeller
