semi automatic packing machines

Double chamber fresh food rice meat bags vacuum packaging machinery film vacuum packing equipment for foodstuff medicine

Double chamber fresh food rice meat bags vacuum packaging machinery film vacuum packing equipment for foodstuff medicine

Model YX-500D Double chamber fresh food rice meat bags vacuum packaging machinery film vacuum packing equipment for foodstuff medicine

Working principle :

Vacuum packaging machine, just need to press the vacuum cover complete after vacuum filled with inert gases, sealing, lettering, cooling and exhaust in terms of the process.

The vacuum packaging or vacuum gas items can prevent oxidation, mildew and bug eat bymoth,damp,extended product storage period.

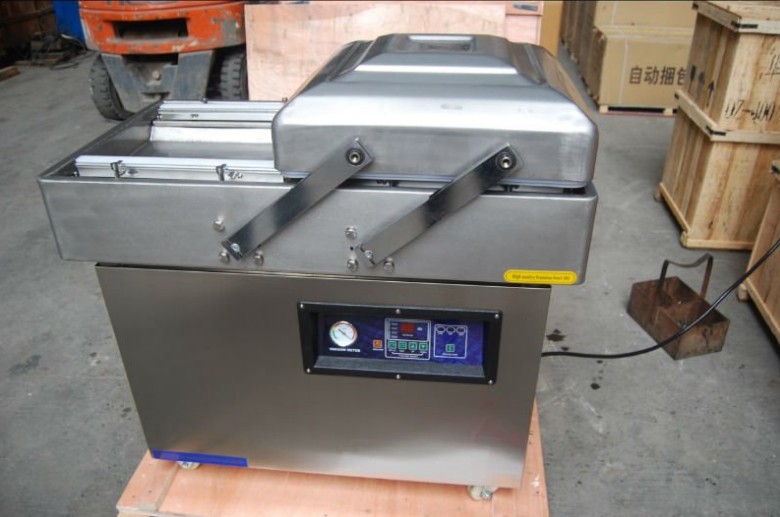

double chamber vacuum packing machines.jpg

How to extract oxygen :

Put your products into the heating tube of the vacuum packing machine ,then put the gas nozzle into the bags →turn on the switch→heating tube under the fuction of the cylinder will decline to sponge then press the bags →extract oxygen→gas nozzle under the function of the cylinder will run back,heating tube continue decline heating ,sealing , cooling →finished products→heating tube reset

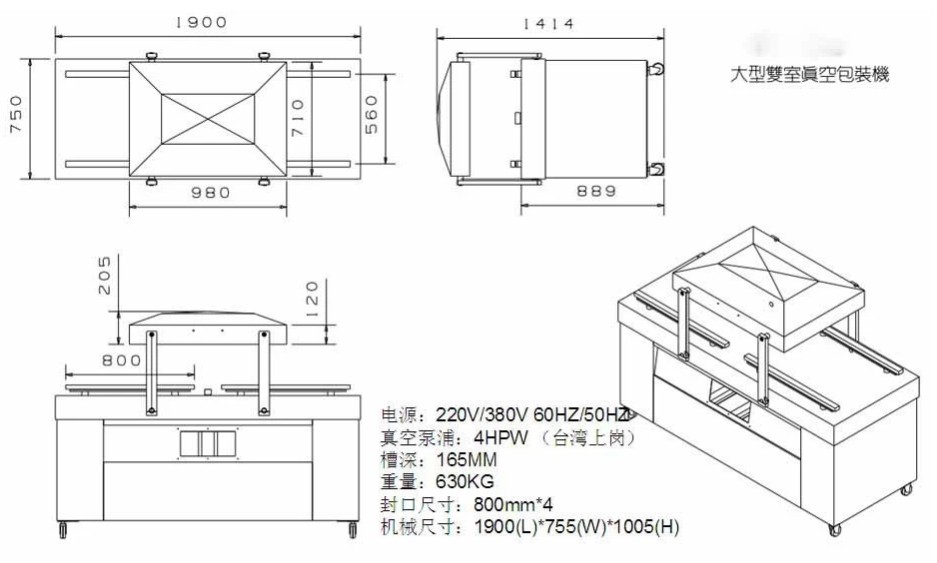

drawing for vacuum packaging food.jpg

How to inject nitrogen:



Put your products into the heating tube of the vacuum packing machine ,then put the gas nozzle into the bags →turn on the switch→heating tube under the fuction of the cylinder will decline to sponge then press the bags →inject nitrogen →gas nozzle under the function of the cylinder will run back,heating tube continue decline heating , sealing ,cooling →finished products→heating tube reset

Production Description on double chamber vacuum packaging machinery:

1.YX-500D double chamber vacuum packaging machine is featured by automatic    processing of vacuuming, sealing, printing, cooling in one operation.

2.It has double vacuum chambers. Operator can prepare bags for next vacuum packing in another chamber when one chamber is packing.

3.Therefore it has higher efficiency than single chamber machine.

4.It is widely used in vacuum packing for the food, pharmaceutical, aquatic, chemical and electronic industries.

5.Vacuum packing can prevent the products from oxidization and mildew, as well as corrosion and moisture. So it prolongs the life and freshness of the products over a prolonged storage time.

6.YX-500D series machine fills the bag with some kind of gas, such as nitrogen, after vacuuming the bag. Nitrogen gas helps to have longer freshness time than vacuum state.
vacuum packing machine
vacuum packaging machine_副本


Technique parameter of packaging machinery vacuum fresh food packing:

drawing for vacuum packaging food.jpg

Model YX-500D
Power source 220V/380V/50Hz
power 2.3KW
workroom size 570*540*110mm
sealing length 500*10mm
sealing speed 1-4 pcs/min
weight 250kgs
Machine size

1350*850*980mm

Final products packaging samples from vacuum capping machinery

drawing of vacuum packaging.jpg

drawing for vacuum packaging food.jpg

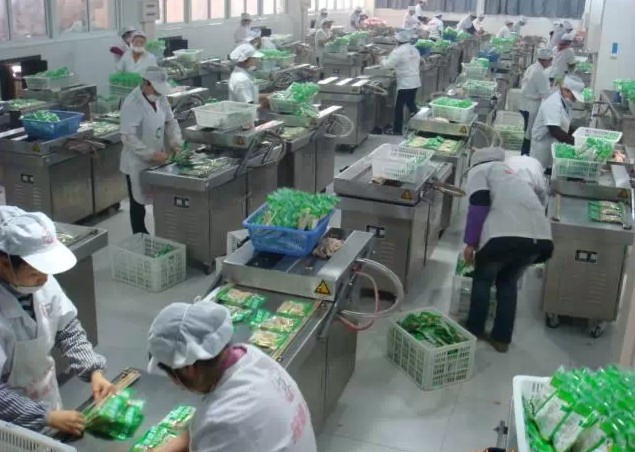

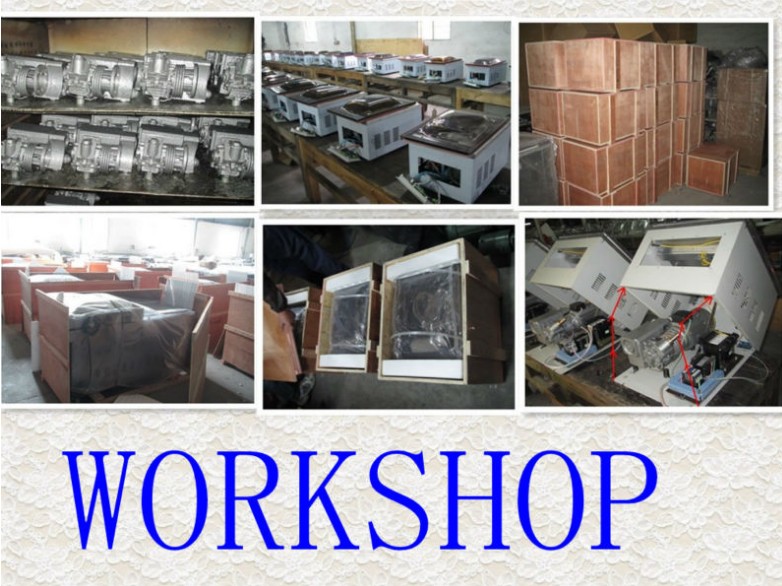

packaging workshop for vacuum packaging.jpg

After sales service for vacuum packaging machines

wooden case for vacuum packing.jpg

Guarantee: for all the machine, it claims one year for guarantee.

(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,

our technician will go to your place to install and test the machine

and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,

our technician will go to your place to fixed the machine as soon as possible.

The cost should be in your account.(as above).
