fully automatic labeling machine

customized rotary labeling machine for conical bottles pointed containers automatic custom labeller equipment

customized rotary labeling machine for conical bottles pointed containers automatic custom labeller equipment

Rotary  Sticker Labeling Machine,ie model YX-RL660 rotary labeling machine automatic for conical bottles high speed labeller equipment 卡盤式錐形瓶貼標機, is uses for the labeling of filled & sealed conical bottles. This rotary labeling machine is compact model uses very less space due to its rotary structure. Automatic irregular bottles Labeling Machine labels various shaped bottles with maximum speed of 120 ampoules per minute. Machine complies as per current good manufacturing standards.

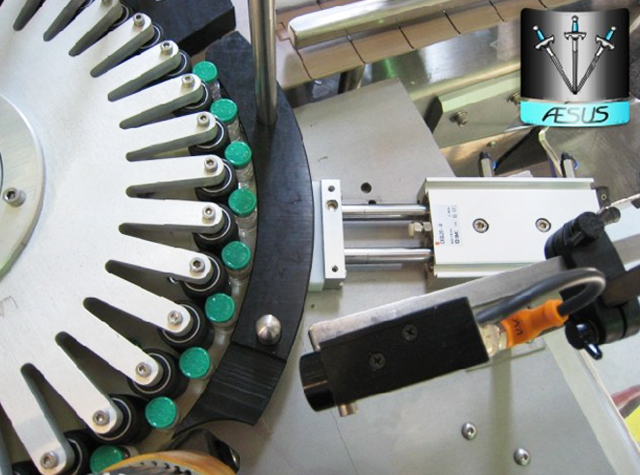

Process Operation on custom rotary labeling machines for cone conical pointed bottles labeling

rotary labeller equipment.jpg
The containers received from feed worm to star wheel precisely spaced and reach at the label wrap around point at the similar distance. While entering at the labeling point, container sensor start with servo motor and pressing belt press the label smoothly between pad and belt. Label sensor photocell detects the space between two labels and hold them until the next container comes. Meantime of this operation pneumatic printing attachment prints.

Basic parameter of customized labeling machine with mould for holding pointed containers:

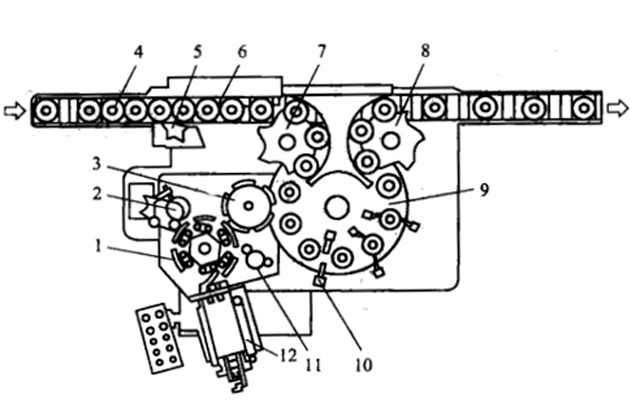

drawing of rotary labeling machinery.jpg


automatic rotary labeling machine for conical bottles
model YX-RL660
Labeling capacity(pcs/min)  40-150 pcs/min
Labeling accuracy(mm)  ±1.0mm
Label size  (L)20-280mm   (H)30-140mm
Material size  Φ40-Φ100mm   (H)40-300mm
Roll inside(mm)  Φ76mm
Roll outside diameter(mm)  Φ350mm
Machine size (mm)  (L)2000*(W)850*(H)1450(mm)
Power supply   AC220V 50Hz/60Hz  1500W

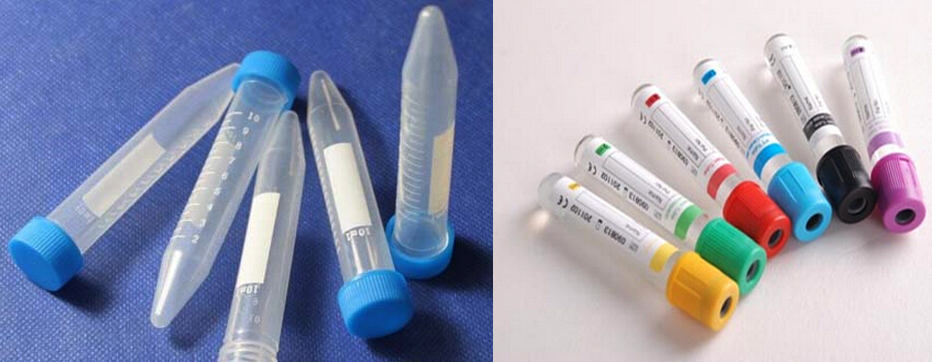

Samples for customized rotary labeling machine with container-holding molds

labeling samples.jpg

labeling part.jpg

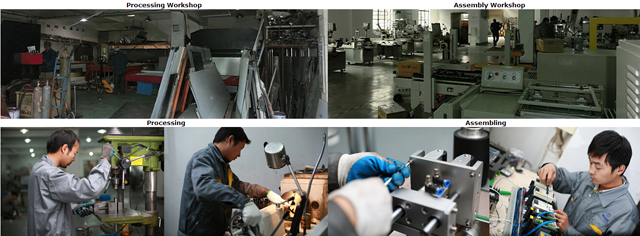

Machines labeling manufacturing plant

processing for flat labeling machine.jpg

Labeling machine in wooden case packaging

wooden case packing for machine custom labeling machine.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents,

misuse , misapplication, storage damage, negligence, or modification to the Equipment

or its components.ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician

will go to your place to install and

test the machine and also training your worker to operating the machine

(The time of train depend on you worker).The expenses (air ticket,food,hotel,

the travelling fee on your country) should be on your account and you need paid

for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,

our technician will go to your place to fixed the machine as soon as possible.

The cost should be in your account.(as above).
