fully automatic filling machine

tablets capsule granules candy filling counting machine fully automatic pharmaceutical filler counter equipment double heads pills bottling Tabletten- und Kapselzählmaschine

tablets capsule granules candy filling counting machine fully automatic pharmaceutical filler counter equipment double heads pills bottling Tabletten- und Kapselzählmaschine

YX-TC02 is the third generation of the tablet-counting machine. Its vibrator operates as a hyper-mute eccentric sifter and the sifting frequency can be adjusted continuously. The main engine, which is driven by a frequency-converted motor, starts softly and has a wide-range speed governor. The specially designed counting plate can accomplishautomatic counting and bottling for not only ablets or pills, but also capsules or shape capsules. This product conforms to the specifications of GMP absolutely. which is widely used in pharmaceutical, foods and chemical industries.



Characteristic:

1,Man-machine dialogue system setting,visual convenient operation ,accurate filling level.

2,the mainframe running speed is stepless frequency conversion.

3,Automatic stop function, if there is no bottles.



Main technical specification of automatic capsule counting machine

automatic capsule counting machine.jpg



Model

YX-TC02

Size of tables

Φ3mm-Φ12mm

Size of capsules

#0-#4

Size of soft capsules



Depend on your samples

Helero-shape capsules

Face talk to talk

Size of bottles

15-500ML

Capacity

20-60BPM

Power supply

AC220 50Hz

Power

1.2KW

Dimension

1800*1300*1700mm

Weight

550KG



























































Configuration of automatic tablets&capsule filling counting machine


Materials:SUS stainless steel,Materials contact part 316L stainless steel。

Switch:Taiwan Meanwell

Relay:Omron

Contactor:Sneider

Sensor:Autonics South Korea

Frame:PENGLAI

Motor:JSCC

Conveyor Motor:JSCC

Vibrator Motor:Golden Taiwan

Cylinder:AirTac

The machine counting equipment for capsule with/out automated feeding hopper

protective acrylic chamber as below:

without protective chamber hopper feeding.jpg

with hopper for feeding capsule.jpg

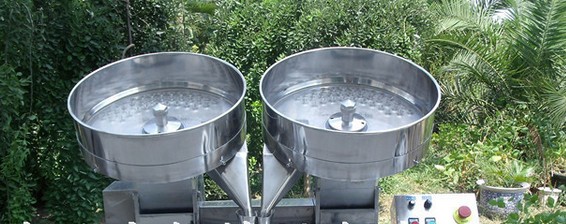

two heads counting machine for capsule.jpg

two heads counting machine for capsule.jpg



Automatic capsule filling+counting+capping+induction sealing+labeling machine

bottling line capsule counter filler.jpg

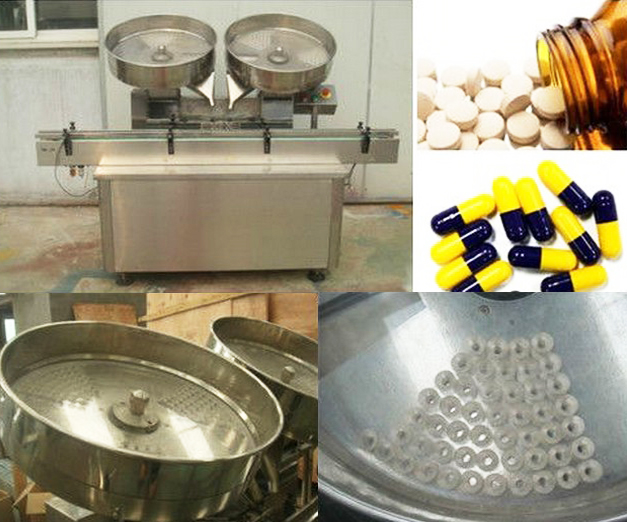

Capsule samples for bottles capsule from capsule counting filling machine automatic model YX-TC02

capsule filler equipment.jpg

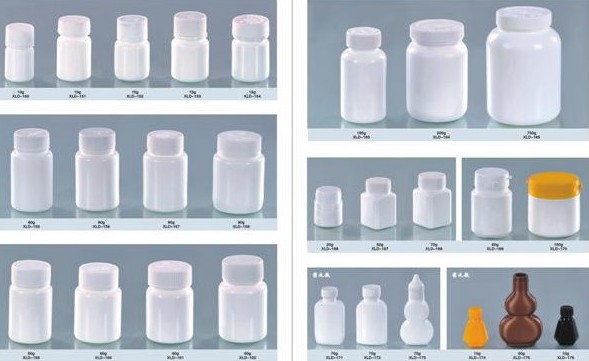

filling counting into bottles kinds.jpg

Packaging&shipping for automatic capsule counting machine model YX-TC02

packaging wooden case.jpg



After-sales service for filling capping sealing printing labeling line

 PAYMENT TERMS SMALL .jpg

Guarantee: for all the machine, it claims one year for guarantee.



(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
