bottles washing machines

bottles cleaning washing machine glass plastic container washer equipment semi automatic 30 heads cleansing machinery

bottles cleaning washing machine glass plastic container washer equipment semi automatic 30 heads cleansing machinery

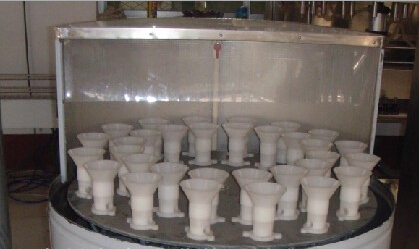

The Rinser is washing the bottles in 2 sides way. One is bottle outside washing, it adopts sprayer bathing washing, and the strength can be controlled by the inlet water quantity. Another is bottle inside washing, it adopts positioning rinse, and use water pressure to wash the bottle inside.

bottles washing machinery semi automatic.jpg

Characteristics on bottles cleaning washing machine glass plastic container washer equipment semi automatic 30 heads cleansing machinery:

bottles washing machinery semi automatic.jpg

  1. Suitable for bottles with different materials;
  2. Adopts bottle outside and inside washing;
  3. easy machine struction, well maintenance;

Main performance and structure characteristics

This machine is suitable for glass bottles, plastic bottles, cans rinse. The product is a semi-automatic liquid filling container glass cleaning equipment, wildly used in white wine, the color of wine, sparking wine, soft drinks, juice drinks, soy sauce and vinegar production unit cleaning glass containers. In the small -scale beverage production units is particularly applicable: this product into the bottle and the bottle by a human operator outside, scrubbing action is all efficiency can be increased about 24 times.

bottles washing machinery semi automatic.jpg

Technical parameter of semi automatic glass/plastic bottles washing machines model YX-W30

Wash heads

30 heads

capacity

2000B/H

power

0.55KW/220V

Suitable bottle height

50-150mm

Suitable bottle dia

25-80mm

Working pressure

0.2-0.4Mpa

Machine size

800×800×1200mm(L×W×H)

Machine weight

 80KG

bottles washing machinery semi automatic.jpg

Beside the model YX-W30 bottles washing machines semi automatic there are several models of bottles washing machines

equipped with the automated or semi automatic production line . the videos show them one by one as below:

1.thick sauce honey ketchup glass bottle jars bottle washing filling linear vacuum capping machines

2.oral liquid bottle washing drying machine glass bottle air blowing vacuum flaschenetikettiermaschine

3.6 heads beer bottles washing machine 6 lanes bottle brushing machine wine bottle cleaning equipment



4.oral liquid bottles ultrasonic washing machine 超音波洗浄機ボトル botella lavadora ultrasónica



5.bottle washing machine beer wine glass plastic bottle washer Lavadora de botella




*Payment Terms:



1. 30% down payment before production and balance before shipment

2. For established customers, we will offer more favorable payment terms

3. We can offer different pricing of FOB, CIF and C&F.

4. L/C is acceptable.



*Quality Control



1. IQC (Incoming Quality Check)

2. IPQC (In-Process Quality Check)

3. OQC (Out-going Quality Check)

4. FQC (Final Quality Check)



*Warehousing Condition



1. Shady

2. Cool

3. Dry

4. Dust-free



*Capacity

1. MOQ:1 Sets

2. Lead time:15-20 working days



penglai corp ltd.jpg



PENGLAI INDUSTRIAL CORPORATION LIMITED
