RO water treatment system first stage

5 gallon containers mineral water bottles blowing machines semi automatic one cavity bottle blower making equipment

5 gallon containers mineral water bottles blowing machines semi automatic one cavity bottle blower making equipment

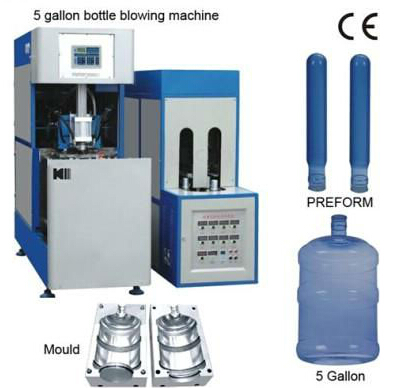

This Semi-auto 5Gallon Bottle Blow Molding Machine is suitable for producing PET plastic containers and bottles of 18Liters -20Liters.

It is widely used to produce the pure water bottle, mineral water bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Features of bottles blowing machinery semi automatic for 5gallon water bottles



gallons blower.jpg

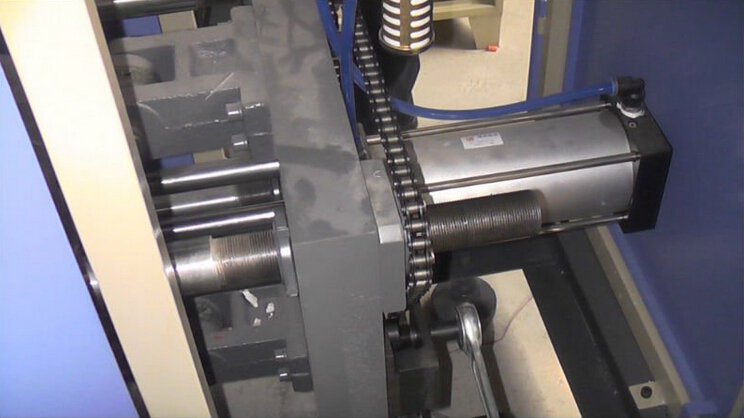

1)  Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
2) The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3) The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4) The machine can be operated in the step-by-step mode and the semi- auto mode.
5) The machine is small with low investment, easy and safe to operate by one person.

bottles making machines.jpg

Functions of auxiliary equipments:

(1) Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.

(2) Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.

(3) Air filter is to clear up the impurities out of the compressed air, like carbon-hydrogen, tiny dust and solid particles.

(4) Air tank is to receive and supply air for the machine as storage.

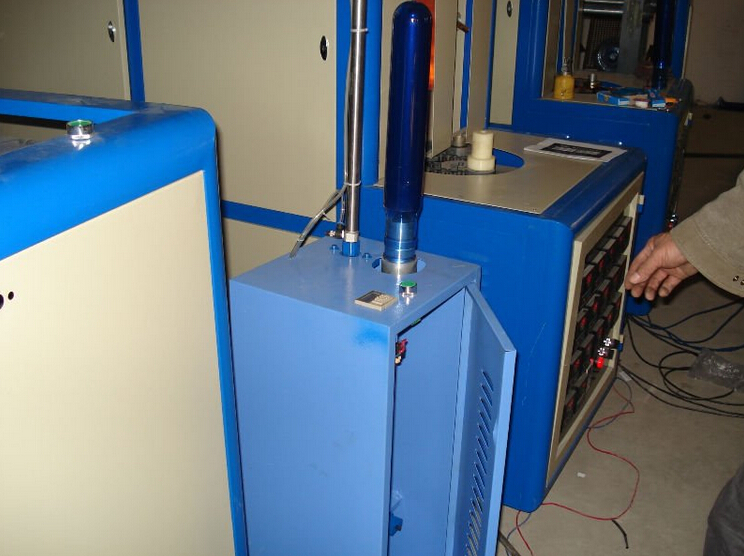

worker operate machines.jpg

Detailed parameter sheet of bottles blowing machines semi automatic with one cavity one pull one

bottles making machine for 5gallon containers in water producting line

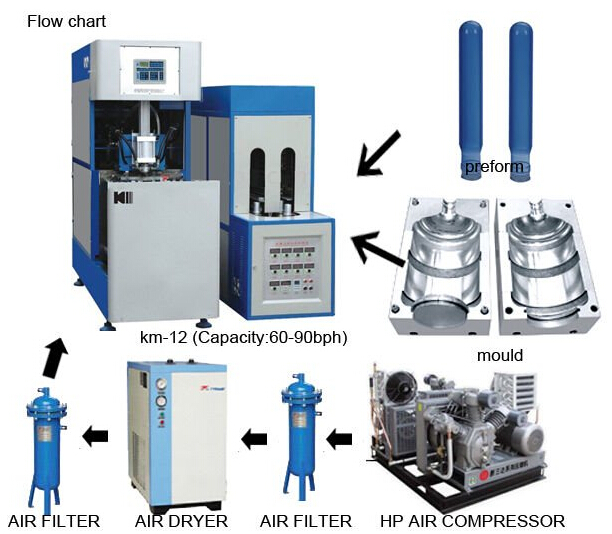

flow of bottles blowing machine.jpg

Main parameter:

Model

Model YX-BL01

Container

Product material

PET

Volume

18L-20L

Theoretical output

120PCS/H

Preform length

15mm-350mm

Preform inner diameter

φ5mm-38mm

Moulding

Max.mould plate Dimenstion(L x W)

350x380mm

Max.mould thickness

180mm

Clamping force

45KN

Mould opening stroke

160mm

Machine size and weight

Main machine (L x W x H)

160x60x161cm

Main machine weight

500Kg

Heater (L x W x H)

187x63x145cm

Heater weight

250Kg

Power

17.5kw

HP air compressor

Air compressor

Unit

1.2M3/min 30KG

Volume

M3

1.2

Pressure

Kg

30

Speed

r/min

850

Power

KW

15

Overall Dimension

mm

2000*1100*1600

Weight

kg

620

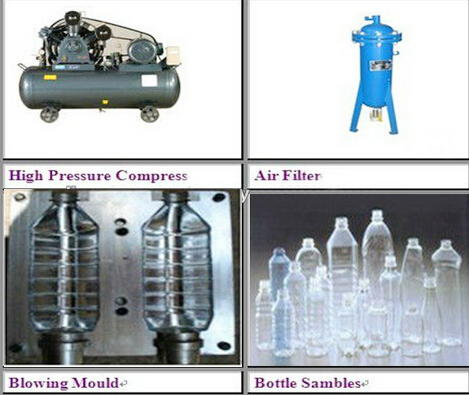

auxiliary machinery.jpg

Air Cooling Drier

Refrigeration Air Dryer

Unit

2.0M3/min 3.0Mpa

Flow capacity

Nm3/min

2.0

W.P

Mpa

3.0

Inlet Temp.

°C

≤80

Dew point

°C

23

Ambient Temp.

°C

≤38

Power supply

V/HZ

220/50

Compressor power

Kw

0.75

Cold Medium

mm

1050×650×1100

Weight

Kg

120



Air Filter

Refining-Filter

Unit

2.0M3/min 30Kg

Flow Capacity

M3/Min

2

Max. work pressure

Mpa

3.0

Inlet Temp.

°C

≤50

Cold Medium

mm

750*350*350

Weight

Kg

20

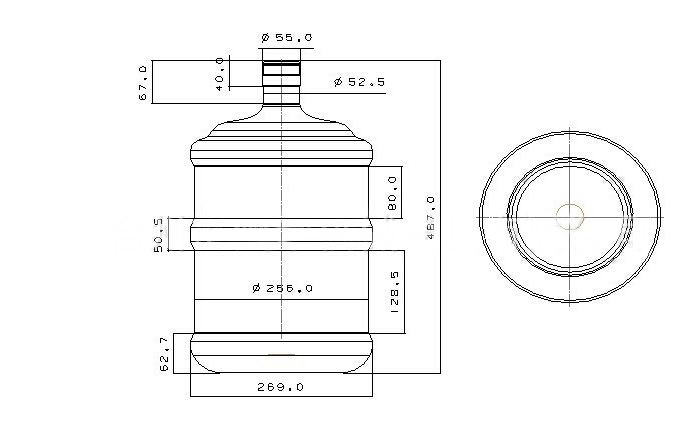

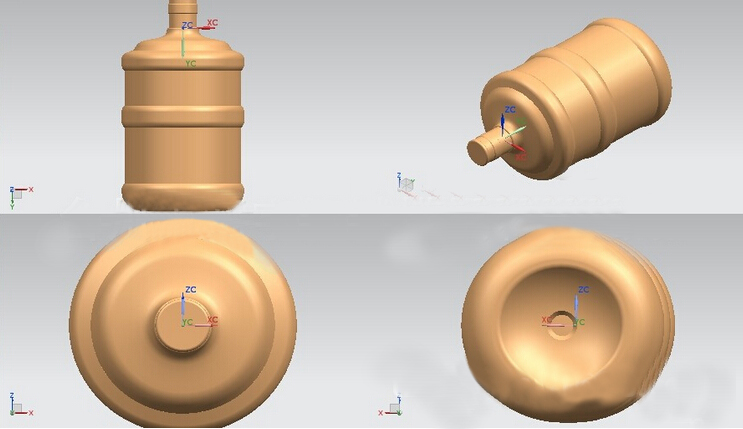

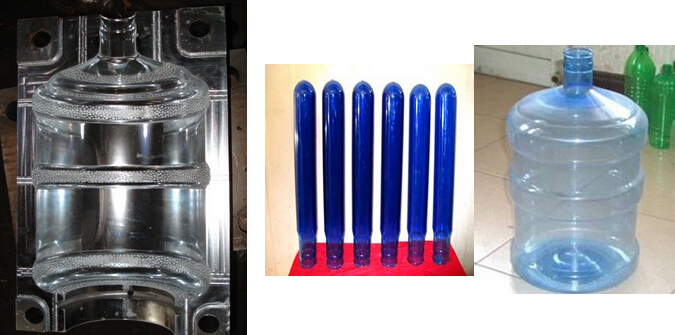

Bottles water gallons mould design before blowing machine processes


bottles blower.jpg

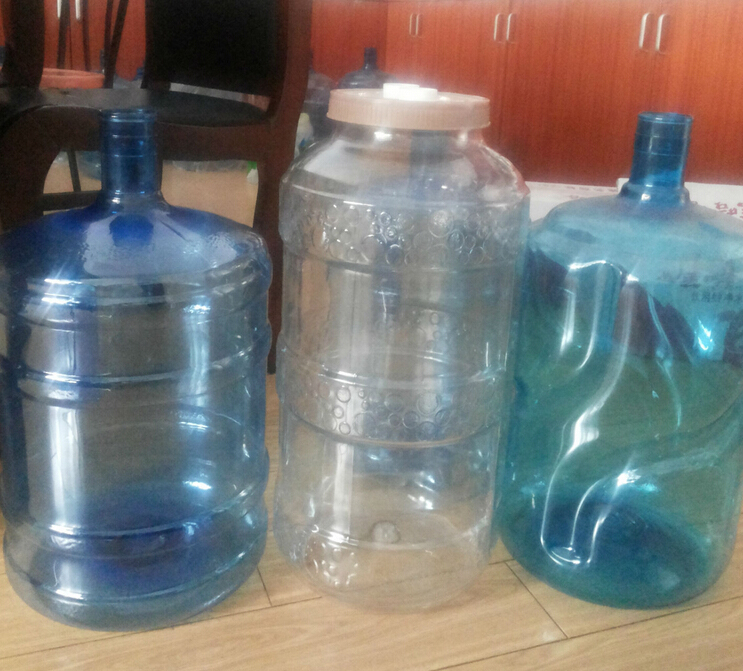

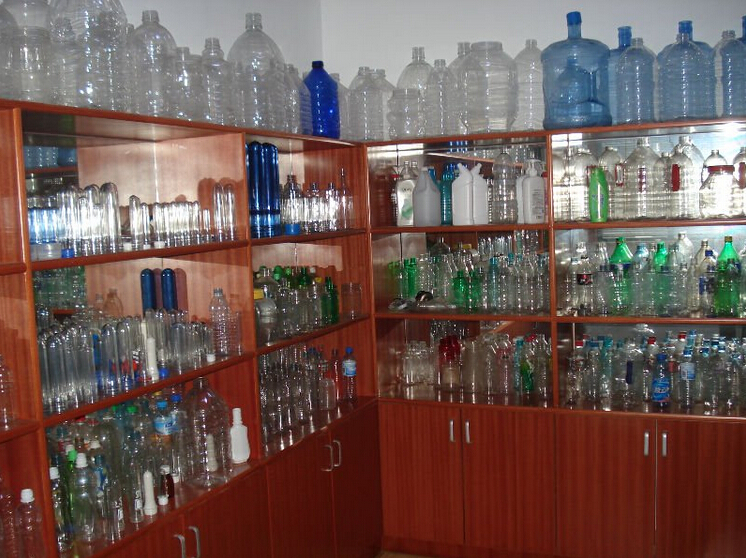

Final products from bottles blowing machine semi automatic for 5gallon containers

bottles mould.jpg

bottles blowing machinery.jpg

samples for bottles blowing machines.jpg

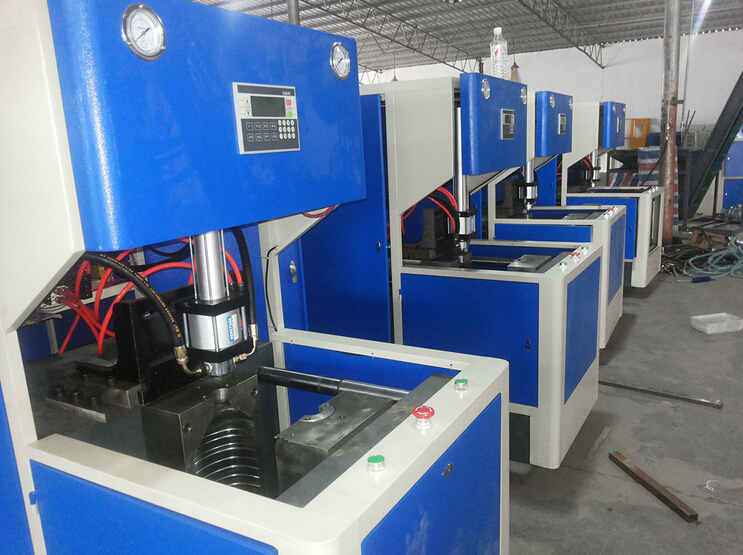

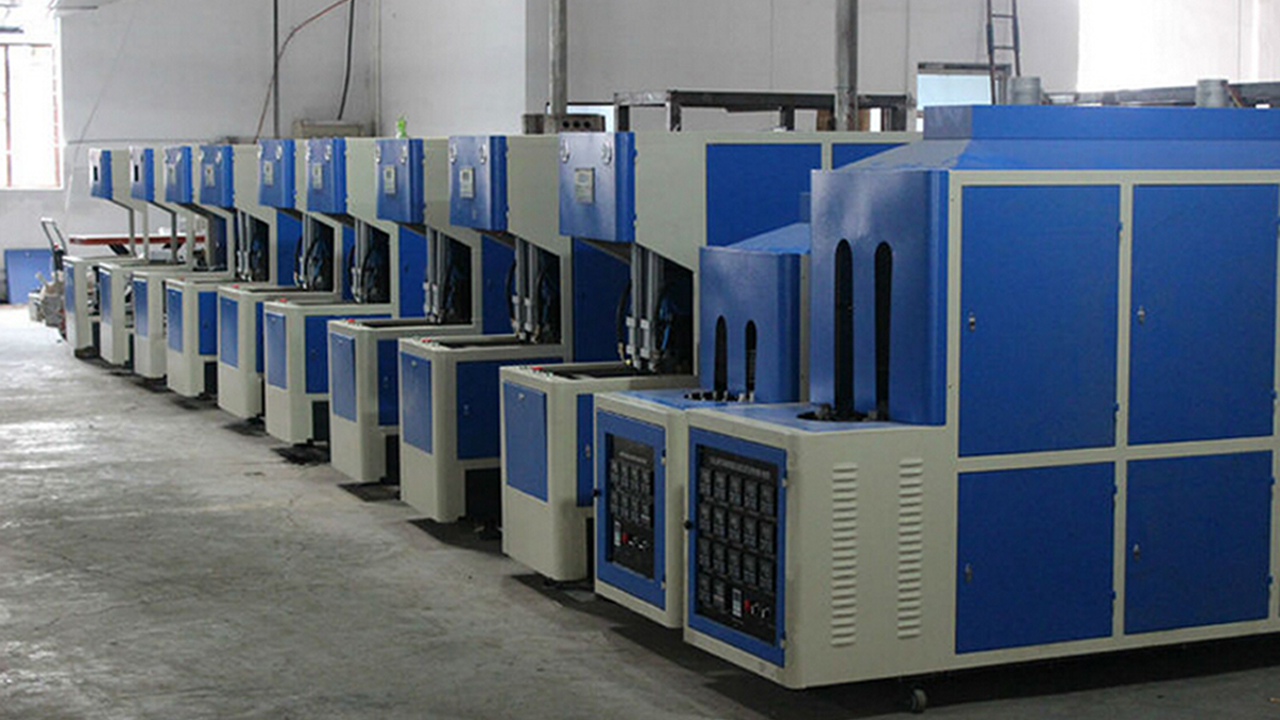

Machines bottles blowing semi automatic for different sizes of PET/GLASS bottls in stock

5G blower.jpg

5gallon machinery making.jpg

Wooden case packaging for bottles blowing machine semi automatic before ocean shipping

bottles gallons blowing machinery.jpg

Service:



Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould.

We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition.

There is a litter charge, only for flight charge and accommodation.



Delivery time:



25 days upon deposit and approval to the bottle drawing.



Payment:



For machine: 30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% will be paid before shipmment.



Guarantee:



We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client.

And send engineer to client’s company, help install the machine, teaching their staff operate the machine and also,

we do have a private school which help our client sending their staff to china, help them training.



After sales service:



The buyer pays travel expenses; hotels, airfares, meals and ground transportation and any other expenses related to installation and training at customers facility.
