Semi automtatic screw capping machine

Benchtop screw capper equipment for pump caps spray desktop semi automatic fully pneumatic capping machinery

Benchtop screw capper equipment for pump caps spray desktop semi automatic fully pneumatic capping machinery

Desktop screw capping machine semi automatic model YX-SCM001



Suitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily chemical, pesticide and cosmetics etc. Its four adjustable speed motors are used respectively for cap supplying, bottle clamping, delivering and cap screwing. It is characterized by high level of automation, outstanding stability, easy adjustment, no need of spare parts for replacing bottle types or caps, which can be done only by adjusting.

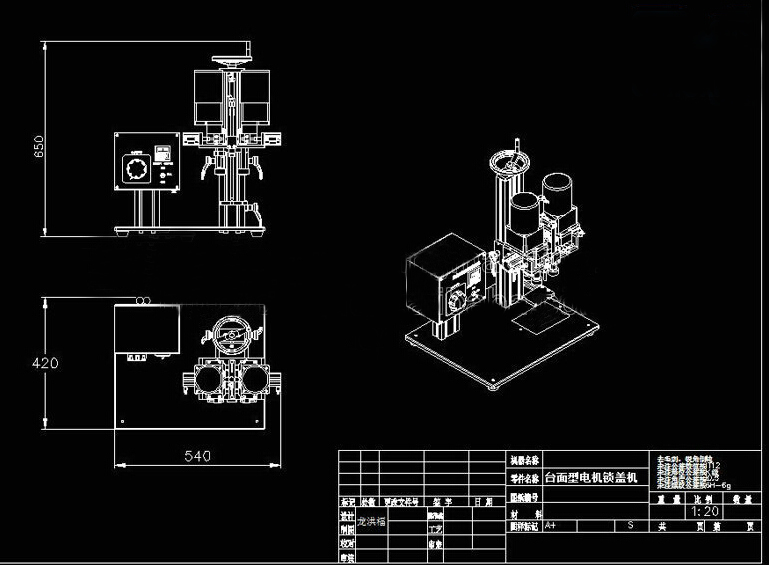

drawing for model YX-SCM001 desktop screw capping machines.j



Feature:

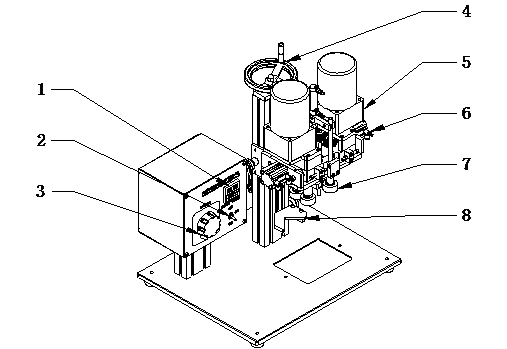

CAD FOR SCREW CAPPER.jpg



1, the electrical control movement;

2, positioning device, easy to operate;

3, locking cover wide range of lockable caps of different switch sizes;

4, locking cover, speed adjustable, can adjust the tightness of different caps



Applications:


This machine is suitable for a screw in food, beverage, chemical, pesticide, cosmetic bottle cap, it just do a

simple adjustment can be applied to a variety of different sizes and materials of the bottle, do not need to change

any parts

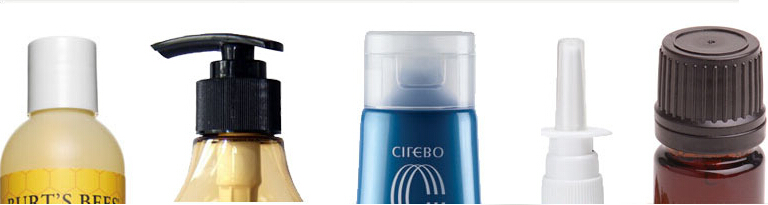

spray caps for capping machines.jpg

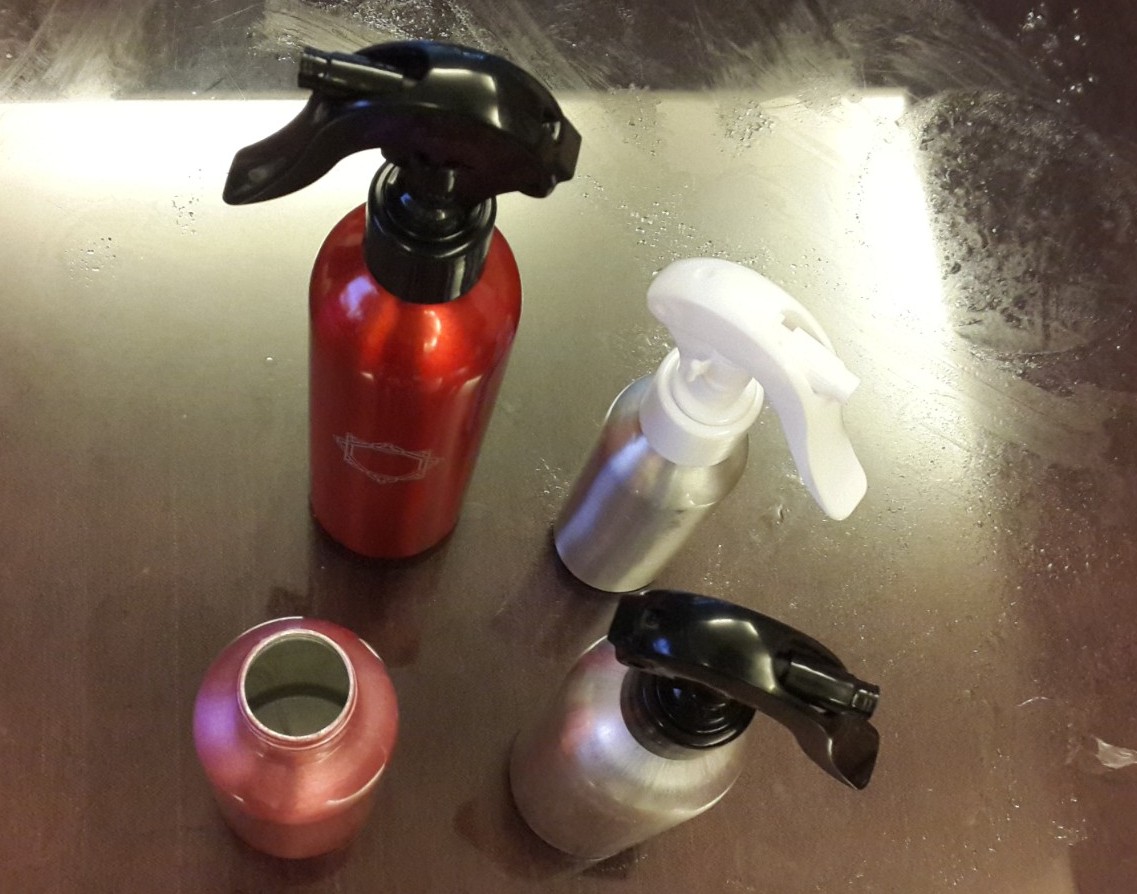

screw capping for bottles offered by USA customer.jpg



Techinic data for screw capping machine spray caps benchtop capper equipment semi automatic:

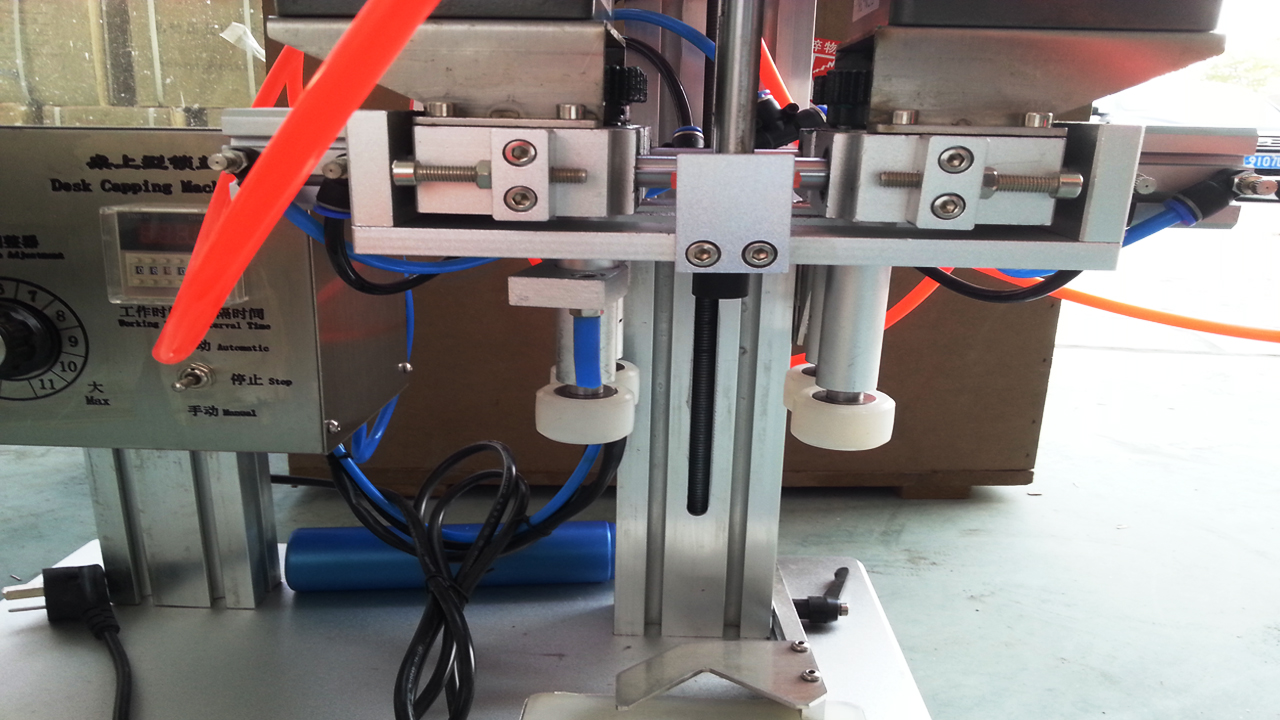

 front shot on screw capper.jpg


Specification of model YX-SCM001 screw capping machine semi automatic:




Model YX-SCM001

Power supply: AC220V/50Hz;

Power consumption: 60W;

Air source pressure: 5-6kg/cm2;

Cap diameter: 20-50mm;

Bottle height: 50-300mm;

Twisting force: 5-20N.m;

Percentage of damage: 0.1%;

Production capacity: 600-1800 bottle/hour;

Machine weight: 35kg;

Overall dimension: 620LX560WX770Hmm.


screw capper benchtop.jpg
shipping term for capping machine desktop.jpg

Besides the screw capping machines semi automatic there are several models of capping machine with either
semi automatic or fully automatic operation system . Below are the testing videos for them one by one :
1.Model YX-RC370 ROPP Glass wines bottles screw capping machine

2.Model YX-RC380 Automatic single head screw capping machien for aluminum caps metal cap
3.Model YX-30B four heads vacuum capping machine semi automatic

4.Model YX-160B Linear vacuum capping machinery for metal caps glass jars

5.Model YX-35B3 vacuum capping machine semi automatic
6.Model YX-C02 high speed screw capping machine automatic
7.Model YX-250A/B steam vacuum capping machine for glass jars
