fully automatic labeling machine

jars glass bottles sleeve shrink labeling machines fully automatic mineral bottles sleeve labeler shrinkage tunnel packaging machinery

jars glass bottles sleeve shrink labeling machines fully automatic mineral bottles sleeve labeler shrinkage tunnel packaging machinery

Automatic shrink sleeve labeling machine, with steam shrink tunnel and generator ,PVC,PET lable machine  Bottles Shrink labeling machine with tunnel

from bottles unscrambler to air knife dryer

Ⅰ.Glass jars bottles 12 heads rotating model bottles washing

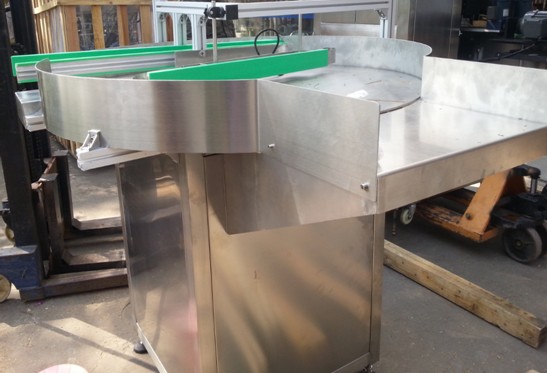

bottles umscrabler.jpg

Ⅰ.Bottles bottle unscrambler with 1.0 diameter model YX-BS12

The Unscrambler is the driving force with frequency control table, put the bottle of artificial circular turntable, turntable rotation, will be transferred to the bottle conveyor belt has continued into the filling line for filling. Easy to use, you easily done with the bottle Unscrambler work.

Features of bottle unscrambler
1) Suitable for unscrambling disordered polyester bottles
2) Aligns bottles and discharges them by vacuum conveyor
3) PLC program controlled
4) Automatic.
5) High speed operation

Technical parameters of bottle unscrambler

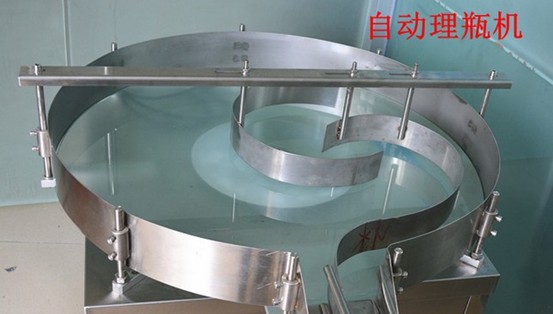

bottles umscrabler.jpg

* Diameter: Φ1000mm

* Speed: 430-50bottles/min(with Speed Controller, Schneider Inverter)

* Power: AC 220V±5% 50Hz 120W

* Material: SUS304

* Motor: Wanxin(Taiwan Brand, reducer without maintain)

* Variable Speed Controller: Taida

* Machine Weight: 80Kg    Bottle Diameter Ø20~Ø100 mm



Ⅱ. sleeve labeling machine with shrink tunnel model YX-SL150

The sleeve shrink labeling machine with shrink tunnel adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer;

also, it  is equipped with the positioning module to ensure the casting label precise, rapid and stable.

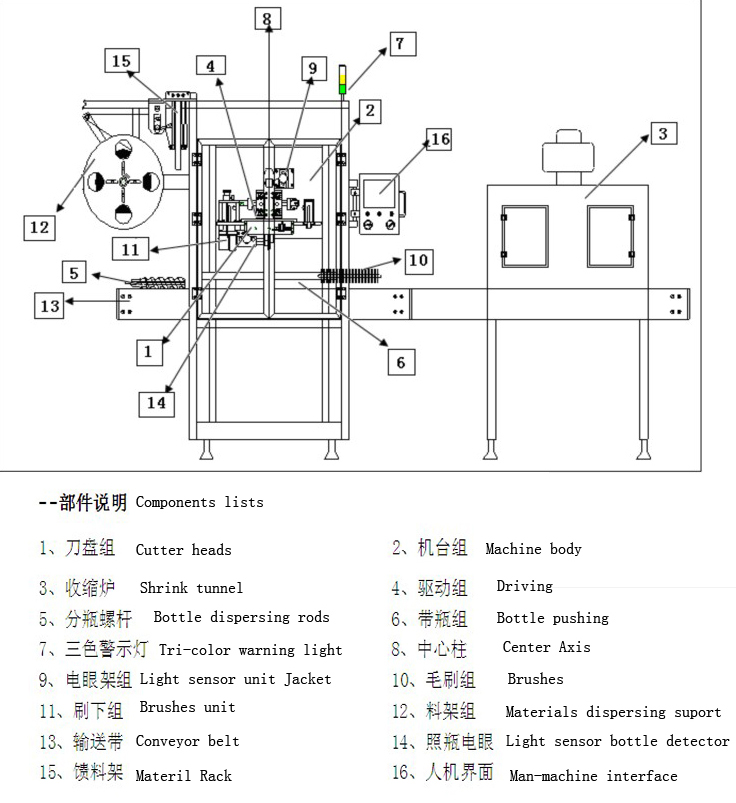

samples for shrink sleeve labeler.jpg

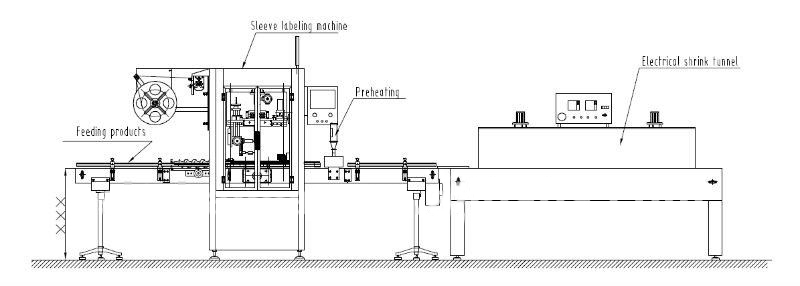

samples for shrink sleeve labeler.jpg

Basic description of sleeve labeling shrink packaging machines

1 Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and
maintain is simple, so it doesn’t influence production.

2 Unit cutter head plane design in China which apply to the container of 30mm—130mm.you never need to change
or debug it. It also has unique light touch human-machine screen, that means,auto search original location as well as safety and convenience which is aheadof other congener products.

3 Single shrinking label feed plane ,reasonably height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly ,the label will detect and locate automatially.The change of label is quick and convinient,besides,the cut place is absolutely exact .

4 Label feeding equipment;driving synchronized tensility control the supply of label ,the supply ability is 90meters per minite,volume
label supply plane is 500mm,the internal diameter of paper tube will be 4’ ,8’,10’ .the configuration of label feeding is
stable tensility which enable the exact length of label and the stable ,quick supply of label.

5 The center pillar applies step by step shoot label structure and the speed is 150B per minute.

6 The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperates with the label synchronized location structure enable the precision of cut location within 1mm.

7 Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

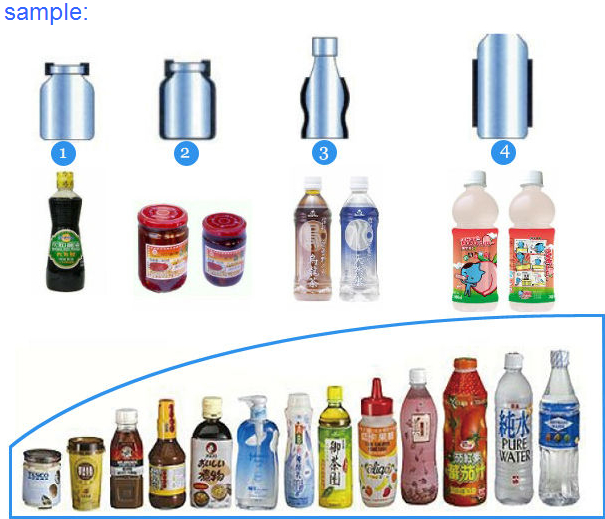

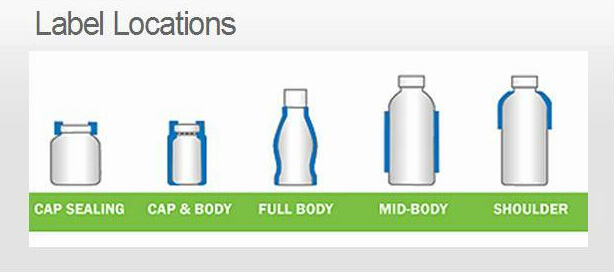

Applicable Variety Types of Label:
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped, etc.

samples for shrink sleeve labeler.jpg

Main technical parameters of the sleeve labeling equipment:

samples for shrink sleeve labeler.jpg

No.

Part

Item

Unit

YX-SL150

1

Bottle specification

Volume

L

0.35~1.5

Neck diameter

mm

28~38

Body diameter

mm

50~110

Bottle height

mm

150~310

2

Label specification

Material

/

PVC PET OPP OPS

Thickness

mm

0.038~0.05

3

Labeling specification

Labeling speed

b/min.

150bpm

Ambient temperature

.C

-10~40

4

Power standard

Main power

Kw

3

Voltage

V

210~250VAC 50hz

5

Conveyor specification

Inlet conveyor

m

2

Bottle conveyor

m

7

6

Dimension

Main machine dimension L*W*H

mm

2000*1100*2100

Weight

Kgs

350

7

Production rate

0.5L/1.5L

bph

5000~8000bph


Shrink tunnel parameter



shrink tunnel size.jpg

shrink machine size:2100*850*2000mm

steam pressure:1kg/cm2

steam:50kg/h

steam furnance size:2000*500*1700mm

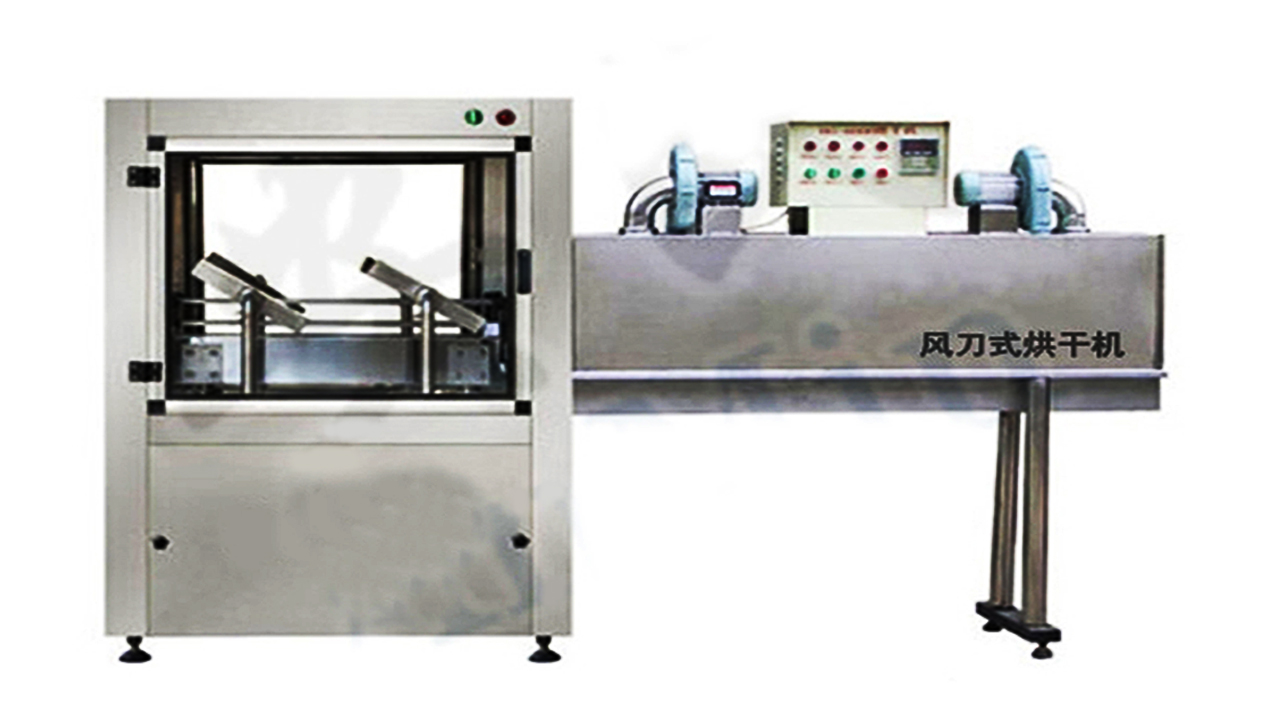

Generally speaking after being shrinked from steam shrink tunnel the bottles are often wet with the steam water,which

is recommend to choose air knives dryer to solve this problem .Below is the picture&videos for dryer equipment

air knives with shrink sleeve label.jpg





Sleeve shrink labeling final products samples



samples for shrink sleeve labeler.jpg

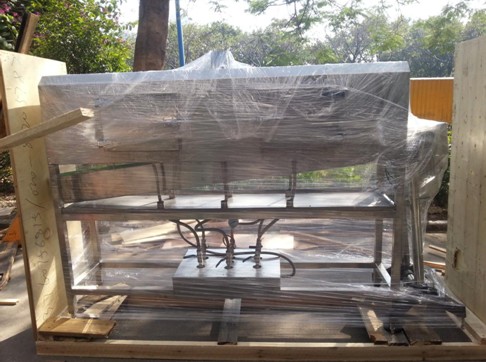

Wooden case packaging for delivery&ocean shipping



samples for shrink sleeve labeler.jpg

After-sales service&guarantee for shrink sleeve labeling machine model YX-SL150

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
