fully automatic packing equipments

PVC tapes electric adhesive tape packing machine fully automatic with loading system PLC controller packaging equipment industrial

PVC tapes electric adhesive tape packing machine fully automatic with loading system PLC controller packaging equipment industrial

Model YX-TP40B Tape packing machine automatic for PVC adhesive electric tapes adhesiva eléctrica empaquetadora de cinta designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like PVC Electrical Tape Packing Machine and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.

PVC tape packing machine,auto packaging machine for electrical tape
Application OF Model YX-TP40B Tape packing machine automatic for PVC adhesive electric tapes adhesiva eléctrica empaquetadora de cinta
Suitable for packing PVC electrical insulation tapes.
Feature of tape packing machine model YX-TP40B

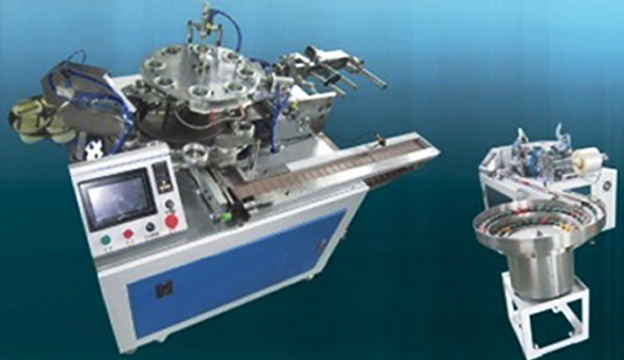

tape packing machines.jpg
1.Dual rotating pan design and independent shaft packing are adopted to improve efficiency.
2.PLC is used for data process, servo motor control (relative movements of auto unloading pan, electric parts, motor, servo motors)
3.Digital data process, with combined function of Siemens PLC and photoelectric system, to realize high precision position and accurate running.
4.The touch panel has auto error detecting and display function, parameter, process data and parts position can be easily set.
Basic parameter of Model YX-TP40B Tape packing machine automatic for PVC adhesive electric tapes adhesiva eléctrica empaquetadora de cinta :
YX-TP40B PVC adhesive tape wrapping machine

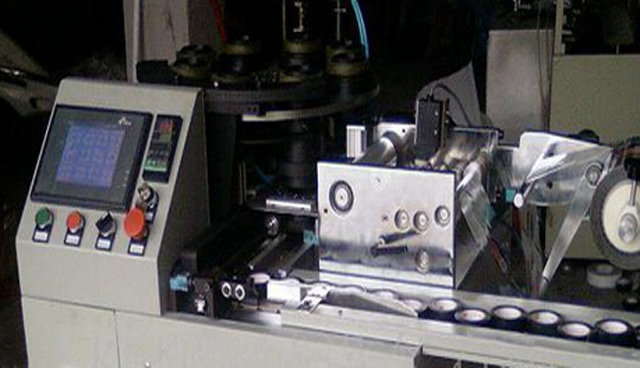

electric tape packing machine.jpg

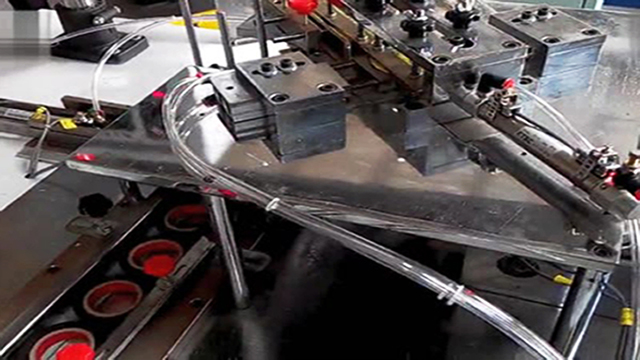

tape packing equipment.jpg
Power: 1400W-1p AC 220V
Air source: 0.6MPa-0.8MPa
Production ability: 2400PCS/hour
Volume(mm): 2850X1100X1400 mm
Tape specification: Max. 82mm (upon customer's request also)
Max. Diameter: WithinΦ 250mm
Film material: Single face thermal film or double face thermal film(BOPP)

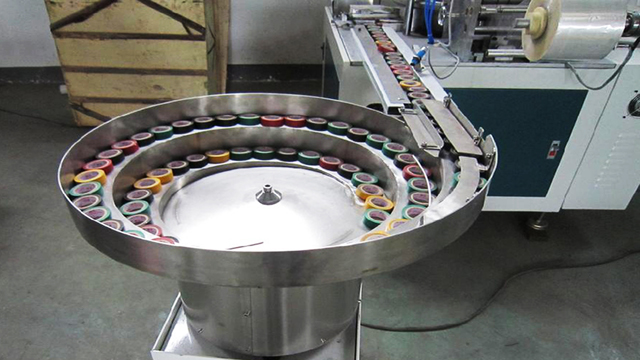

tape packing machine.jpg

Electric part for model YX-TP40B PVC tape packing machine:
. Siemens S7-200PLC(CPU226, 224, 212)
. Weinview(MT6070MI)
. Servo encoder
. Taiwan pneumatic parts
. Hiwin sliding part
. 1100STM04020 servo motor 130STM07520 servo motor
. ORS-A driver & others

Samples of PVC electric tapes insulation from tape packing machine

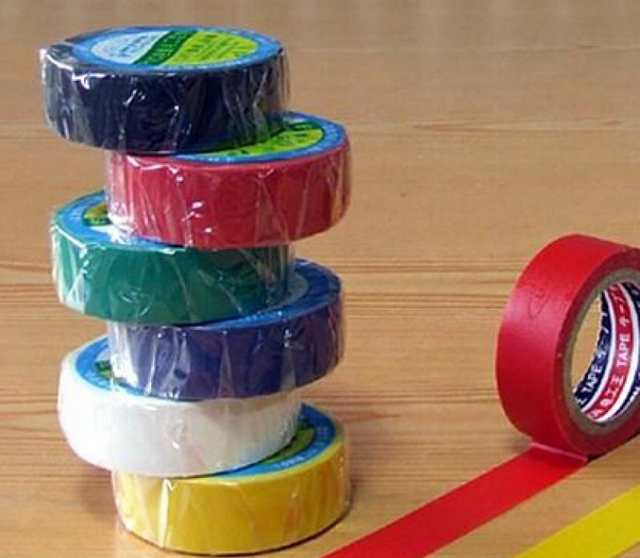

tape samples.jpg

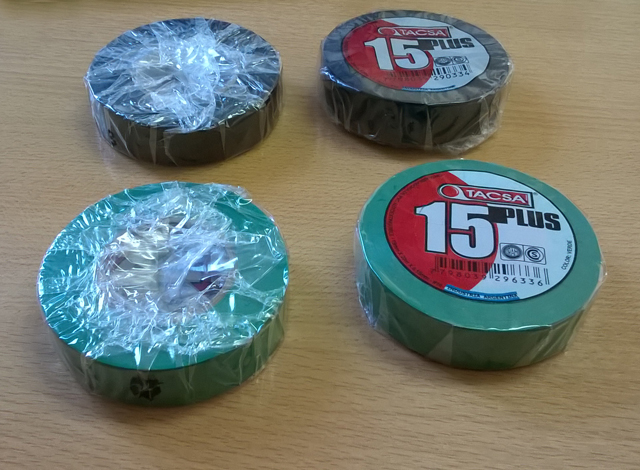

PVC insulation tape packing samples.jpg

Wooden case packing for tapes packaging equipment

wooden case packing for machine filling sealing.jpg
Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like Model YX-TP40B Tape packing machine automatic for PVC adhesive electric tapes adhesiva eléctrica empaquetadora de cinta,please email via jackdu999@yahoo.com or browse our website http://penglaichina.com.
