granules packaging machinery

Vertical form fill seal equipment granules packaging machinery VFFS packing food volumetric cups auger multiheads

Vertical form fill seal equipment granules packaging machinery VFFS packing food volumetric cups auger multiheads

The machine ,model YX-240A Vertical form fill seal equipment granules packaging machinery VFFS packing food volumetric cups auger multiheads ,

is suitable for packing granular material, such as medical pills, food Stuffs, plant seeds,

 washing powder, coffee, sugar, desiccant etc The integrated processes of bag making, measuring filling,

sealing cutting, counting and hot pressing codes can be done automatically.

Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc.

Features of vertical packaging machinery for granules:

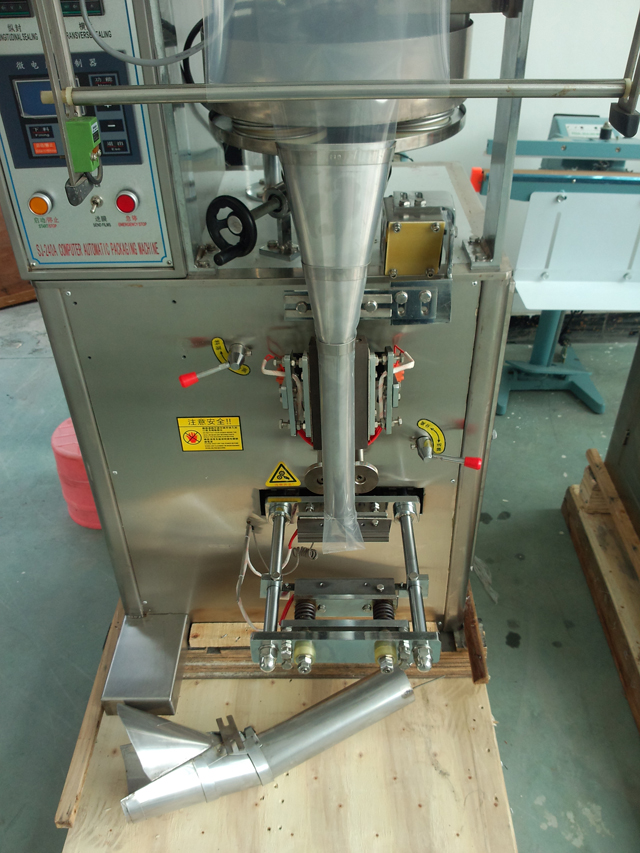

vertical packing machine bucket for granules.jpg
1. All stainless steel cover meets to GMP standard.

2. Equipped with 8ntipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Photocell controller is easy to manipulate.
5. Automatic self support lubricating system, the machine can work 24 hours

and the maximal capacity is 110 bags/min.
6. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
7. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by  ± 2%.
8. Along with assembling automatic no packing alarm system, help user to  economize cost.
9. Equipped with easy open system.
10. Ink printer and conveyor are as an option.

the working process:




automatic detection - automatic weighing -  automatic filling - automatic bagging - automatic bag sealing - automatic cutting - automatic counting

Technical Specification of YX-240A series granules packing machines:

Illustration for vertical packing machine.jpg

Sealing type

Please choose Back sealing  /Three & Four side sealing

Method of Measurement

Cup type



Range of Measurement

5-330ml 5-80ml (Six cups on double trays)

50-330ml ( Four cups on double trays)

0-5ml (fixed cup on single tray )

Packing Speed

20-40(bag/min)30-50(bag/min)40-60(bag/min)



Bag Size

(W):30-120mm (L):30-155mm

Bag size can be lengthened according to customer requirement

Total Power

1600W

Voltage

380V or 220V or made accordingly

Machine Weight

250kg

Machine Size

930x730x1700mm


There are mainly three filling measuring way for the packaging machinery,which get displayed as follow:



1.Volumetric cups measuring filling :






2.auger filling measuring:

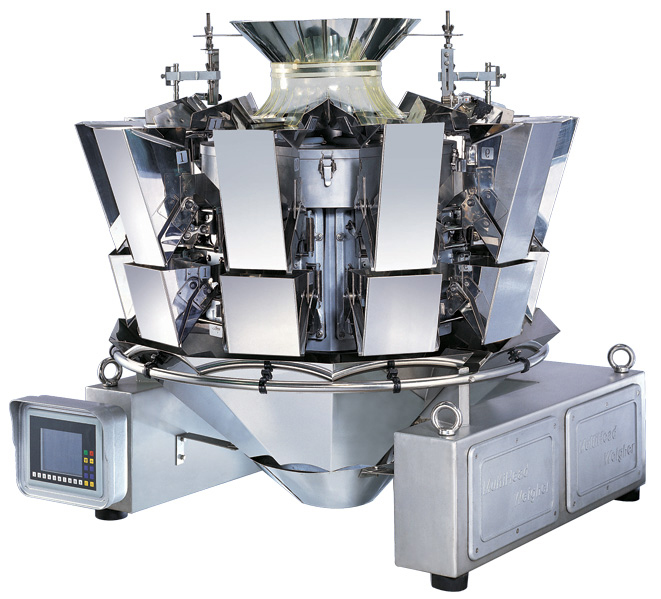

3.Multiheads weighing measuring filling:

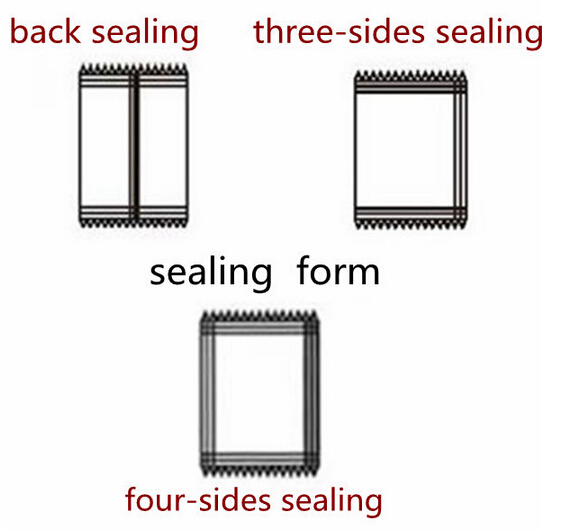

Sealing way bags from packaging machines vertical for granules

Illustration for vertical packing machine.jpg



Samples packaging from Vertical form fill seal equipment model YX-240A Series

samples after packing.jpg



Operation on the machines:

(1) Connect the electricity supply, the clear compressed air according to the machine's requirement, put the case shell on the floor well, adjust the work pressure to 0.6Mpa, fuel charging to the air cylinder and other parts. (advise using pure white oil).

(2) Put the packing materials on the film reel and fix the capsule (printing side facing outer or compound side facing inner). Put the packing materials according to the pictures.

(3) Put on the power switch, the machine is in waiting condition when the indicator light is on.

(4) Attempting to set temperature according to the temperature which the upper temperature controller and the lower temperature controller show when the packing material pass the board.

Illustration for vertical packing machine.jpg

Custom-made machine:

We have Great customized and design ability. Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost, making your packaging system works smoothly.



Packaging of packing machines for delivery






Installation:

1.We provide videos and instruction manual to show the process of  installation.

2.We provide training for installation for free in our factory.

3.We can send technician to buyer's factory to install the machine and provide training service.



 After Sales Service:

1.One year quality warranty and free lifetime technique support.

2.Free spare parts would be supplied if machine broken within warranty period.

3.After the warranty period, the spare parts for replacement are offered based on certain charge.
