single side labeling machines

automatic carton boxes single side labeling machine customized labeller equipment for flat surface objects

automatic carton boxes single side labeling machine customized labeller equipment for flat surface objects

The flank side /lateral labeling machine for boxes cartons is used to paste one label on flank of big carton, such as Carton, Package tile and so on.You can connect our machine with the line of production or operate by single.

Automatic Non-sticker Vertical Sticker Labeling Machine is intended mainly for sticking label outside the side face of round or square objects.The machine words stably and reliably, which leads to smooth labels, clearly printed dates and batch numbers(the printer allows three rows of characters).This machine is provided with a multiple control system, which assures automatic stop at the lacking or breaking of labels as well as at the lacking of bottles. This product conforms to the specifications of GMP absolutely. Which is widely used in pharmaceutical, foods and chemical industries

Technical Parameters of model YX-510B carton boxes side labeling machine:

parameter of labeling carton.jpg

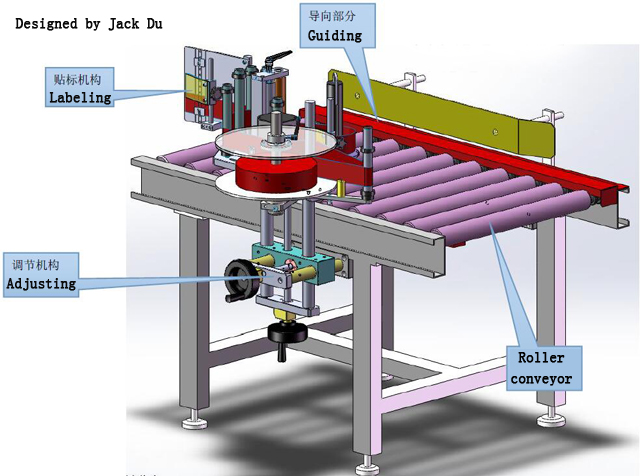

drawing of carton labeling machinery.jpg

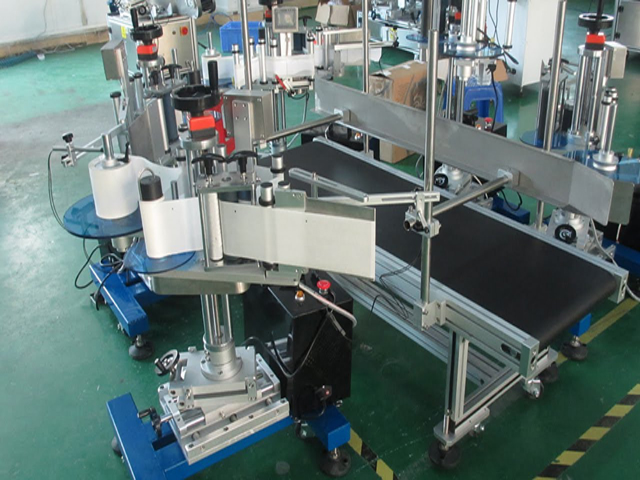

labeling boxes machine.jpg

MODEL
YX-510B
DRIVE
Step Motor
PRODUCT SPEC
Height Max:200mm
Width Max:800mm(Adjustable)
LABELING SPEED
50-80Carton/min
LABEL SIZE
H:20mm-200mm L:20-340mm
PRECISION
+1mm(Subject to your sample)
MACHING SIZE
1600x700x1100mm
WEIGHT
200kg
POWER
AC 220V 50/60HZ 250W

Configuration of carton boxes labeling machine:

No.

Name

Brand

1

Press-button

Schneider

2

Magnetic Contactor

Schneider

3

Relay

Omron

4

Motor

JSCC made in Germany

5

Bearing

NSK

6

Touchscreen

WEINVIEW

7

Fibre-optical

Autonics

8

Switching Mode Power Supply

NWELL

9

Servo motor

SNAYO made in japan

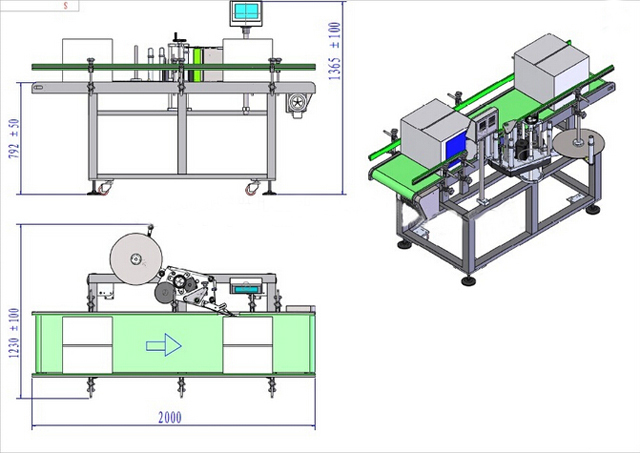

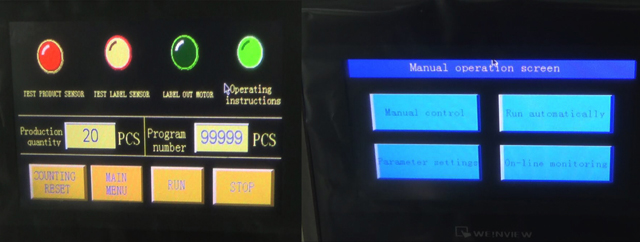

Drawing of single side flank labeling machine carton boxes labeller  with/out Touch screen controlling system:

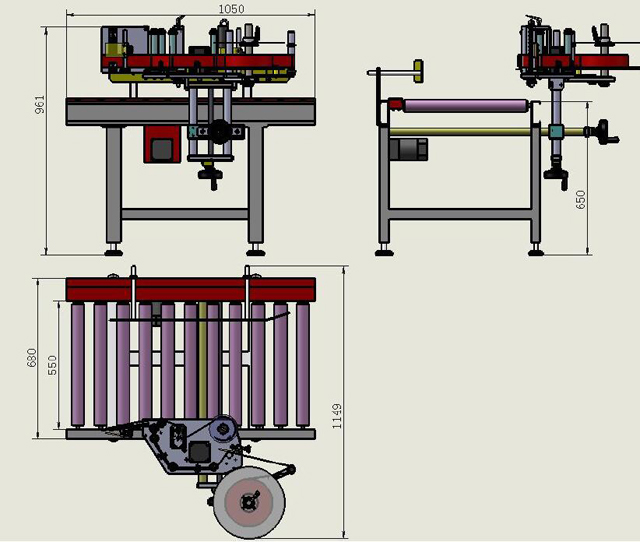

size of carton labeller.jpg

DRAWING of carton boxes labeling with touch screen.jpg

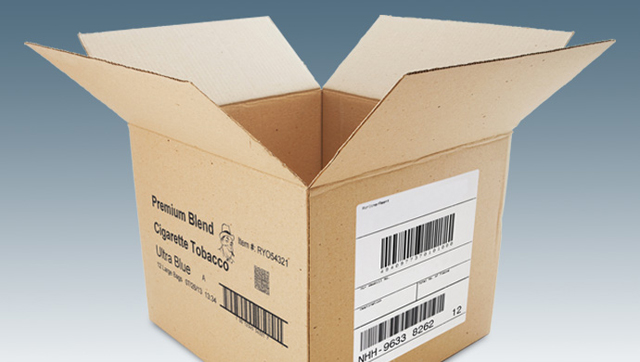

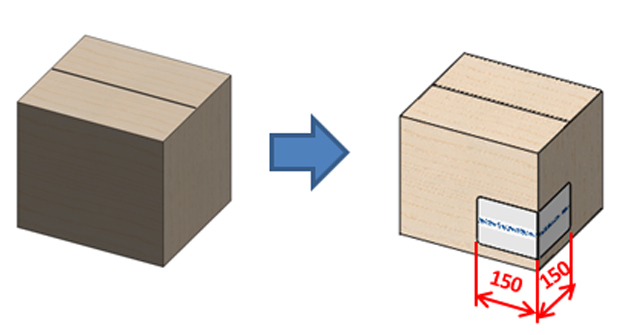

Carton boxes labeling effect :

carton for labeling.jpg

carton for labeling.jpg

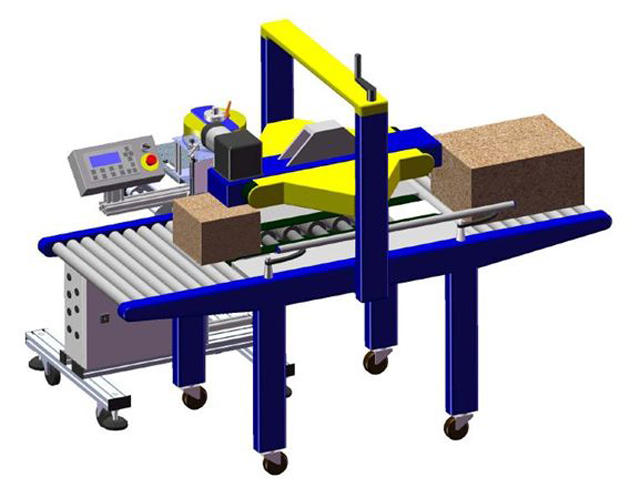

The carton labeling machine can be integrated with the carton sealing machine :

labeling machinery carton sealing.jpg
