Hardware packaging machinery electric accessories bucket chain type packing machine semi automatic manual feeding materials for snacks chips candy bagging

Hardware packaging machinery electric accessories bucket chain type packing machine semi automatic manual feeding materials for snacks chips candy bagging

Bucket chain Trailer-type packaging machine for pharmaceutical, food, cosmetic, pesticide, metal, plastic products and special products in the industry, and other loose, non-sticky particles and shaped like automatic packaging materials. Such as: herbal medicine, Chinese Herbal Medicine, cool oil, business cards, card, plastic cutlery, metal screws, and irregular shaped materials, packaging materials.

Features of model YX-240B bucket chain packaging machinery for granules:

chain bucket packing machine small electrical accessories pa

1. Trailer type packaging machine procedures: artificial feeding, automatically pull bag, bag making, filling, sealing and cutting bag, count, hot lot,etc.

2. Chinese display control system, including stainless steel box, simply set the unit is set to display the required parameters (Length of the filling bag, etc.), the control system will automatically optimize and match the actions to achieve the best packaging speed.

3. Stepper motor control, the system has high accuracy, can change the bag length precisely without having to adjust the length of other components.

4. The subject of packaging materials packaging color, get a complete trademark logo;

5. Adapt to a variety of film and foil packaging materials, good performance, low noise, seal veins clear, strong sealing.

Technical Data of bucket chain type packaging machine model YX-240B

side shot for packaging amchines.jpg

Model YX-240B
Packing Speed 30-60bag/min
 Scope of measure  1-100ml
 Bag size  (L)40-200,(W)40-110mm
 Sealing Type  3 or 4 sides/center sealed
 Power  1350w                 220V/80V/50Hz
 Machine Weight  230kg
 Packing material  Paper / polyethylene, polyester / foil / polyethylene, nylon / polyethylene, tea filter paper
Overall Size L1200×W800×H1500mm

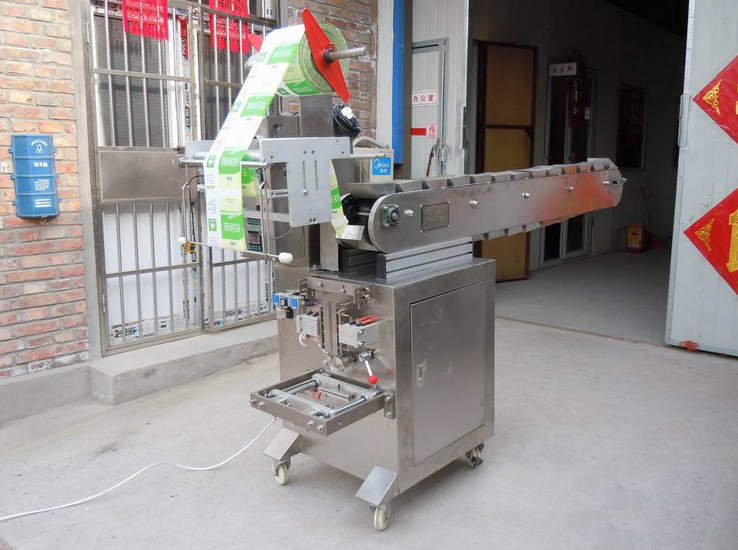

Packaging machinery close shot.jpg

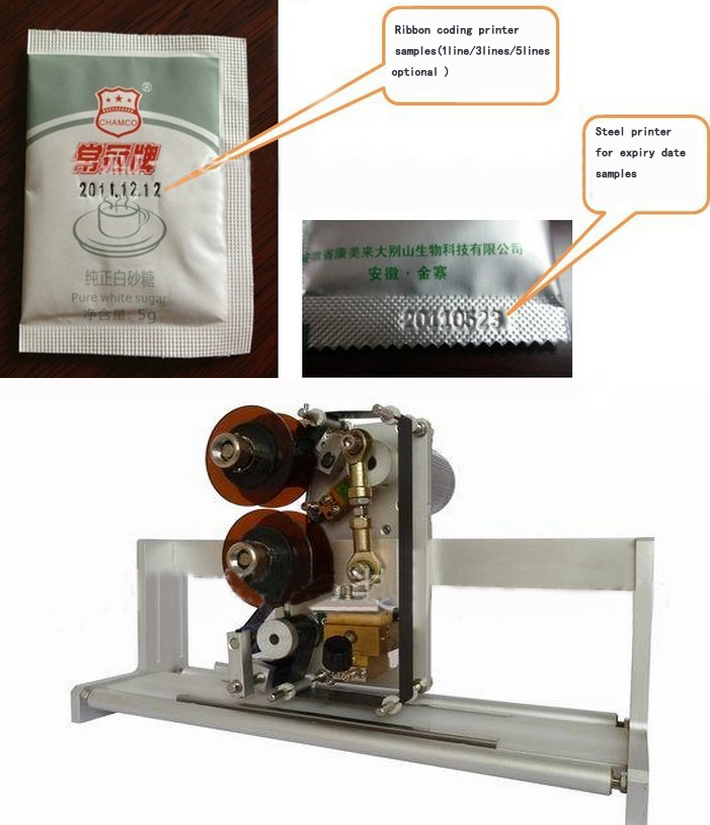

Printing function samples

printing function.jpg

Packaging samples from Model YX-240B packaging machine with manual feeding materials

samples for packaging.jpg

samples for packaging.jpg

Wooden case packaging&containering&shipping for bucket chain-type packaging machines semi automatic:

packaging about to be exported to Indonesia.jpg

wooden case packaging before shipping.jpg

After-sales service&quality guarantee for packaging machinery

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).





PENGLAI INDUSTRIAL CORPORATION LIMITED
