semi automatic filling machine

Semi automatic drying agent food granules salt sugar nuts filling packing machine with volumetric cups measuring system filler packer

Semi automatic drying agent food granules salt sugar nuts filling packing machine with volumetric cups measuring system filler packer

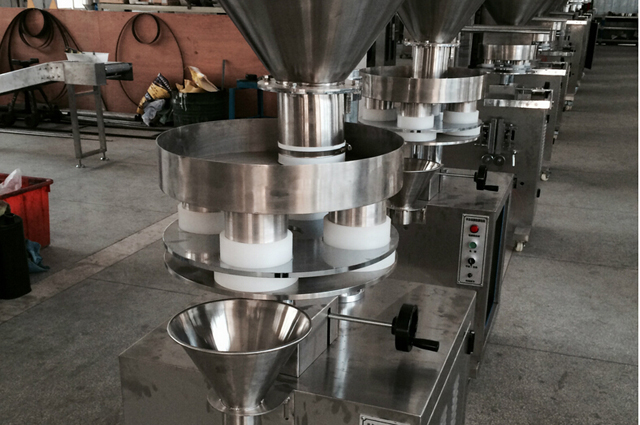

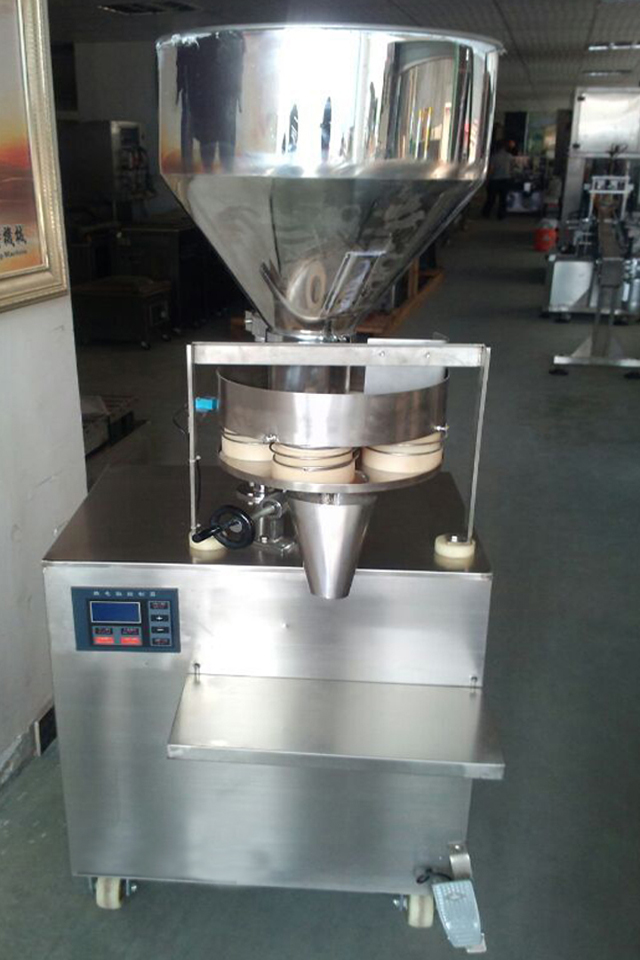

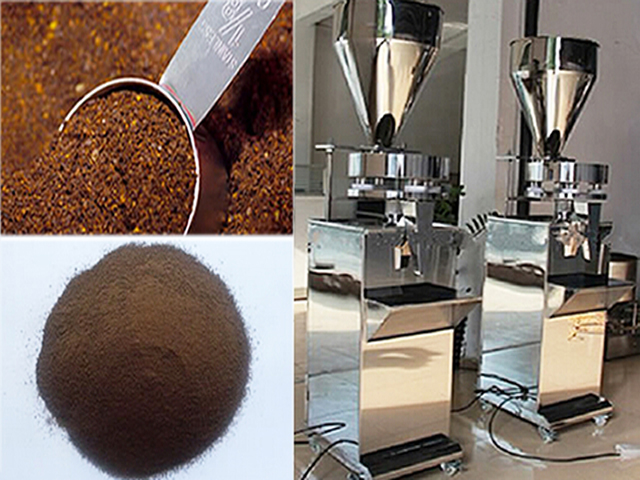

The whole machine is all stainless steel; filling use stepping electrical machine to drive; counting cup meter, material preparation; side open container, Discharging mouth aspiration, Recycling device, convenient platform. Mainly used for coffee, white sand, sugar, desiccant granular materials such as filling.

Main features of semi automatic bags bottles filling machine :

granules filling machine semi automatic (4).jpg

1 the whole machine is all stainless steel, in full accordance with GMP requirements, Corrosion resistant chemical products  packaging and filling.

2  Stable, anti-jamming, high precision weighing equipment work

3 Equipment positioning accuracy, large torque, long life, high rotation speed can be set

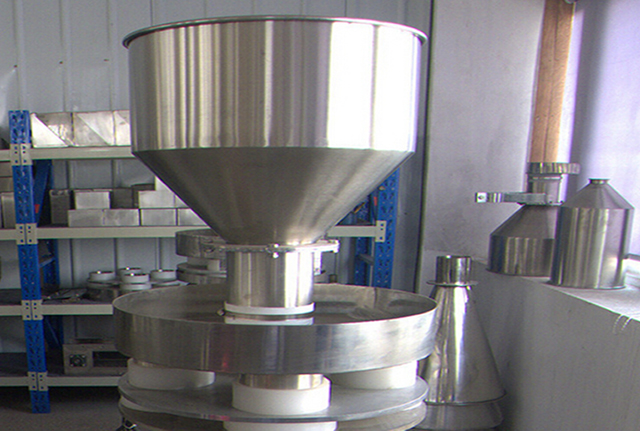

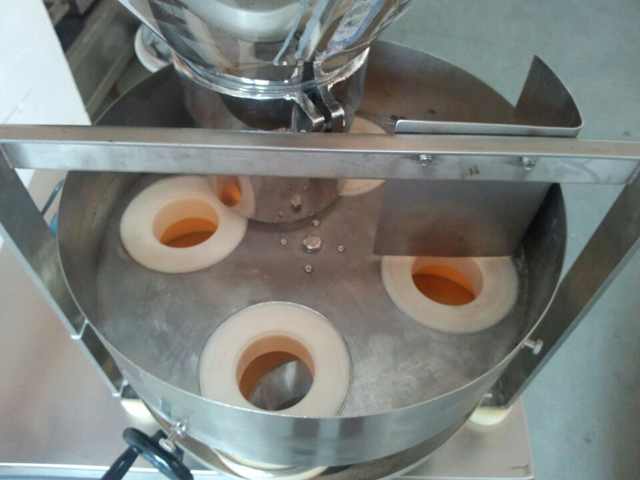

4 counting cup meter, material preparation

5All kinds of product parameters formula can be stored for later use, store up to 10.

6 equipment main part and the part contacting materials for stainless steel material

Technic data for model YX-GF01 filling machine semi automatic packing equipment:

semi automatic nut filling machines (1).jpg

customization

Yes

Model

YX-GF01

Packaging film width

40-200(mm)

Weight

200(kg)

Packing type

bag

Applicable field

Food, pharmacy, daily chemical industry

Filling precision

<2%

Dimension

740*700*1700mm

Function

filling, sealing, metering

Bag dimension

According to the  requirement of engineering

Dimension

According to the  requirement of engineering

Degree of  automation

Semi-automatic

Filling Type

Bottle  pot bag

Net weight

180KG

Volume of container

30L

Power

1.2(Kw)

Packing speed

30-60(b/m)

Packing   material

Thin film

Power supply

220V/110V/Single phase/ 50Hz/60Hz

Measuring Type

Volumetric cups

Other details for semi automatic granules packing filling machine model YX-GF01

semi automatic nut filling machines (2).jpg

granules filling machine semi automatic (2) penglai factory.

semi automatic nut filling machines (3).jpg

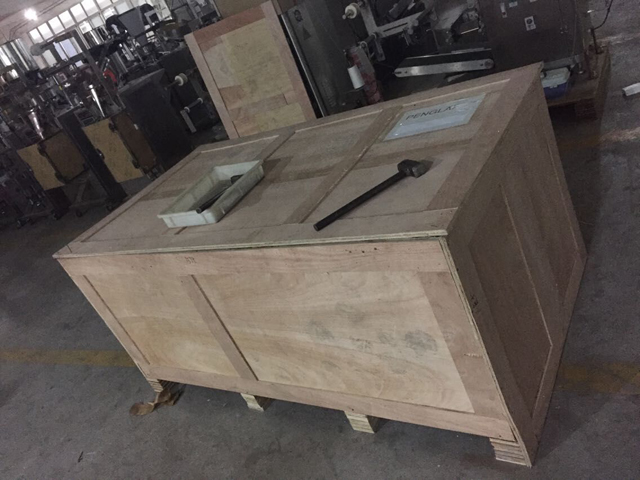

Machine packed in crate horizontally for Air Shipping

machines in wooden case horizontal (2).jpg
