toothpaste making machines

double nozzles tubes filling sealing machine fully automatic two color filler sealer plastic hose equipment

double nozzles tubes filling sealing machine fully automatic two color filler sealer plastic hose equipment

Videos of Double Nozzle lip butter Tube Filling And Sealing Machine

Main description on model YX-FS60-II filling sealing equipment

automatic_toothpaste_making_equipment_mm_05_full_automatic_f

Use rotary piston way, filling precision, using light point control, heated sealing all work with high precision

cylinder full stroke control, easy to adjust filling volume, the filling speed can be adjusted.

It applies to all kindsof composite tubes, plastic pipe and

metal pipe filling and sealing, date printing, cut the tail.

Sealing neat appearance, sealing strong, high accuracy, good stability.

According to the different material properties, Optional ingredients bucket

heating system, anti-leak filling head, Machine adopts imported PLC control, import the

original frequency control, pneumatic components using (AIRTAC),

import original (SICK) photoelectric sensors,high stability, imported hot air flow meter

and the formation of hot air heating system.

Double Nozzle lip butter Tube Filling And Sealing Machine

 Packaging materials and filling materials Scope:

1) soft tube, plastic pipe, composite pipe.

2) ointment, cream, gel viscosity fluids agents.

Double Nozzle lip butter Tube Filling And Sealing Machine

chute for tubes holders.jpg

 Applicable industries:

Cosmetics, light industry (household chemicals), pharmaceutical, food and other industries

for enterprise product selection to the hose for the packaging container, the device suitable

for ointments, creams, gels or viscosity fluid filling, and then sealing the hose tail and print

code, the system produces the finished product.

Soft tube filling and sealing machine is mainly used for the packaging containers of plastic hose material

quantitative filling, sealing, this machine is widely used in pharmaceutical,

cosmetic, food, chemical and other industries packaging. Such as ointments, gels, adhesives,

AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste

filling and sealing materials.

Double Nozzle lip butter Tube Filling And Sealing Machine

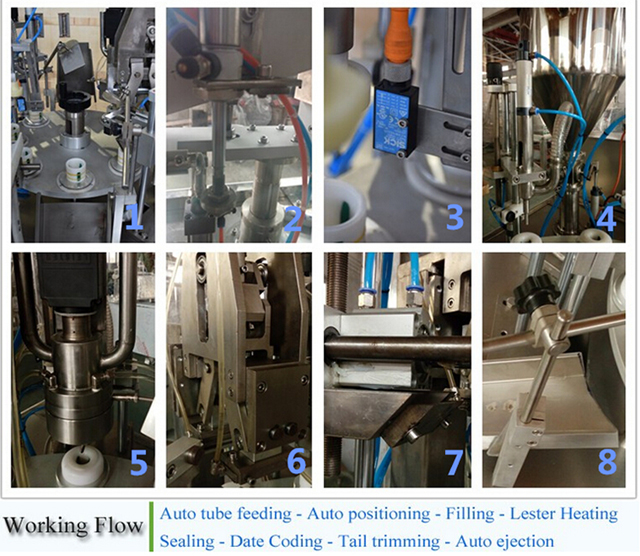

work procedure:

working flow of tube filler sealer.jpg

Automatic tube feeding→ tube position (hose container) → automatic identification label

located on pipe → → filling quantity control test + + [hose internal cleansing (option)]  → filling →

heating the tube (inner heating for plastic tube, outer heating for compound tube) →

 tail shaping and sealing → tail cutting → Print → finished discharge code

Double Nozzle Ointment Tube Filling And Sealing Machine

filling nozzles.jpg

Optional accessories:

Optional: external chiller system, water cooler

Optional: Laminated barrel insulation device

Optional: barrel internal mixing device

Optional: Alien sealing device (wave-shaped sealing device; arc-shaped sealing device; T-type punching and sealing devices, etc.)

Optional: multicolor filling system

Optional: less than 3ml / branch dedicated filling device

Optional: automatic feeding pump

Optional: finished tube output conveyor

Double Nozzle lip butter Tube Filling And Sealing Machine

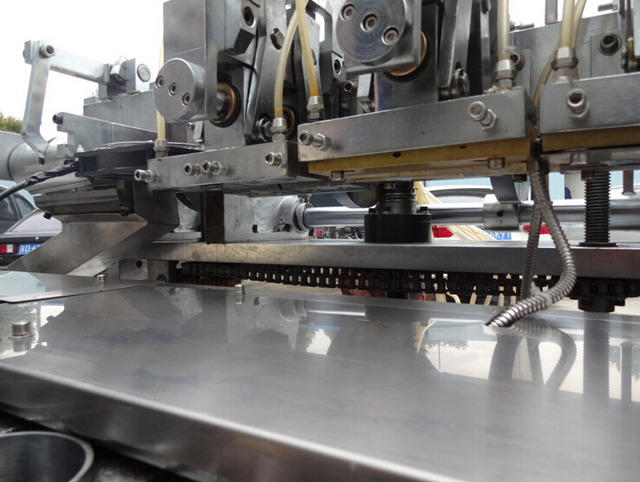

Specification of model YX-FS60-II plastic tubes filling sealing machine double heads :

sealing cutting parts for machines.jpg

  Item

 Heat sealing

Voltage

220V/380v/50Hz/60Hz

Productivity

80-100pcs/min

Filling volume

3-250 ml(customized)

Tube diameter

11-38mm(customized)

Tube length

50-200mm(customized)

Max power

7.5KW

Water consumption

3-6L/min

Machine weight

About 1300kg

Dimension(L*W*H)

2150×850×2100mm

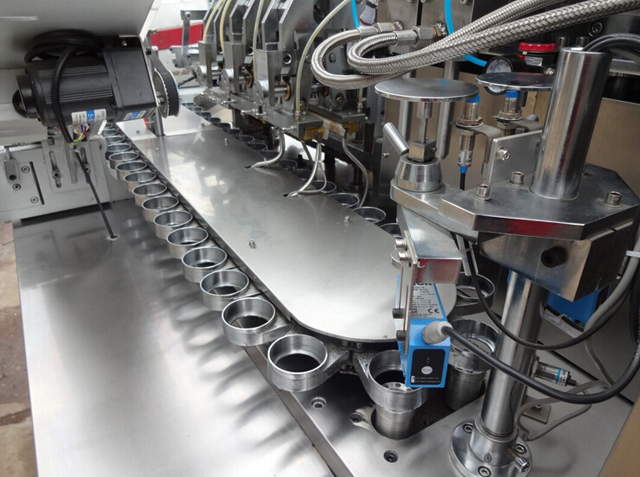

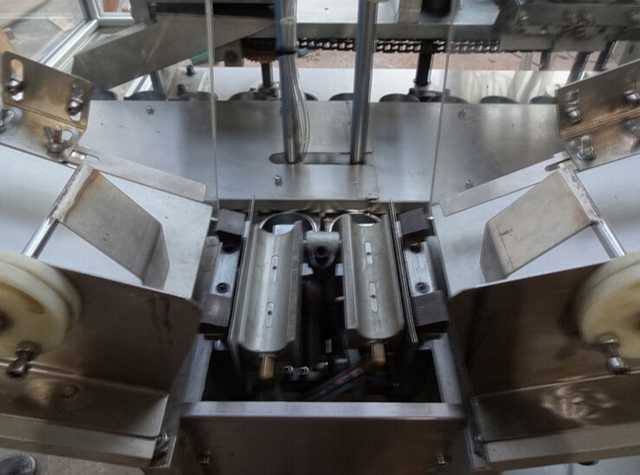

Working plate without related tubes holders

working plate for tubes filler sealer.jpg

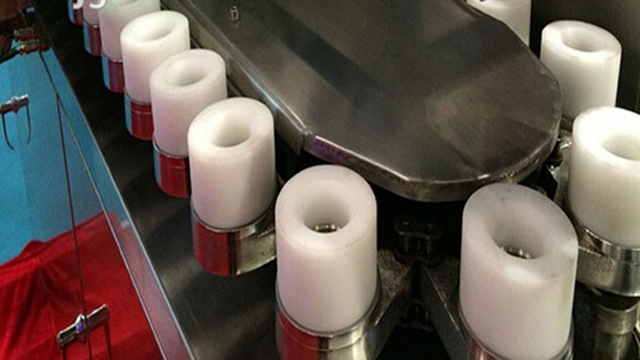

 Tube holders for filling sealing machine

tube holders.jpg

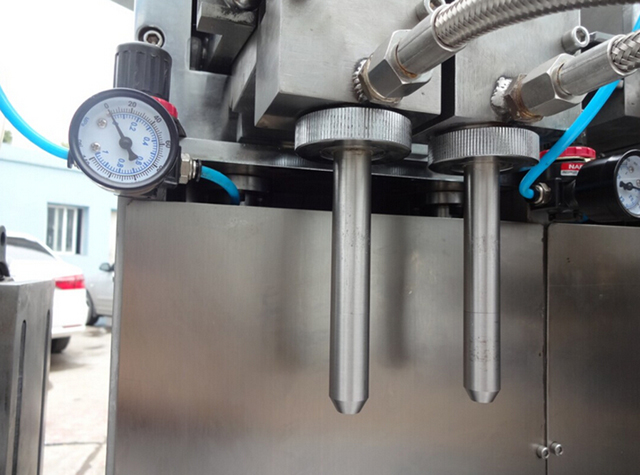

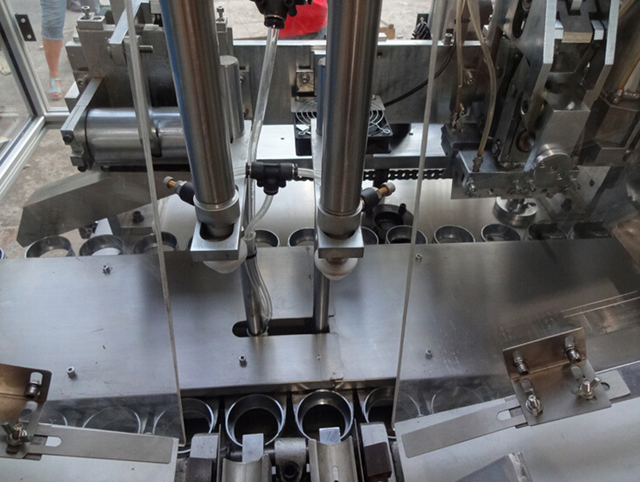

Double filling nozzles for filling sealing machine model YX-FS60-II

double filling nozzles.jpg

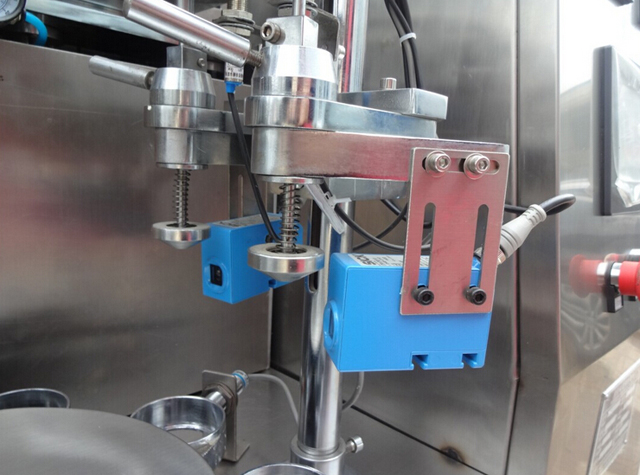

Photoelectric sensor for aligning tubes before filling sealing:

photoelectric sensors.jpg

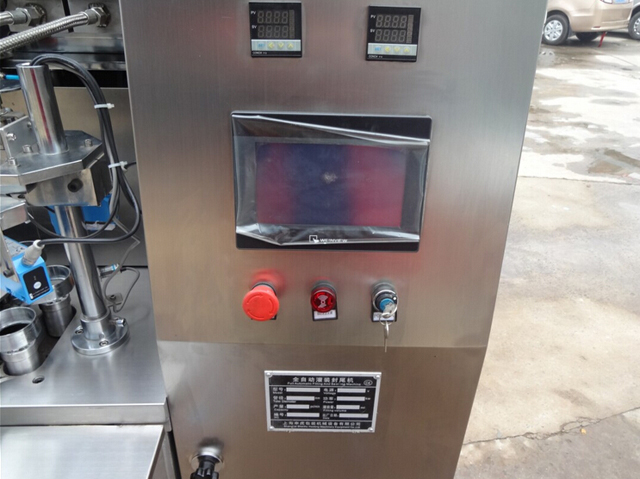

PLC controlling panel center for filling sealing machine dual heads

plc CONTROLLING panel for filler sealer.jpg

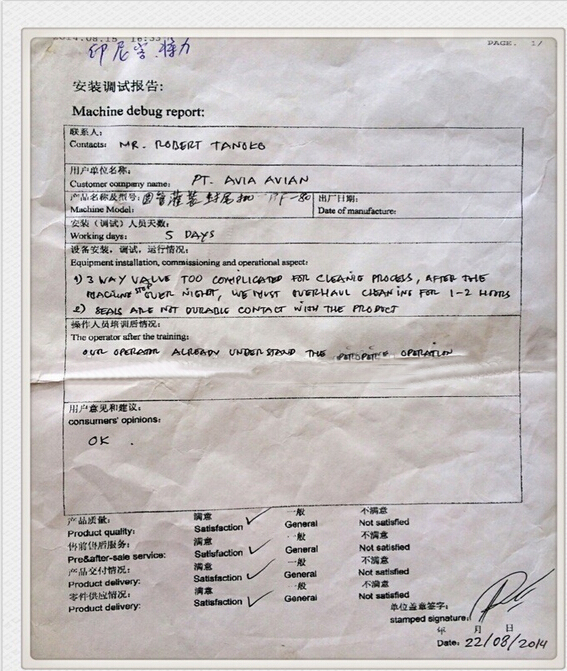

Certificate for tubes filling sealing machine

certificate report.jpg

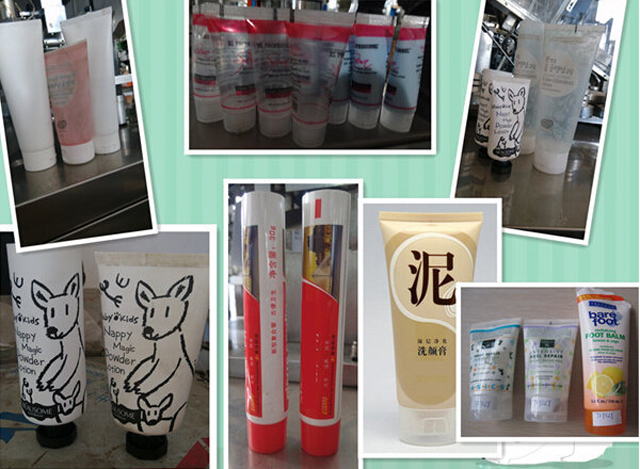

Tubes samples for different customers from various countries

toothpaste tubes samples for two heads.jpg

tubes samples.jpg

Wooden case packing before shipping filling sealing machinery overseas

wooden case packing for tubes filler sealer.jpg
