The automatic flat labeling machine is the new generation of packaging equipment. It is special designed based on the automatic labeling machine technology and technical requirements. Can make the adhesive labels stick on the bottle surface smooth and tidy. Labeling process is stable and reliable, and labeling position can reach the ideal requirements.

The automatic flat labeling machine belongs to the electromechanical integration products with reasonable structure. It is used to rolling the adhesive label on the round bottles automatically, when there is lack of bottle, the control system will stop offering the labels, which can avoid the label paper waste effectively, and can adjustment stepless according to the scale of the bottle and the label characteristics.

labeling plant.jpg

The Features of the factory price Cartons Automatic Flat Labeling Machine

1. Suitable for labeling on the flat surface of various products.

2.Controlled by the stepping motor, adopts Keyence fiber made in Japan to ensure the labeling accurate and in high quality.

3.Dispense special training, the workers can operate and maintenance the machine easily after the simple guidance. The electrical components are all standardization parts, when something is broken, you can purchase them anywhere, the daily maintenance and management are also convenient.

4. The whole machine adopts SUS304 stainless steel and T6 aluminum alloy materials, parts and components adopt standardized design, fully comply with GMP environmental requirement.

processing for flat labeling machine.jpg

The Main Parameters of the factory price Cartons Automatic Flat Labeling Machine

1. Voltage: AC110V;50/60HZ

2. Power: 180W

3. Speed: 0-240 pcs per minute (according to the size of the product and the label)

4. Accuracy: ±1mm (according to the surface evenness of the product)

5. Suitable range of the products:  Length 30mm-300mm, Width 30-260mm

6. Suitable range of the labels: Length 20mm-300mm, Width 15mm-120mm

7.Specification of the label roll: Outer diameter: 300mm, Inside diameter: 76mm

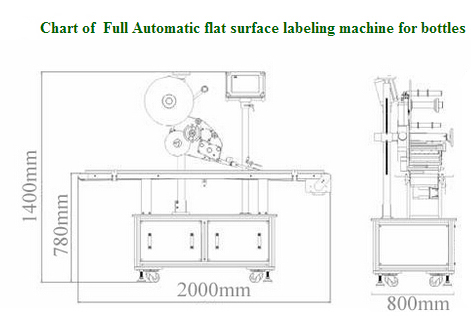

8.Overall dimensions: 2000mm×650mm×1300mm(L×W×H)

9.Weight: 250 Kg

processing for flat labeling machine.jpg

Operating Principle

When the product is put to the conveyer manually, the conveyer will send the product to the photoelectric sensor area, when the photoelectric sensor get the signal, it will feedback the signal to the system, after receiving the signal, the stepping motor will send out the label, and stick the label on the surface, another photoelectric sensor will limit the sending of the next label on time. When the bottles are sent continuously, the labels are sent out one by one, and label on the surface correctly, after stick the labels on the surface, the brush will smooth the label and ensure the labels stick on the product tightly and smoothly, then the product will be automatic output, the labeling process is finished.

labeling plant.jpg

Operation Procedure

1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.

2. Check if all the position of the labels are correct.

3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.

4. Turn on the power switch, turn on the optoelectronic switch.

5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.

6. Adjust the labeling position.

7. Ensure the test is OK, then operating the machine normally.

8. Power off.

processing for flat labeling machine.jpg

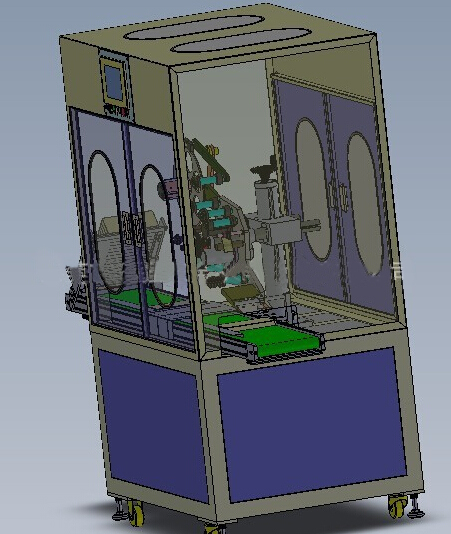

the flat surface labeling machine with protective chamber



Announcements of the label peel board Of The Photoelectricity



labeling plant.jpg



1. The machine adopts Power Supply of AC 220V. Please make sure the earth wire be connected when working and check if all the parts fixed at the right place before plug in the power supply.

2. Please pay attention that if the direction of labels is suitable for the machine. There are two working ways of labeling machine: in at the left and out at the right or in at the right and out at the left. It can be made according to customers’ requirement

3. The guide rings at the bottom of guide wheel should be at the same level, and the above guide ring should be pushed to the edge of label.

4. Ensure the labels are pulled smoothly.

5. Make sure the electric eye at the right place, or it will be crumpled when labeling.

6. Ensure the bottles sending channel is smooth.

7. Ensure the routine of labels is correct.

labeling plant.jpg

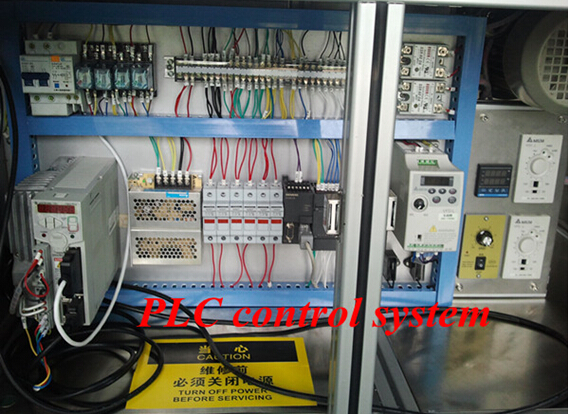

Labeling machine electrical configuration list





Name

Brand

Producing area

Fiber amplifier

Keyence

Japan

Touch screen

Weinview

Taiwan

PLC

Delta

Taiwan

Relay

Omron

China

Stepper motor driver

BMW

Joint venture

Stepper motor

BMW

Joint venture

Reducer motor

Zhongda

Zhejiang

Motor gear box

Zhongda

Zhejiang

Indicator light

Apt

Shanghai

Button

Shuangke

China

Switch power

Chuanglian

Changzhou

Motor speeder

Gaoke

Zhejiang

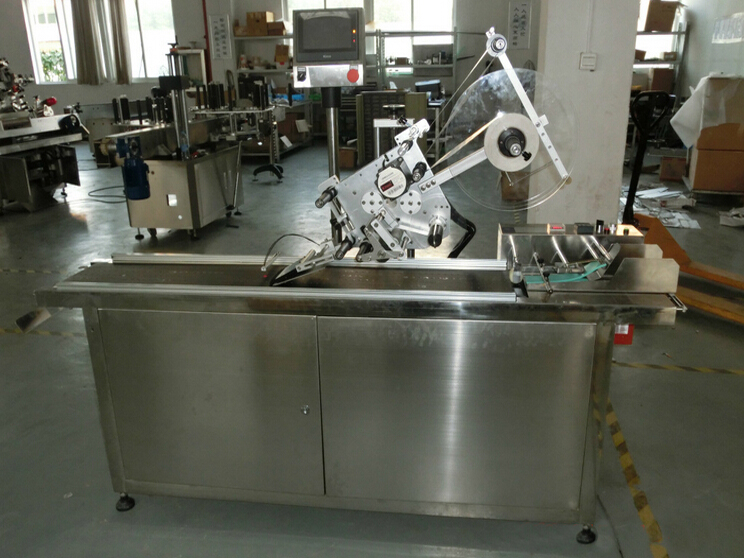

Processing for manufacturing the flat surface bottles cartons booklets labeling machine model YX-620

processing for flat labeling machine.jpg

Main Products

Liquid Filling Production Line: Oral Liquid Filling Line; Eyedrop Filling Line; Syrup Filling Line; Cosmetics Filling Line; Medicinal Liquor; Pesticides Filling Line; Special Bottled Filling Line

Table and Capsule Packaging Line: Counting and Packaging Line for Tablet, Capsule, Solid Pills, Cachou etc

Production Line Consists of: Bottle Unscrambler-Bottle Washing-Filling-Capping-Labeling(Shrink Sleeve Labeling Machine)-Boxing Machine

Specialized in various kinds of non-standard automation equipments.



PENGLAI INDUSTRIAL CORPORATION LIMITED
