fully automatic filling machine

Fully automatic bottling line 502 cyanoacrylate adhesive super glue filling capping machine rotary liquid paste filler capper equipment

Fully automatic bottling line 502 cyanoacrylate adhesive super glue filling capping machine rotary liquid paste filler capper equipment

Automatic Adhesive Glue Filling and Capping Machine

I. Introduction of YX-AB50 super glue filling capping equipment

The machine is a newly designed adhesive machine for adhesive factory ,which is mainly used for of super glues in plastic bottle packing. The bottles are inserted to the seat automatically by the vibrating try. For material feeding, it applies self-suck device to inhale material and begin filling. The caps are put on also by a lectromagnetism shaking tray. A specialized motor is used to screw caps which ensures a suitable screwing thickness. There are 16 bottle stations to finish all functions during rotary. The whole machine is controlled by PLC system and the operations are done by the touch screen, fully automatic from bottle feeding to bottle exit. Therefore, it is very popular among the chemical and glue industry.

II. Working Process of rotary glue liquid filling capping equipment

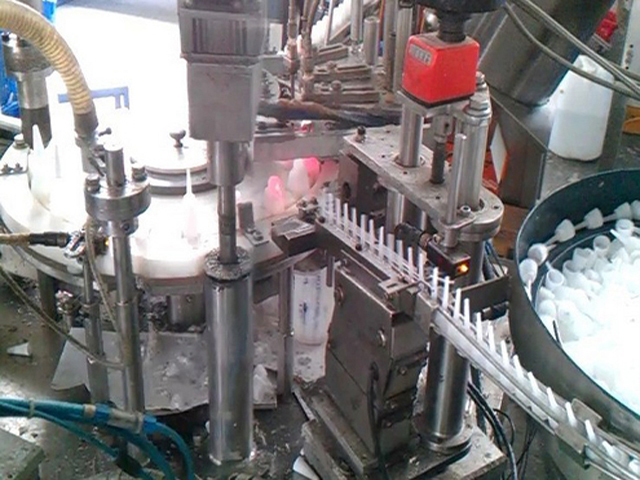

details of filling capping.jpg

Step 1. Bottles get into moulds automatically by a vibrating try

Step 2. The machine will fill glue into the bottle in self-suck

Step 3. The machine puts the inner cap on the bottle

Step 4. The machine will screw the inner caps automatically

Step 5. Finishing cap screwing, the bottle exit from seat automatically

Step 6. Another operator press the external cap on the bottle.

III. Features and Performance of Automatic Adhesive Glue Filling and Capping Machine

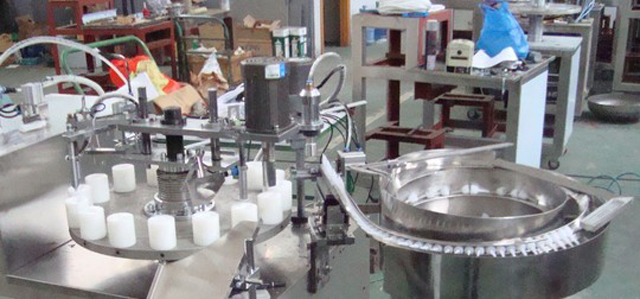

close picture for filling capping.jpg

1.The machine structure is fully mechanical which ensures a high working speed and steady operation, reducing the failure rate greatly.

2.The machine is fully automatic from bottle feeding to finished bottle exit

3.PLC controller. The operation system is more steady

4.Vibrating disks are applied to deliver bottles and caps in order.

5.Specialized motor is used for cap screwing. The thickness is set properly

6.The production capacity can be realized and controlled automatically.

7.Speed shall be adjustable by converter and normal speed is around 40pcs/min

8.High quality stainless steel panel

9.Human-machine interface with direct display and control.

10.The automatic mark detecting the bottles. It will fill when detecting the bottle, if no bottle, the material will not flow.

11.Before bottle exit station, there is another detector. When it checked the the cap screwing is finished, the bottle will exit automatically. If the cap-on and cap screwing fails, the machine will stop as a signal to prevent a waste of material and sprinkle.

12.Touch screen panel

13.High-viscous material will have a hopper system.(optional)

IV. Technical Parameter of model YX-AB50 Automatic Adhesive Glue Filling and Capping Machine:

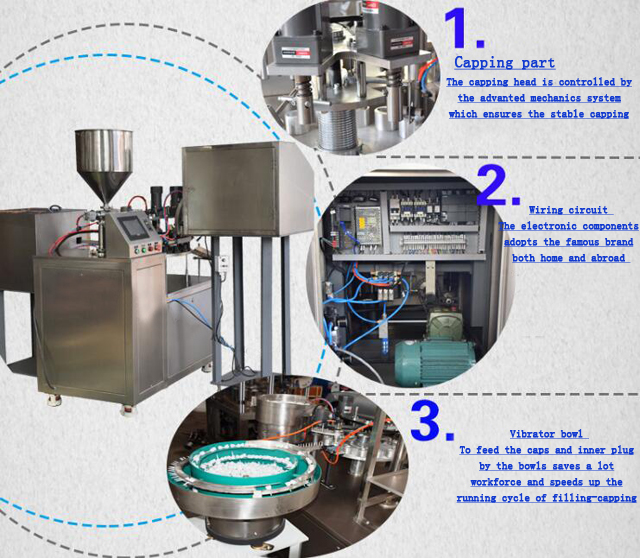

super glue filling sealing.jpg

Model

YX-AB50

Power Supply

220V/50Hz/single phase

Power Rate

1.5KW

Air pressure

0.2-0.4MPa

Filling Range

20g, 50g, 100g

Filling Precision

≤±1℅

Filling capacity

40~50pcs/min

Bottle diameter

Φ15~(mm)

Dimension

1200mm×1000mm×1700mm

Weight

400kg

Samples for 502 Glue

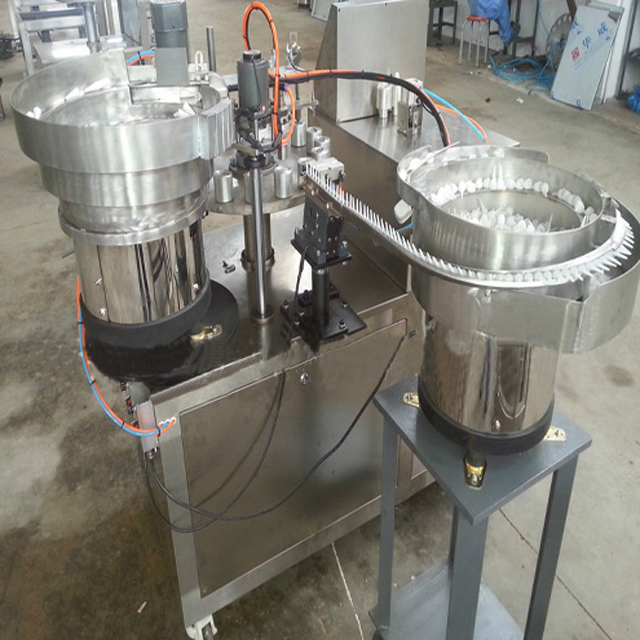

502 filler capper.jpg

502 filler capper.jpg

Packaging&container loading before ocean shipping

holding tray for tubes.jpg

After sales service for 502 SUPER glue filling capping machine filler screw capper

filler capper super glue.jpg

packaging wooden case.jpg

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage,

negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)



Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker

to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be

on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.



After sales service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.

The cost should be in your account.(as above).
