Rotary tablet press machine automatic powder tabletting equipments pharmaceutical medical making machinery

Rotary tablet press machine automatic powder tabletting equipments pharmaceutical medical making machinery

At present, numerous industries are involved in the production of powder/granule into various solid shapes and forms, for reasons of upgrading quality, production efficiency, and lot. "Tablet Press" realizes to make tablets/pellets from powder by compression. There are 2 types of press machines, "Eccentric type press" and "Rotary press". Nowadays, "Rotary Press" is much popular in the industries, because it facilitates High Production performance with narrow weight variation. Also "Tableting Automation system" is designed with "Dedicated ancillary equipments".

Tableting process
"Rotary Press" has been called "Tablet press", because it is very popular in Pharmaceutical industory. "Rotary Press" has a turret, on which lots of tooling (Punches and Dies) are installed. The press handles 3 processes in production, "Powder Filling" "Compression" "Tablet discharge" continuously while the turret is in motion. That is to say, powder is filled to die from the top of the machine. Powder is automatically, by simple mechanic, filled into die bore and pressed into the correct form. Formed products are discharged to outside with knock-off finger.
The machine is widely used in pharmaceutical, chemical, ceramics, foodstuff , electronics, plastics and powder metallurgy industries , etc. This machine is suitable for pressing round tablets form various kinds of granular materials, and can be also used to press irregular tablets of different geometrical shapes

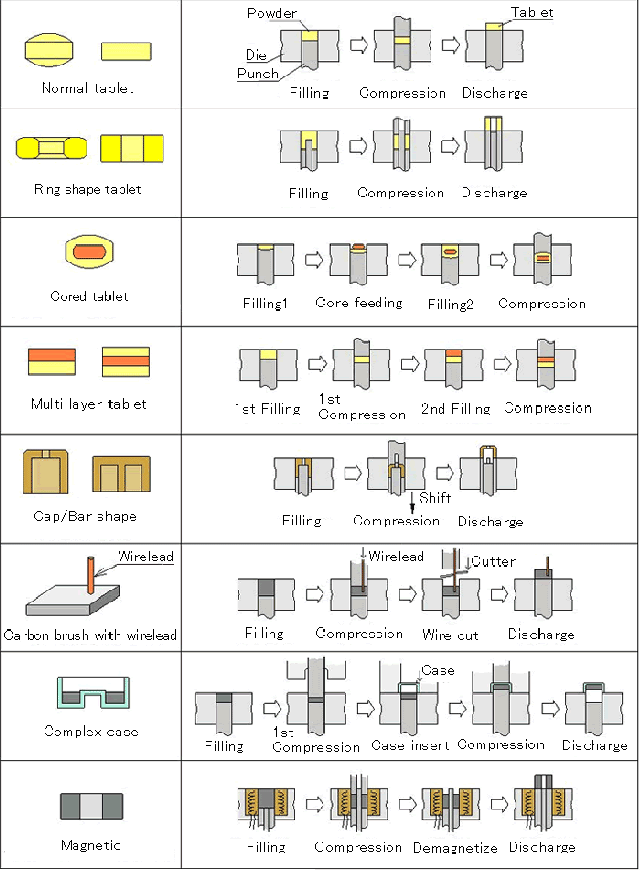

application of tabletting machine.tif
basic parameter of model YX-PR series rotary tablet press machine:

Main technical data of rotary tabletting machine :

tablet press machinery.jpg

rotary tabletting equipment.jpg

data

type

YX-PR05

YX-PR07

YX-PR09

dies

5 set

7 set

9 set

max pressure

40 KN

max dia of tablet

13

max depth of fill

15 mm

max thickness of tablet

6 mm

turret speed

32 r/min

production capability (p/h)

9600

13440

17280

power

1.1 KW

overall size (mm)

650*480*1150

weight

260KG

The flow of tablet press process :

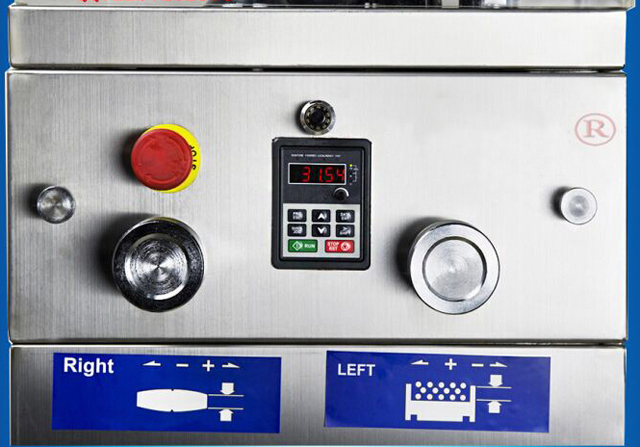

control panel for tablet press.jpg

Tablet press flow.gif
Maintenance on rotary tabelt process machine :
Major controls and the one-shot lubrication system are easily accessed through the hinged front and rear panels. Since there are no moving parts in this area these are not interlocked, therefore adjustments can be carried out safely while the machine is in operation.
Lubrication
All major lubrication points are served by the one-shot lubrication system. Oil cups are provided wherever continuous lubrication is required.
Overload and Pressure Release
Effectively, the safety valve of the machine, this is fitted to the lower pressure roll. The overload pressure release should always be set to relieve the pressure with minimum effort consistent with the diameter and hardness of the tablets being made. Adjustments are easily made from the lower cabinet. Serious damage to both the machine and the punches can be prevented through proper use and maintenance of this system.
Motor Overload
Any appreciable motor overload that may occur due to tight punches etc. is indicated on an ammeter fitted to the control panel. The average amperage in normal running (tableting) condition is to be noted. Any increase in this average should be immediately investigated.

Machine in stock :

machinery in stock.jpg
