ultrasonic sealing machines

Ultrasonic tubes plastic laminated soft tube sealing machinery semi automatic ultrasound sealer equipment manual

Ultrasonic tubes plastic laminated soft tube sealing machinery semi automatic ultrasound sealer equipment manual

Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply etc. With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.

Two working principle:

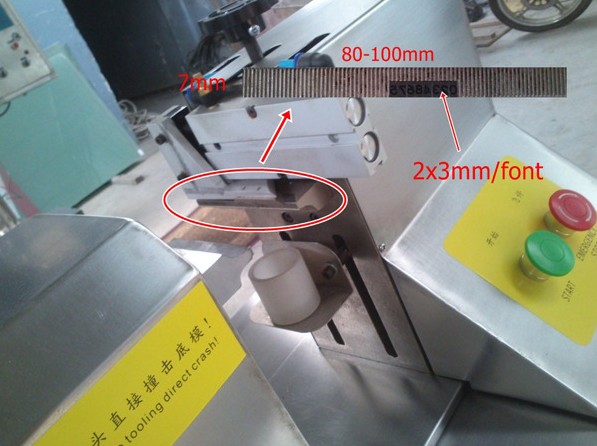

coding function from ultrasonic tubes sealer.jpg

Utilizing the energy produced by c high-speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last .

Machine Advantage:

coding function from ultrasonic tubes sealer.jpg

1. Two dimensional adjustment of work piece platform, it is easy to operate.

2. It adopts Taiwan cassette mechanism and circuit Lines, using famous brand of Ultrasonic parts.

3. Overload protection, phase separation protection, power-fail protection.

4. Large Ultrasonic Out put power to ensure the sealing quality of various specifications of tube.

5. It can sealing soft tube also can printing date and cutting.

coding function from ultrasonic tubes sealer.jpg

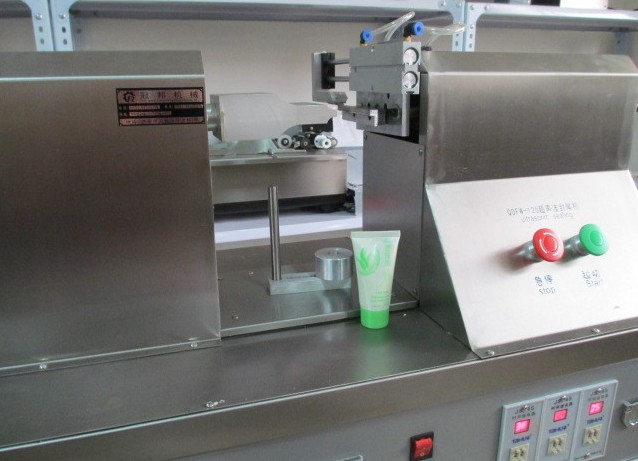

the ultrasonic tubes sealing machines with base support

coding function from ultrasonic tubes sealer.jpg

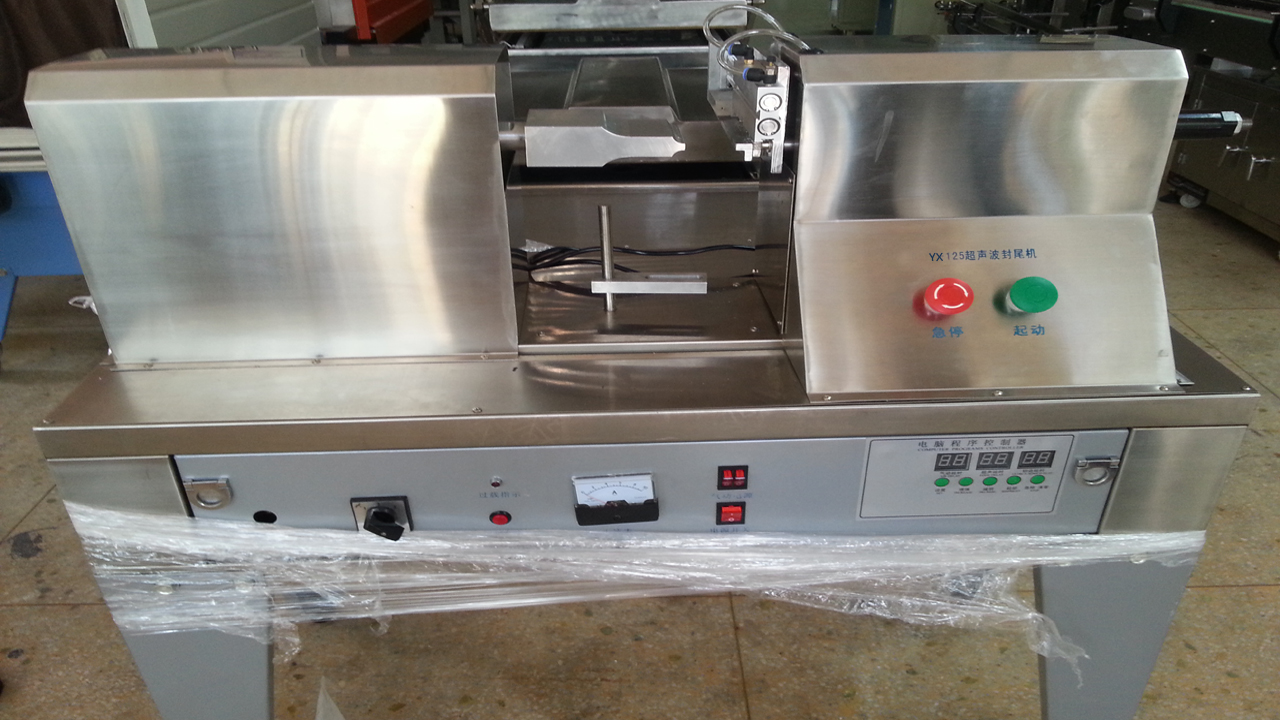

the ultrasonic tubes sealing machines without basic support




Technical parameter of Model YX-125 Ultrasonic tubes sealing machines:

coding function from ultrasonic tubes sealer.jpg

Environmental temperature

0°C +35°C

Environment humidity

relative humidity below 85%

Working Height 0-300mm(Can be Customized)
Air pressure 0.2----0.6 MPa
Maximum output power 1250W
Tube height 50~180mm
Tube diameter F5~F50 mm
Working table vertical/horizontal adjustable worktable
Ultrasonic working frequency 20kHZ
Weight 100kg(Gross weight)





Configuration parts constituting ultrasonic tubes sealing machines model YX-125



spare parts for ultrasonic sealing.jpg

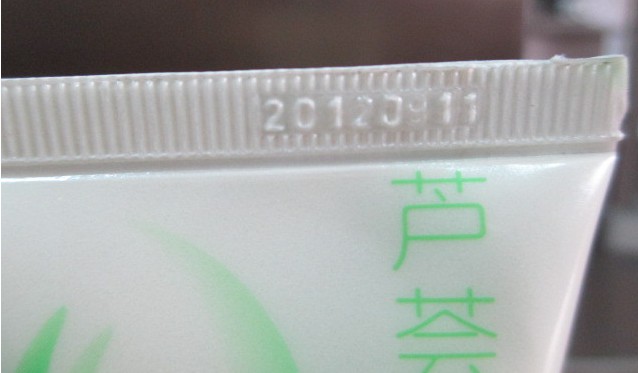

Samples for tubes sealed by ultrasonic tubes sealing machine model YX-125

coding function from ultrasonic tubes sealer.jpg



After-sales

coding function from ultrasonic tubes sealer.jpg

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Our machines undergo an extensive and strict testing and quality control procedure, ensuring each and every item purchased

meet global quality standards.

♦Payment Methods♦

These payments of T/T, L/C, Western Union, MoneyGram,Paypal are accepted. If you have any problem with the payment,

please leave a message to us.

♦Logistics♦

DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company. Please leave a message to us.

♦Tracking Number♦

Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it,

please leave a message to us.

♦Feedback♦

Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company.

 If you have any problem with our products, please leave a message to us.

♦Refund♦

Any damage or shortage of our goods when you receive your items. Please take some photos for a witness.

We will deal with it in 24 hours. Frequently, we will send a new part of items for alternative and heavy-damage,

Before refund is accepted, please leave a message to us.
