semi automatic sealing machines

horizontal plastic bags sealing machine semi automatic vertical sealer equipment manual sealing machinery PE film bags

horizontal plastic bags sealing machine semi automatic vertical sealer equipment manual sealing machinery PE film bags

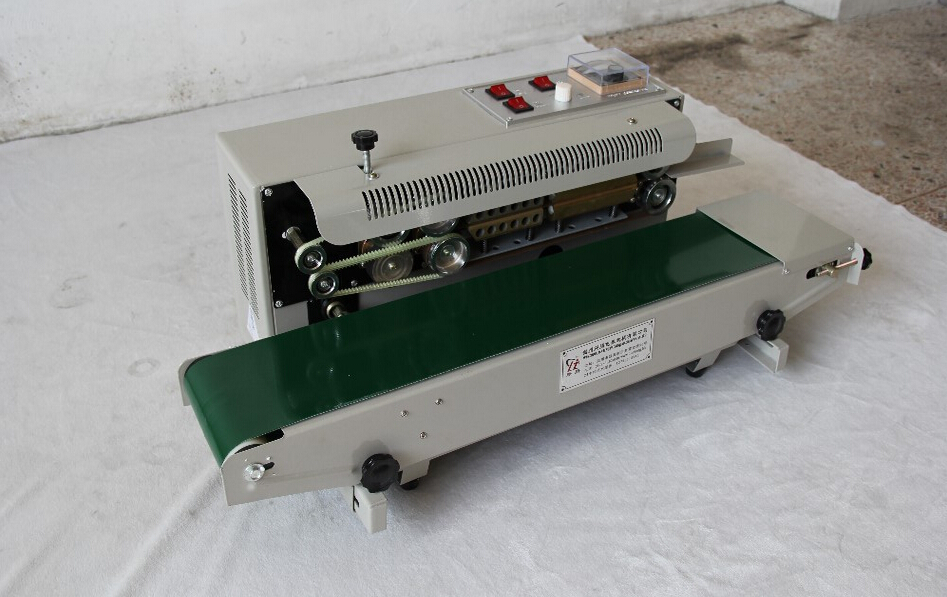

YX-H1000 type Horizontal sealer automatic film sealing machine sealing machine sealing machine automatic sealing machine

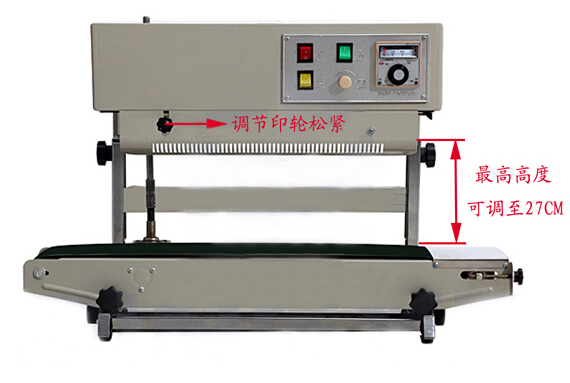

YX-V1000 type Vertical sealer automatic film sealing machine sealing machine sealing machine automatic sealing machine



Device Name: Continuous Sealing Machine
Equipment Model: YX-H1000 (new, with emergency stop switch); YX-V1000 (new, with emergency stop switch);
sealing equipment semi automatic.jpg

sealing machine manual.jpg
Equipment Introduction
YX-H1000 series automatic plastic film sealing machine adopts electronic constant temperature control and automatic conveying device can control a variety of different shapes of plastic film tape, in a variety of packaging lines supporting the use of sealing length is unlimited. The sealing machine can be equipped with wheels and embossing printing wheel, with the need to replace the fonts can be printed on the seal while the date of manufacture, shelf life, shelf life and other signs, sealing and marking legible and beautiful patterns. Printing can be a complete seal, date, batch number with the need to replace, easy to use, in line with article Food Sanitation Law. The automatic film sealing machine for pharmaceutical, pesticide, food, cosmetic, lubricating oil and other industries foil bags, plastic bags, composite bags sealing, the sealing device has a solid, high efficiency; simple and compact structure, small size; shape appearance, advanced technology, low power consumption; operation and easy maintenance, etc., is an ideal sealing machinery. The machine can also be horizontal, vertical and horizontal, floor multi-purpose, horizontal with dry goods packaging sealing; vertical for liquid goods packaging sealing.

sealing machine manual.jpg

Technical parameters of continous bags sealing machinery:

sealing machine manual.jpg

Model YX-H1000 Horizontal plastic bags sealing machine

Operation: Electronic variable speed
Temperature control: electronic thermostat control
Printing method: Stamps
Power: 220V/50Hz 500W
Seal products speed :0-12m / min
Seal products Thickness :0.02-0 .80 mm
Seal width :6-10mm
Sealing length: 0 - infinity
Transporting loads: <5kg
Temperature range :0-300 °C
Dimensions: 810 × 370 × 320mm
Weight: 28kg(refered on horizontal model)

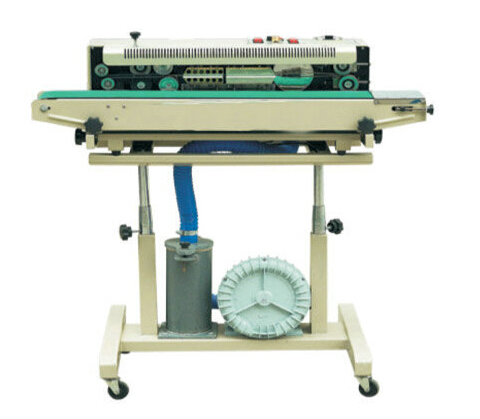

Optional equipment for horizontal/vertical plastic bags sealing machine with gas inflation system



sealing machine manual.jpg

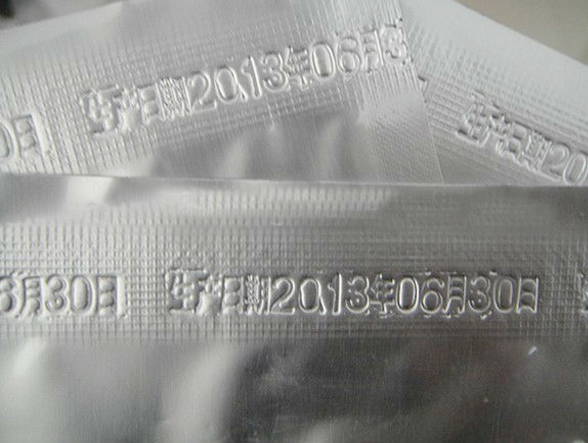

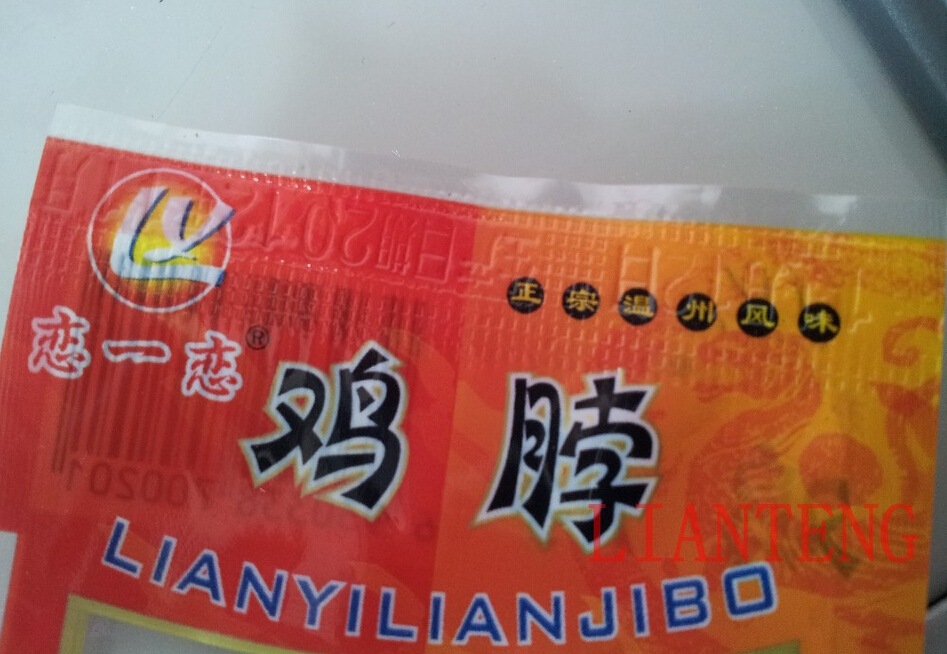

Samples for sealing from horizontal/vertical plastic bags sealing machines

samples for plastic bags sealer.jpg

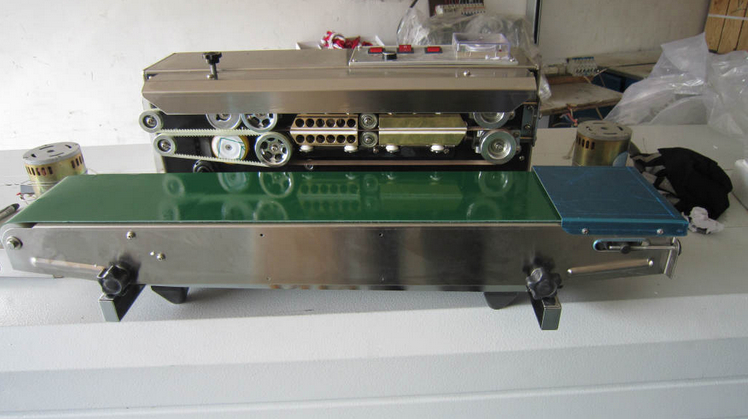

stainless steel printer samples

sealing machine manual.jpg

Ink printing coding for shelf date samples



sealing machine manual.jpg




After-sales service



samples for plastic bags sealer.jpg


Guarantee: for all the machine, it claims one year for guarantee.

(Excluded from the warranty are problems due to accidents, misuse , misapplication,

 storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and

test the machine and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account

and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine

as soon as possible. The cost should be in your account.(as above).

PENGLAI INDUSTRIAL CORPORATION LIMITED
