Company news

Plane surface perfume bottles labeling machine semi automatic tested run for Mid-east customer

Our Dubai custmer ordered our plane bottles  labeling machine for their perfume bottles labeling
after getting the labels rolls and bottles we tested them  with our machine labeler model YX-LM510.

IT works  perfect with our machines .below is the basic information for this transaction business:

Picture of samples sent from customer about labels&bottles

bottles and label rolls sent from customer in Dubai.jpg

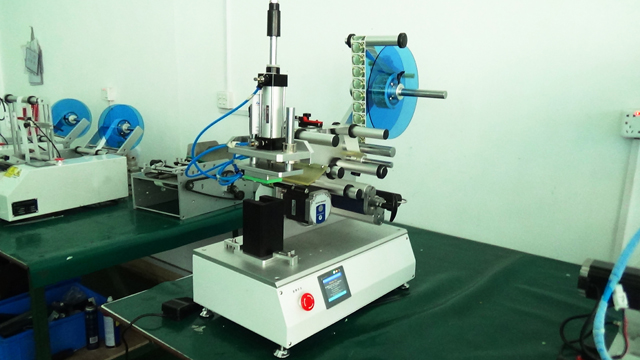

Videos of testing run on labeling machine semi automatic plane bottles labeler model YX-LM510

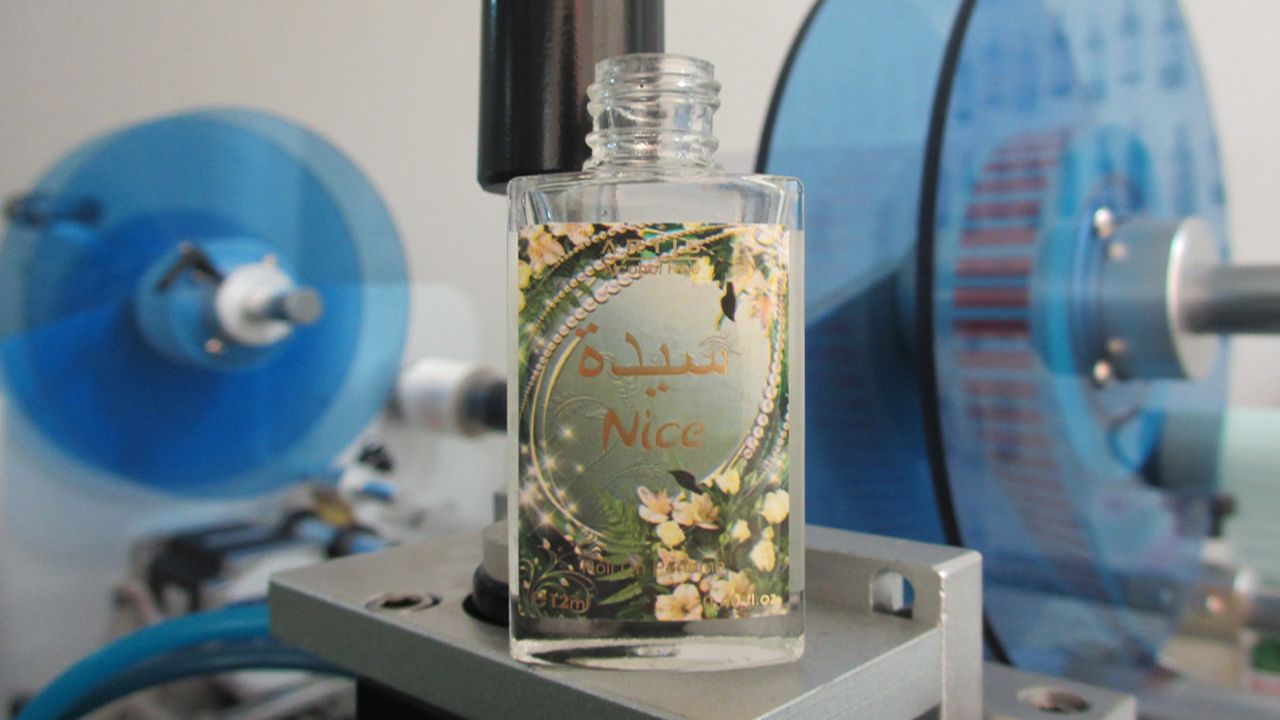

Final products of labels on the bottle

youtube for labeling machines.jpg

Below is the basic information on semi automatic labeling machines for perfume bottles آلة وسم زجاجات العطور



Flat labeling machines semi automatic with PLC screen manual plastic bottles labeler equipment máquina de etiquetadodesigned and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like Flat labeling machines semi automatic with PLC screen manual plastic bottles labeler equipment máquina de etiquetado and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.

In order to meet the needs of small business, factory to save labor, but also improve the quality of product label, especially the development of mini type semi automatic labeling machine, labeling process to achieve automatic operation, simple operation, fast production speed, uniform labeling position, beautiful, neat; applicable to pharmaceutical, chemical, food and other industries planar container, or a cambered surface vessels.

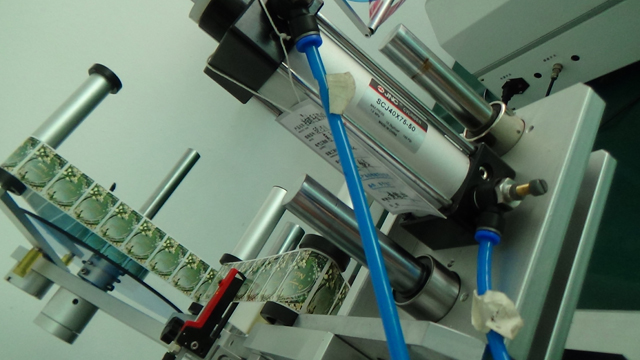

Working principle

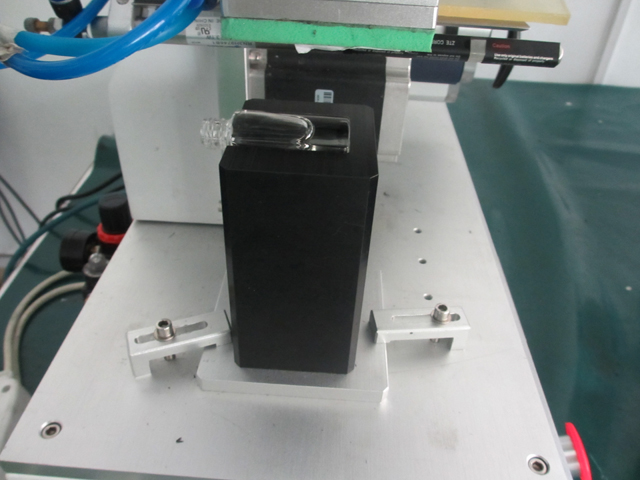

mould for labeling machines.jpg
The different packing object in labeling machine platform, press start switch, comprises a radiation calibration device label spit into the vacuum chuck, the pressing mechanism of the label to a bottle.
Product features
1,Process: manual Bottle Labeling - products.
2,This machine specially profiled in the product labeling, and for a variety of specifications of bottles and lids, wide applicable range.
3,For customers to custom-made mold, more convenient to use.
4,Pedal type touch emergency stop switch to ensure production safety, smooth operation.
5,Simple operation, anyone can easily operate fast using this device.
6,A label synchronous positioning mechanism, to ensure the positioning accuracy of 0.5mm in positive label.

mould for labeling machines.jpg


Main technical parameters of Flat labeling machines semi automatic with PLC screen manual plastic bottles labeler equipment máquina de etiquetado:
Model YX-LM510
Working speed 1-50m/min
Labeling accuracy ±1mm
Labeling max width 120mm(Be designed and produced according to customer requirements)
N.W. 30KG
Label inner diameter Φ76.2mm
Label outer diameter Φ350mm
Machine size 1000×400×650mm
Using power 220V 50Hz 300W

mould for labeling machines.jpg

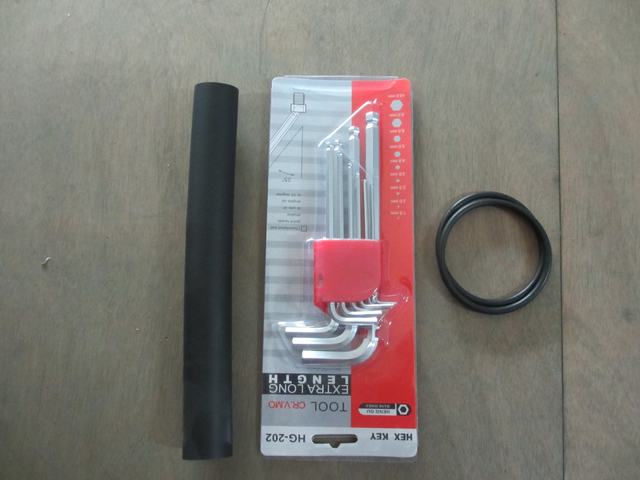

Spare parts together with model YX-LM510 semi automatic labeling machines



mould for labeling machines.jpg



mould for labeling machines.jpg

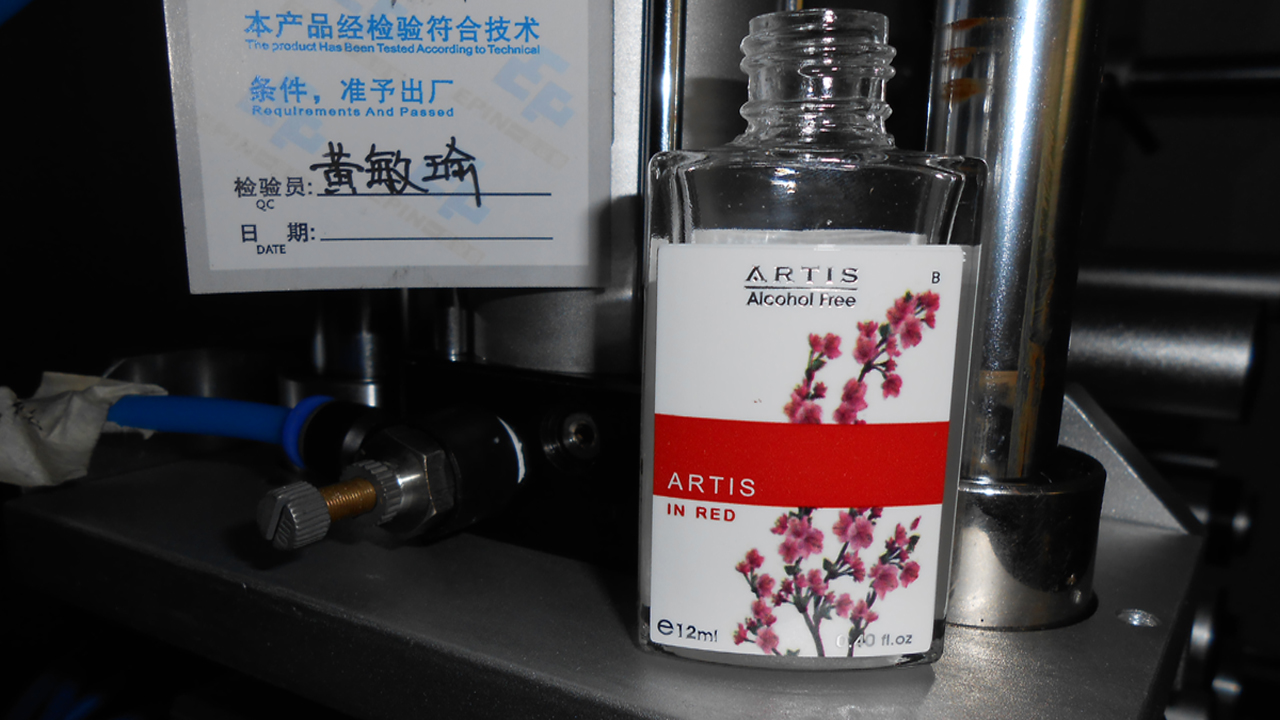

Final products for checking labeling effect on the perfume bottles



youtube labeling machines .jpg

Packaging of labeling machine for exporting to foreign customers

Saudi arabia PACKAGING FOR SYRINGE LABELING EQUIPMENT (1).jp

wooden case packing for filling capping powder.jpg

After sales service for labeling machinery semi automatic

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence,

or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine

and also training your worker to operating the machine

 (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country)

 should be on your account and you need paid for the technician

 USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to

 fix the machine as soon as possible. The cost should be in your account.(as above).

PENGLAI INDUSTRIAL CORPORATION LIMITED
