liquid filling machine

0.2ml-20ml peristaltic pump pharmaceutical medical liquid aseptic filling machine E-liquid Cigar small filler equipment Abfuellmaschine kleine

0.2ml-20ml peristaltic pump pharmaceutical medical liquid aseptic filling machine E-liquid Cigar small filler equipment Abfuellmaschine kleine

This liquid filling machine is widely applied in filling of majority of liquids(for example:various drugs,

chemical reagents,oils,skin lotions,beverages,and other particle-free liquids).

It is especially suitable for the clean filling with high precision and free of secondary pollution.

♦Key Features♦

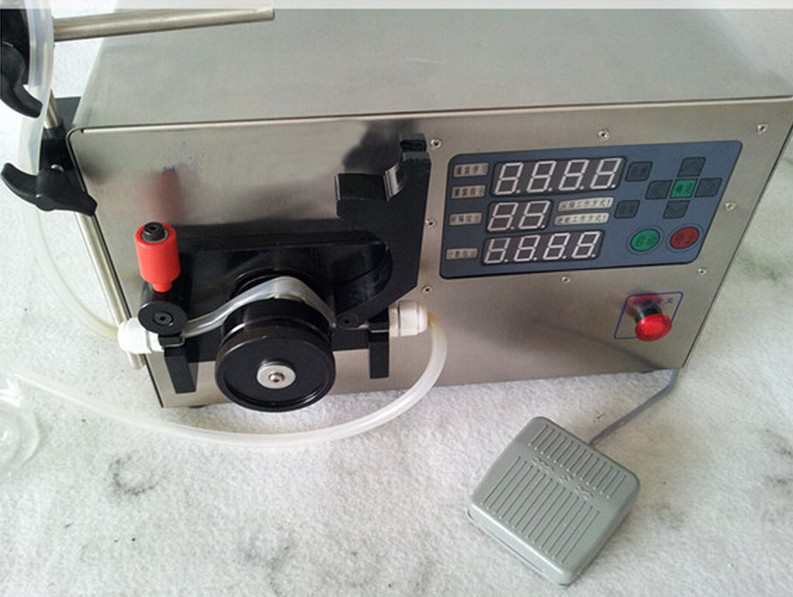

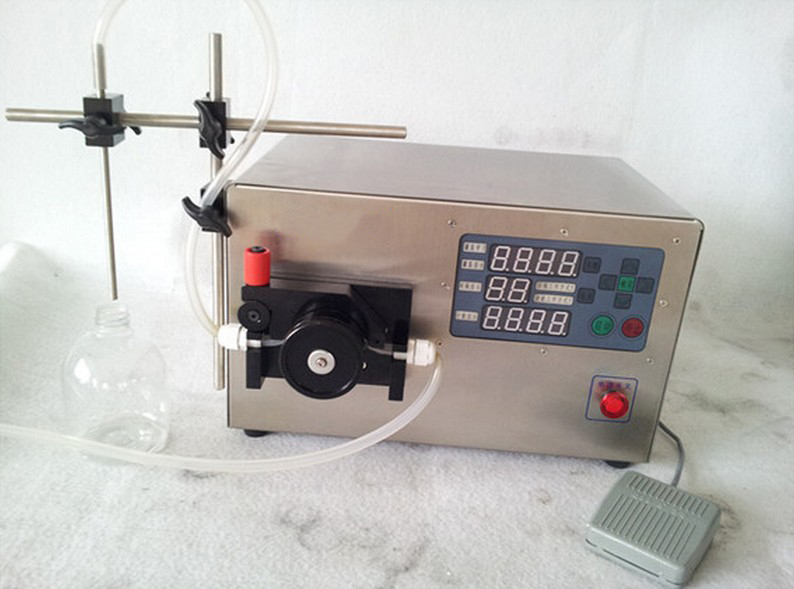

liquid filler equipment.jpg

1)Compared to traditional filling equipment,this machine has teaching and learing function

which makes operation easier.

2)This machine uses high quality components and materials,integrate microcomputer control

technology,which makes this machine work more reliably

3)High Filling precision

4)High cost performance

Advantage of Model YX-PF01  peristaltic pump pharmaceutical medical liquid aseptic filling machine E-liquid Cigar small filler equipment Abfuellmaschine kleine

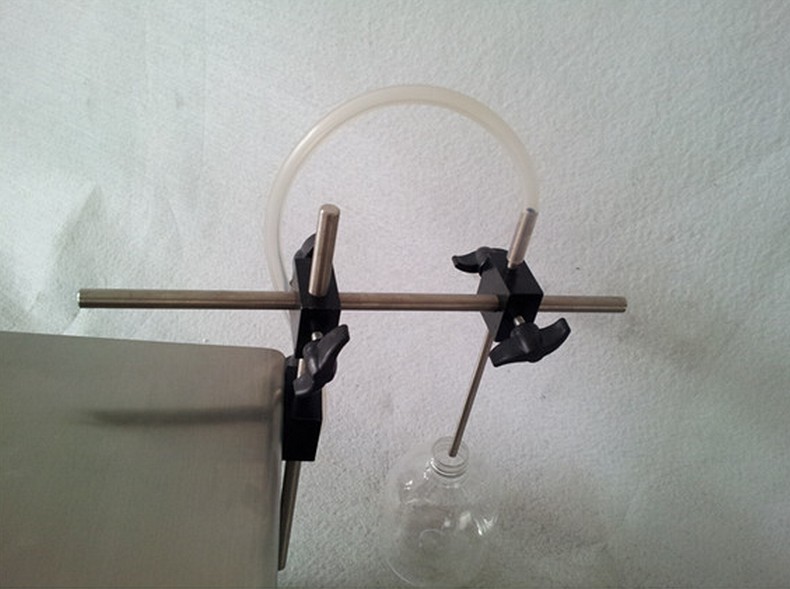

filling nozzles for glass bottles.jpg

The filling machine peristaltic pump filler elevates peristaltic filling technology into a smooth, seamless process in which the sterile product comes into contact with only the FDA approved silicone tubing and filling needle.

When the process is completed, the tubing can be easily cleaned, or treated as a disposable, to eliminate contamination and facilitate the clean-up validation process.

The peristaltic filling System provides a cost efficient solution for handling small and medium sized batches.  The range of precision for peristaltic filling systems spans

from stand-on-unit to filling systems with up to 16 drives and filling needles controlled by a single master control.  Filling volumes are from 0.1 ml to more than one litre.

Basic parameter of model YX-PF01 Peristaltic pump filling machine high precision:

bird view for liquid filler.jpg

Model YX-PF01

Power

0.1kw

Size

350x400x300MM

Filling Head

1

Filling Capacity

0.2-20ml

Bottle Height

5-80mm

Bottle Diameter

3-50mm

Net Weight 32kg

Filling Accuracy

+-1%





Notice items when operating model YX-PF01 One head peristaltic pump filling machine



FILLING MACHINES.jpg



►Check valves must be vertical downward, otherwise affect accuracy

►filling head must be vertical downward,otherwise affect leakage material.

► Line corner shoulds not be too small, or affect flow and accuracy.

►Raw material barrel liquid height difference shoulds not be too big, otherwise affect accuracy.

►Volatile liquid please use in the circulation of air environment.

►Unfavorable use together with high frequency wave machine

►Unfavorable use together with big load equipment.

►Filling special liquid must inform the factory to meet the different feeding and discharge tube.

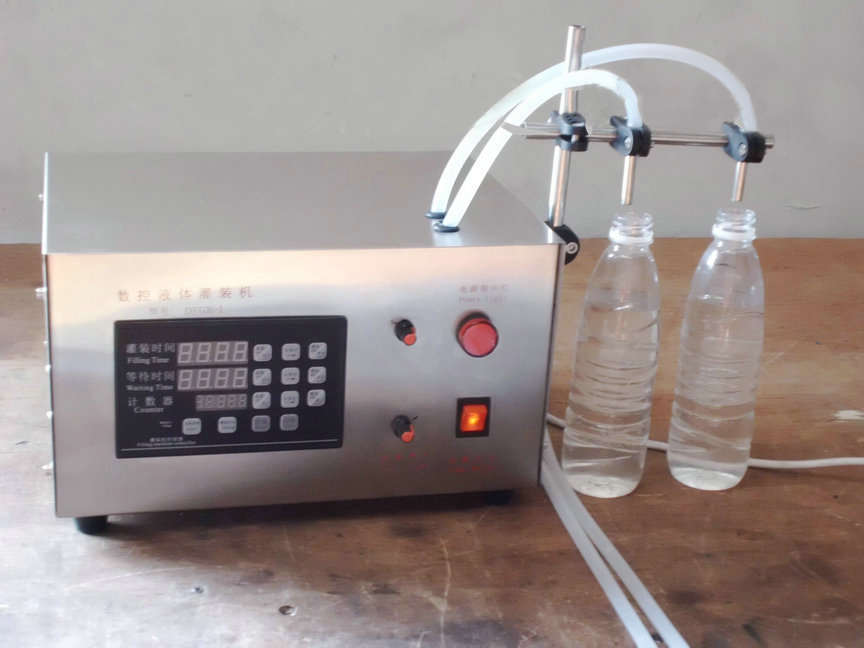

Double heads peristaltic pump liquid filling machine model YX-PF01

double heads peristaltic pump filler.jpg

Filling samples&bottles E liquid from Peristaltic pump filling machine semi automatic

e liquid bottles.jpg



Paper cartons packaging for peristaltic pump liquid filling machines



paper carton case packaging equipment filling.jpg

♦Payment Methods♦

These payments of T/T, L/C, Western Union, MoneyGram,Paypal are accepted.

If you have any problem with the payment, please leave a message to us.

♦Logistics♦

DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company.

Pleaseleave a message to us.

♦Tracking Number♦

Tracking number will be informed within 2-3 work days after delivery goods.

If you have any problem with it, please leave a message to us.

♦Feedback♦

Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in

our company. If you have any problem with our products, please leave a message to us.

 ♦Refund♦

Any damage or shortage of our goods when you receive your items. Please take some photos for a witness.

We will deal with it in 24 hours. Frequently, we will send a new part of items for alternative and heavy-damage,

Before refund is accepted, please leave a message to us.

Besides the peristaltic pump filling machines we often export magnetic pump filling machines semi automatic

to the global markets .Below are some cases as a reference :

1.high precision small magnetic pump liquid filling machine semi automatic liquid filler Juice perfume

2.high precision liquid filling machine perfume juice pharmaceutical solution filler magnetic pump

3.double heads liquid filling machine magnetic gear pumps semi automatic perfume juice oil filler
