Oven drying equipments

12meters rotary drying tunnel for washed bottles sterilizer tunnel high temperature heating oven drier sterilizing equipment

12meters rotary drying tunnel for washed bottles sterilizer tunnel high temperature heating oven drier sterilizing equipment

model YX-D12 12meters rotary dry tunnel for washed bottles&jars

with circulatory betl heating system

Application of rotary drying system

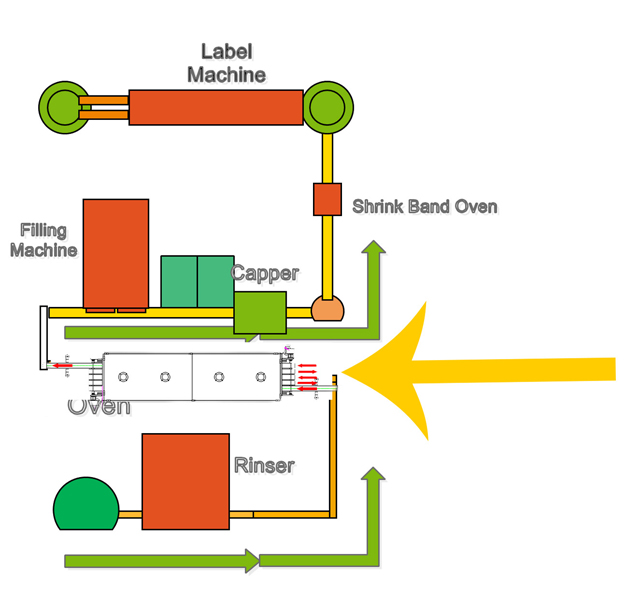

switch direction with belt height 902mm.jpg

1. chemical material,medicine tablet or pill,such as watered pills,water-honey bolus,honeyed bolus,condensed pill and Tibetan pill,etc.

2.all kinds of teas,herbs, flowers, green leaves,etc.

3.various dried meat, like beef, pork, chicken,duck, fish etc

4. powder for various material,such as spices, other food additives

5. agricultural products,such as china date,nuts,grains,peanut,etc

6.snakefood, such as melon seeds,photo chips,etc.

The principle of  microwave drying

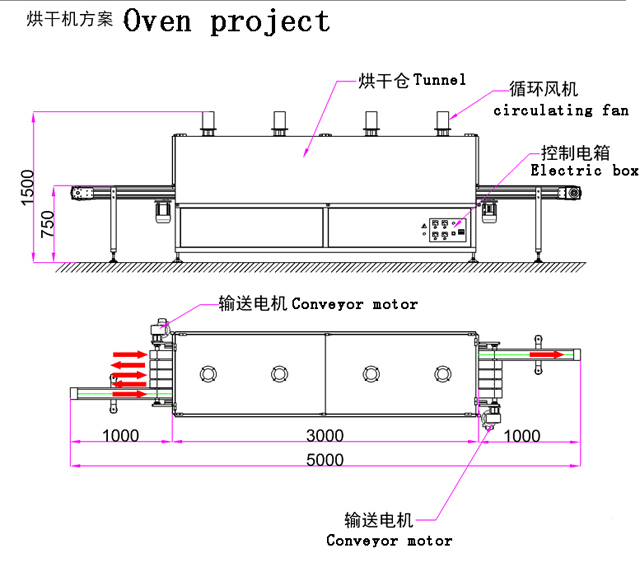

project for oven.jpg

Microwave is a sort of electromagnetic wave which frequency is 300MHz to 300GHz .The water molecule in medium materials is polar molecule,under the effect of the rapid change of electromagnetic field,its polarity orientation will alter with the changes of the external electric field with the high-speed,causing the movement and friction of molecule.so that the microwave field energy can be converted to heat energy in medium to rise the temperature of materials.accomplishing heating ,puffing and a series of physical and chemical processes ,and so ,microwave heating is achieved.


Main technical parameters:

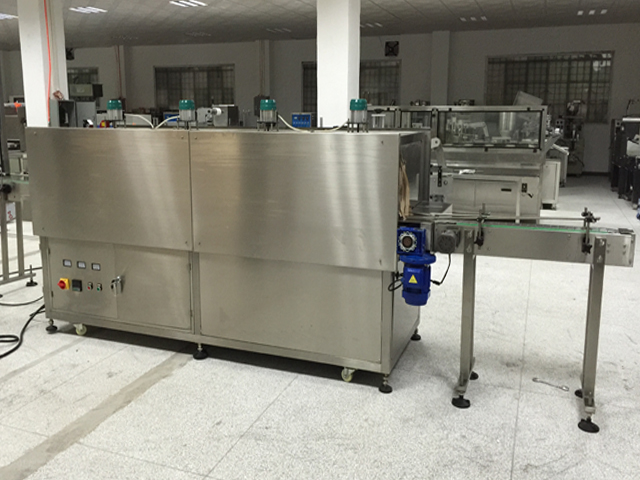

oven tunnel rotary.jpg

Power supply

380V±10%  50HZ±1%

three-phase five-wire

Microwave Output Frequency

2450±50MHz

Microwave input apparent power

≤28KVA

Microwave output power

≥20KW

Microwave power adjustment range

0-30KW(adjustable)

Ambient temperature

-5-40C

Relative humidity

80%, Surrounding

environment:no corrosive gas,

conductive dust and explosive gas

Overall dimension(L*W*H)

9400*840*2050 mm

Transmission speed

0-10m/min(adjustable)

Height of the inlet and outlet

60 mm

Microwave leak

accord with a country GB10436-89

standards(<5 mw/cm^2)

Equipment safety

accord with GB-5226

Electrical safety standard

accord with a country GB16798-1997

Food machinery health security index

Machine detailed pictures

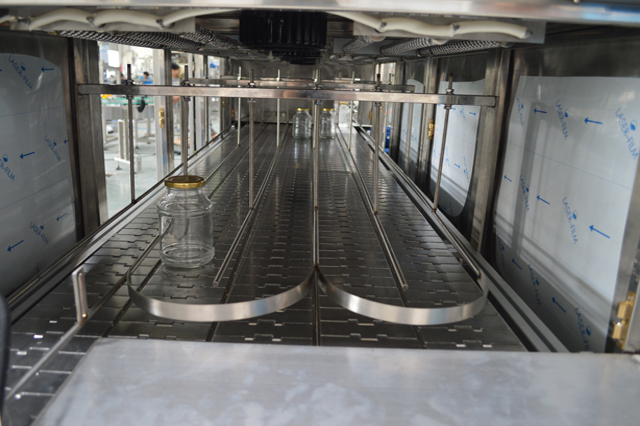

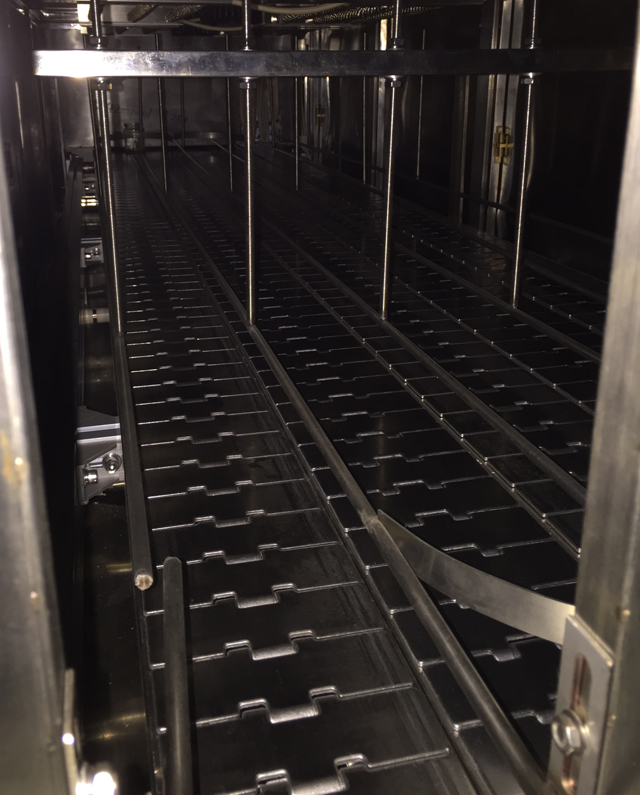

inside tunnel.jpg

inside drying machine.jpg

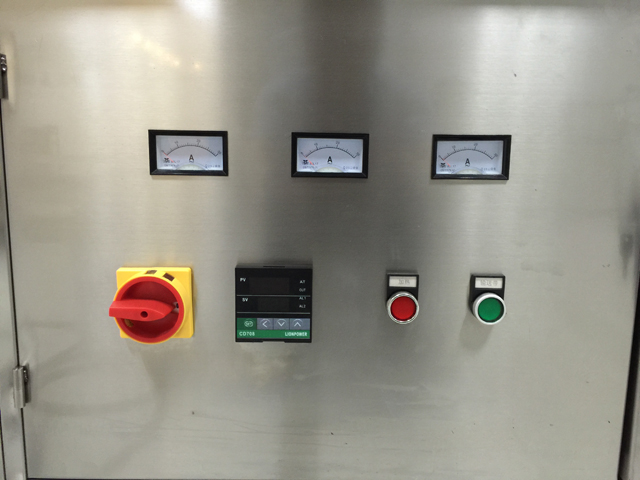

control panel for oven tunnel.jpg

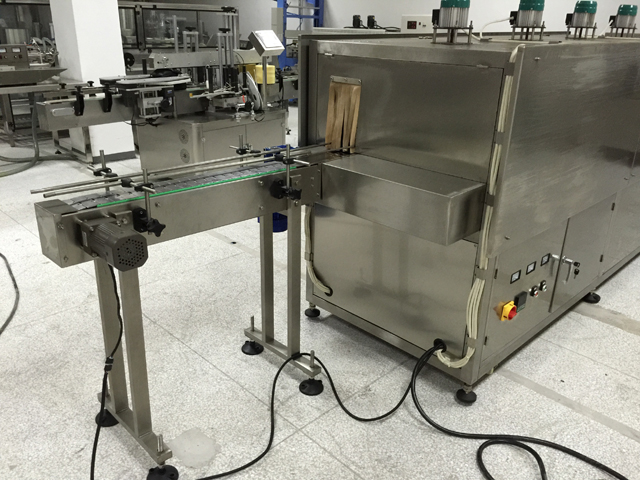

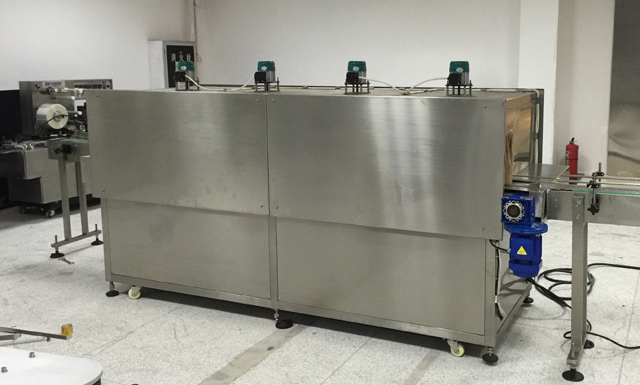

oven tunnel rotary.jpg

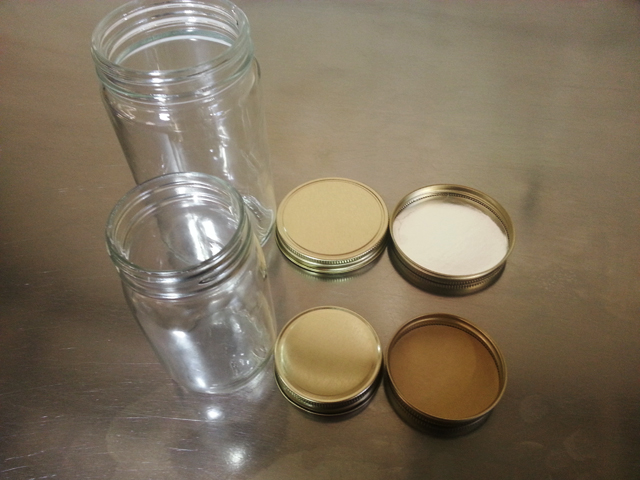

Final product as samples from filling line automatic

jars glass bottles.jpg

 glass jars.jpg

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).

wooden case packing.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
