fully automatic labeling machine

Six color flexographic printing machinery automatic PTP foil plates Flexo printer máquina de impresión de etiquetas

Six color flexographic printing machinery automatic PTP foil plates Flexo printer máquina de impresión de etiquetas

Six color flexographic printing machine automatic labels PTP foil printer equipment máquina de impresión de etiquetas model YX-FP320-06 designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like labels printing machinery and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

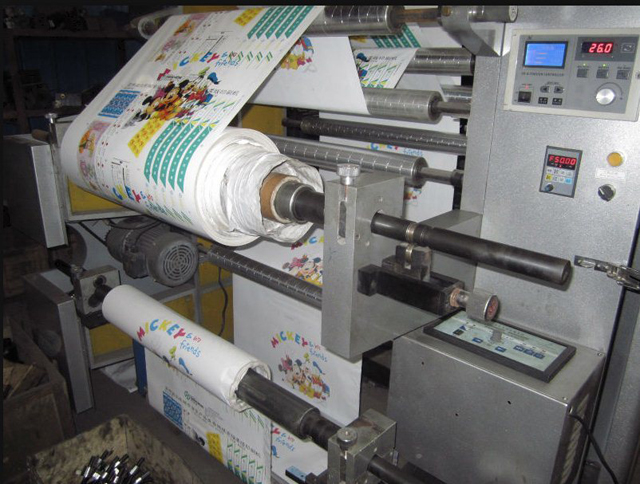

labels printer close pictures.jpg

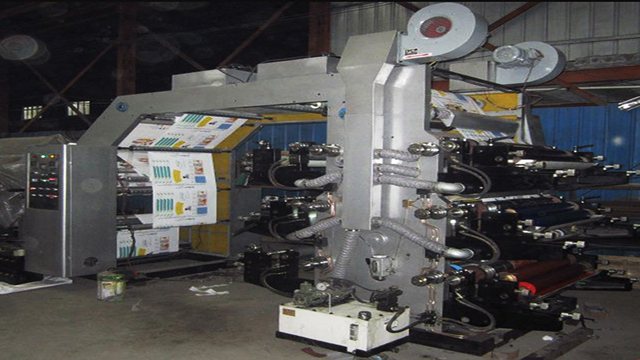

flexography printer.jpg

Features of Six color flexographic printing machine automatic labels PTP foil printer equipment máquina de impresión de etiquetas model YX-FP320-06 :
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° Continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control, magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft.
Basic parameter of Six color flexographic printing machine automatic labels PTP foil printer equipment máquina de impresión de etiquetas model YX-FP320-06 :

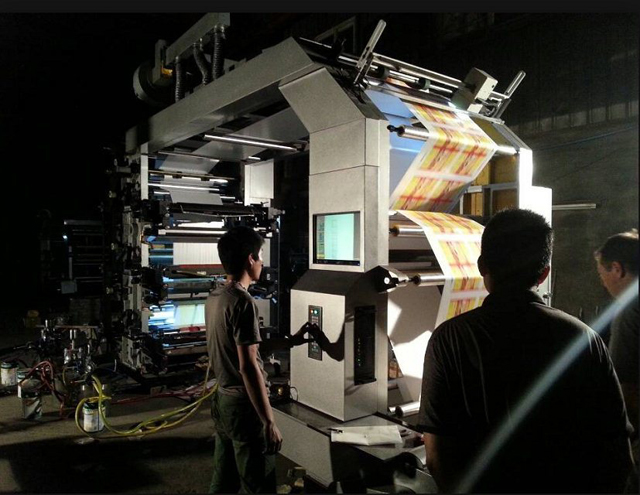

machine in testing.jpg

Model YT-FP320-06
Max.width of the material 600mm
Max.width of printing 560mm
Printing length 191-900mm
Max.diameter of the material roll 450mm
Printing speed 5-80m/min
Plate thickness 2.38mm
Total power 13kw
Weight 3500kg
Overall size 4200*1600*2400mm

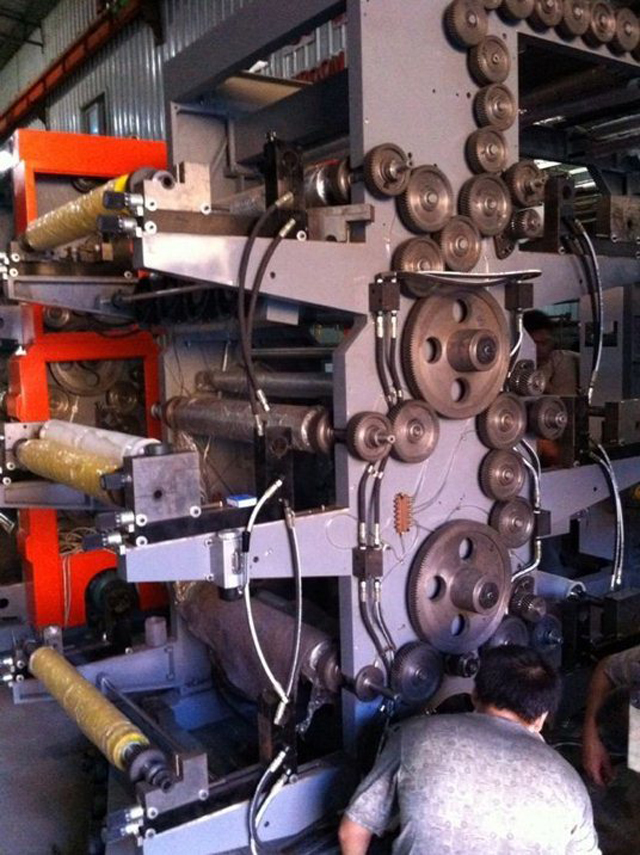

close shot for printer.jpg

Basic confirmation for flaxography printing machines

Type

Specification

Origin

Quantity

Main motor

2.2KW ,220V

LICHAO, SHANGHAI

1set

Heating motor

2×0.6KW/unit

HONGGUANG,SHANGHAI

4set

Fan blower

60W ,220V AC

TAIWAN

4 set

Ink roller motor

25W,220V AC

TAIWAN

4set

Item

Quantity

Origin

Main motor

1set

LICHAO, SHANGHAI

Inverter

1set

DELTA, TAIWAN

Heating motor

4pcs

HONGGUANG, SHANGHAI

Pressure sensor

1set

ZHONGXING, CHINA

Tension controller

1set

ZHONGXING, CHINA

Magnetic  powder driver

1set

HUAGUANG, ZHEJIANG

Temperature controller

1set

YUEQING, ZHEJIANG

Magnetic powder clutch

1set

HUAGUANG, ZHEJIANG

Electric component

1set

SHNEIDER, FRANCE

Solenoid valve

1set

SMC, JAPAN

Anlix roller

4pcs

Made by PENGLAI CORP

Reverse frame

1set

Made by PENGLAI CORP

Air compressor

1set

Made by PENGLAI CORP

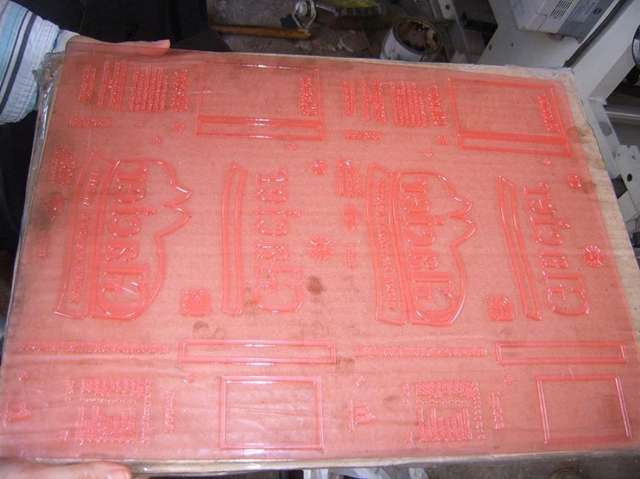

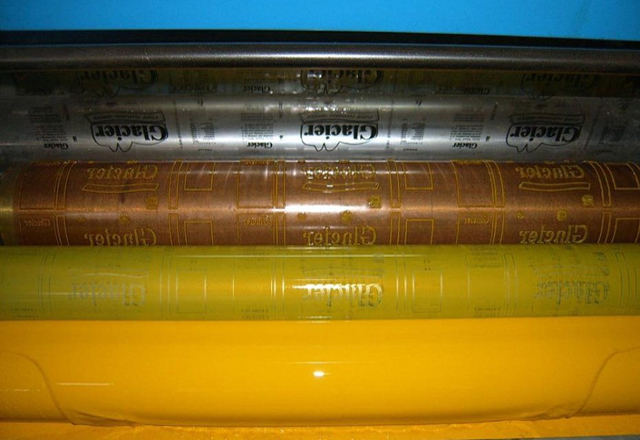

Flexo printing samples


flexo printer.jpg

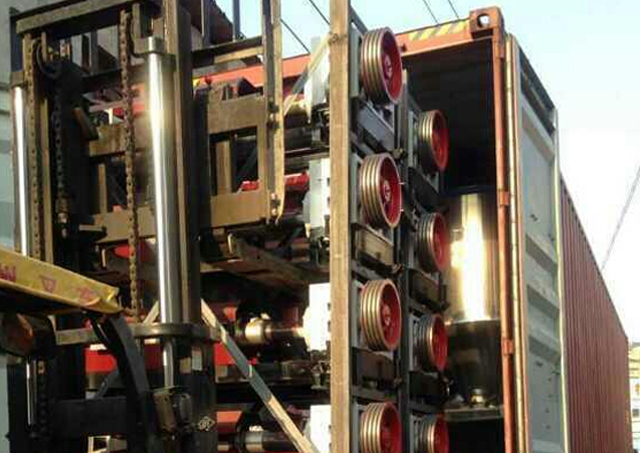

Wooden case packing for flexo printing labeling foil plate printer equipment

container loading for machine.jpg

packing machine for ocean shipping.jpg

Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like Six color flexographic printing machine automatic labels PTP foil printer equipment máquina de impresión de etiquetas model YX-FP320-06,please email via jackdu999@yahoo.com or browse our website http://penglaichina.com.
