linear opp hotmelt glue labeling machine fully automatic for mineral water bottles hot melt glue BOP

linear opp hotmelt glue labeling machine fully automatic for mineral water bottles hot melt glue BOP

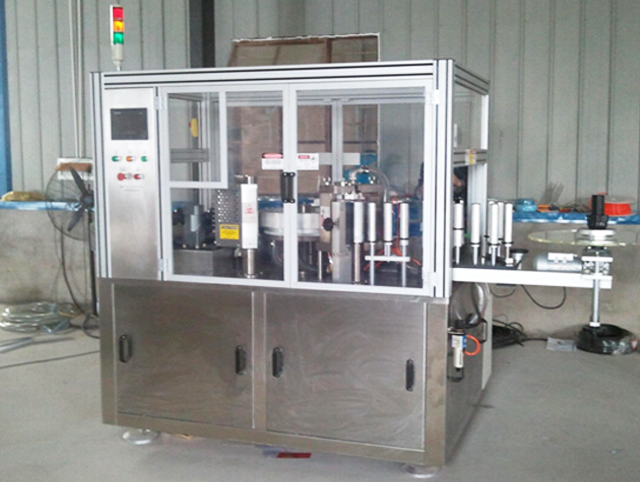

The hot melt labeling machine for round bottles fully automatic OPP hotmelt glue labeller machinery model YX-HML200

linear labeling machine OPP hotmelt.jpg

►Equipment description on hotmelt glue labeling machine fully automatic :

Automatic hot melt glue labeling machine ,which is widely supplied for different material of container and label. the label cost is comparatively lower, it can meet the requirements of those users who have variety of the containers .It is the most economical models in cost to make mass production. The equipment has massively used modularization design concept to  make it easy and simple for users to change the bottles.

►Apply to range

Hot labeling machine is our company’s new product to meet the abroad market. apply to  round bottle of food .medicine ,chemical ,and other industry.

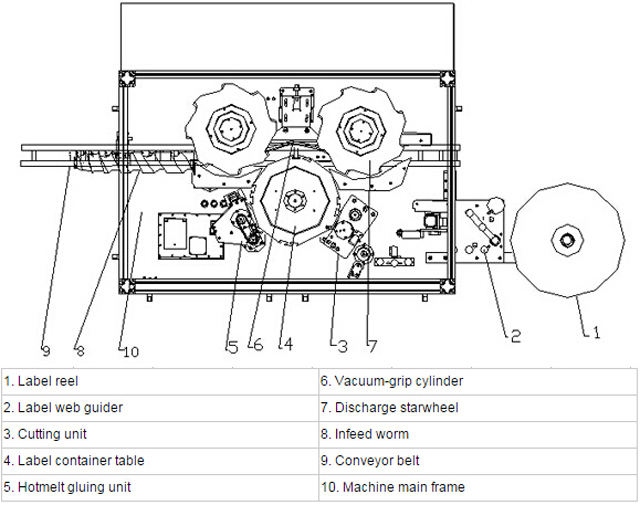

Drawing of model YX-HM200 labeling machines.jpg

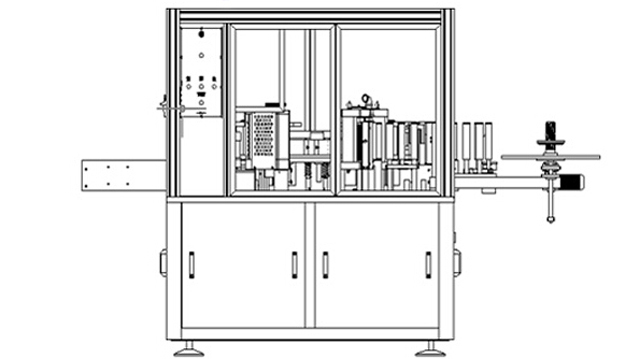

drawing of labeling machine hotmelt.jpg

►features of hotmelt glue labeling machine:

(1).delivery labeling is controlled by servo motor.

(2)The labeling is cut accurately.

(3)It is easy to exchange the labeling cutter.

(4)Exchange parts is less and quickly.

(5)Check the labeling quickly and don’t waster the labeling .

(6) 1 kg hot melt may use 60000-100000 bottle and reduce the cost.

(7) the label material is OPP,and save cost 1/3.

(8) the machine power is 8 KW. so save electric resource.

Technical specification of hotmelt glue opp labeling machines:

delivery system for labeling machines.jpg

model

YX-HML200

Bottle type:

Glass bottle,plastic bottle

Product speed (b/h):

12000

Label material:

OPP/ Pearl film/composite paper

Accuracy error(mm):

±0.5mm

Label size (mm):

(L)20-300mm   (H)10-180mm

Bottle size (mm):

Outer diameterφ40-φ80mm   heght30-200mm

Label inner diameter (mm):

Φ150mm

Label outer diameter (mm):

Φ500mm(big)

voltage(v):

220

power(kw):

9

Air compressed pressure(bar)

Min5.0bar  Max8.0bar

Air consumption

0.2M³/minute

dimension(mm):

2600L*1800W*2050H

weight(kg)

1400

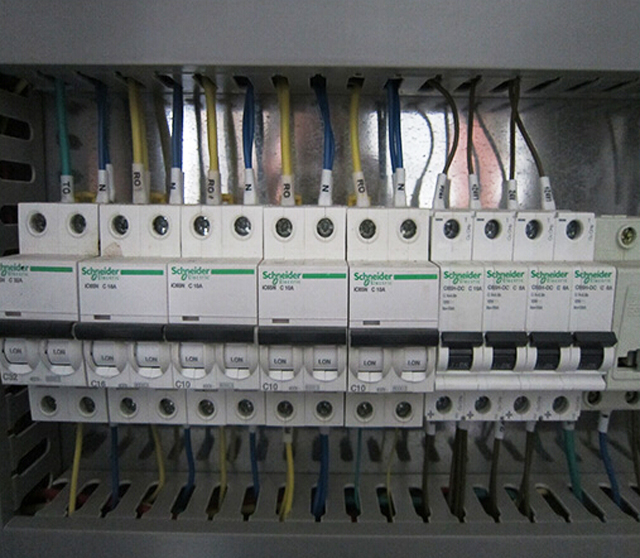

►electrical appliance configuration specification:

internal structure for labeling machines.jpg

No

item

Brand

quantity (set)

note

1

Servo motor

Schneider

1

France

2

I-mark sensor

SICK

1

German

3

controller

Schneider

1

France

4

Inverter

Schneider

1

France

5

Label check sensor

SICK

1

German

6

Encoder

SICK

1

German

7

Drive motor

Schneider

1

France

8

Touch screen

Schneider

1

France

9

Cutting knife



1

Italy

10

PLC

Schneider

1

France

11

Low-voltage appliance

Schneider

1

France

12

Blower

Fengli (Hongkong)

1

China

Photos of machine in parts for hotmelt glue labeling machine model YX-HML200:

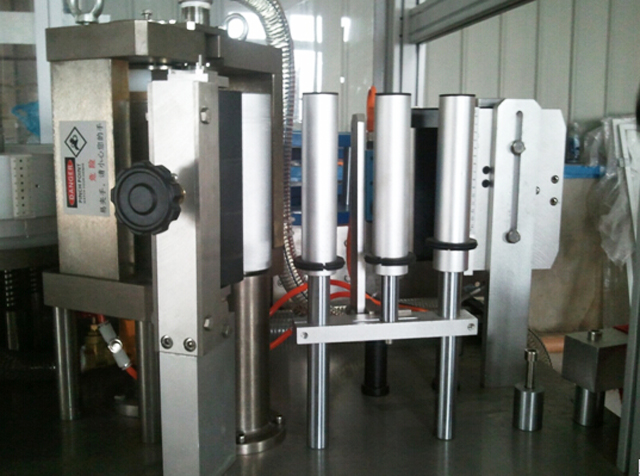

bottles feeding system for hotmelt glue labeller.jpg

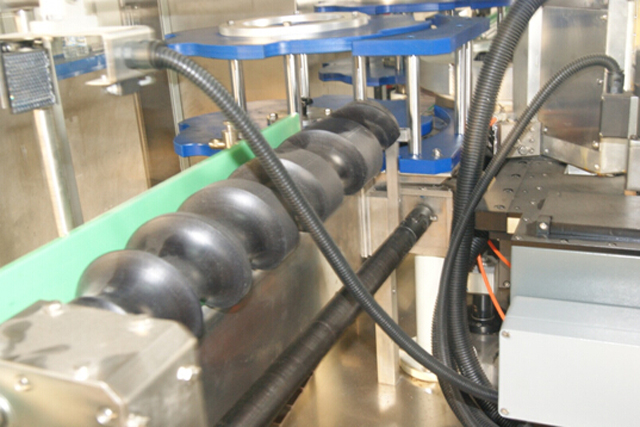

Bottles feeding system for hotmelt labeling

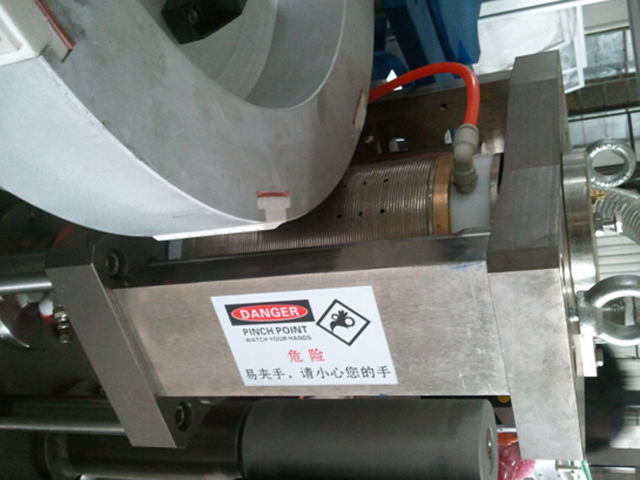

cutter labeling system.jpg

Labels-cutting system

glue boxes for heating hotmelt.jpg

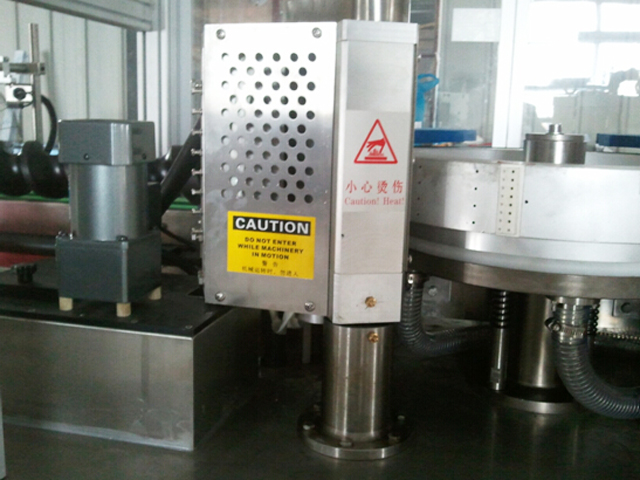

Glue box&glatinization system

Labeling samples for mineral water bottles

hotmelt glue labeling machines samples.jpg

Wooden case packing before shipping for hotmelt glue labels labeling machine fully automatic:

packaging wooden case.jpg

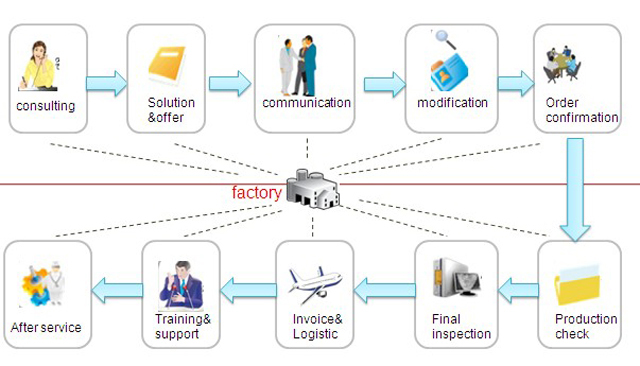

After-sale service for YX series labeling machines:

labeling machine from PENGLAI.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
