semi automatic hose pipes hydraulic crimping machine power shearing crimper sealer equipment 液壓機高壓油管扣壓設備

semi automatic hose pipes hydraulic crimping machine power shearing crimper sealer equipment 液壓機高壓油管扣壓設備

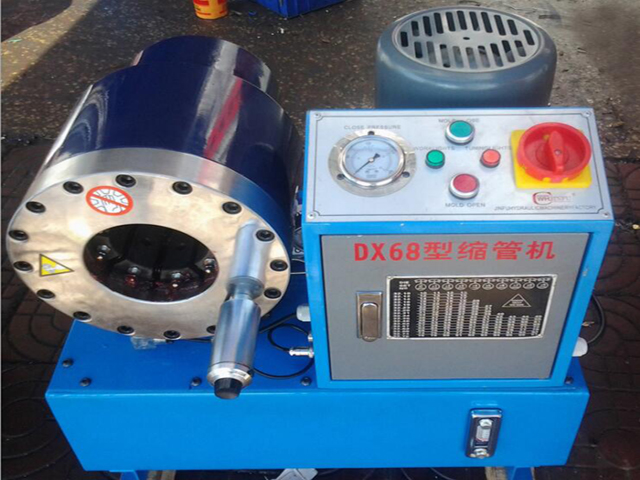

Model YX-DX68 pipe locking machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
basic parameter of model YX-DX68 hydraulic hose crimping machine semi automatic pipe crimper locking equipment Prensadora de manguera:

machinery manufacturing.jpg
Buckling range: Φ6—Φ51mm
Max. buckling force: 449T
Scale accuracy: 0.02mm
Rated pressure: 31.5 MPa
Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V)
Overall dimensions: 670(L)×490(W)×780(H)mm
Main Features of hose crimping machine:

machinery with factory.jpg

two machine in stock.jpg
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.

machine manufacturing factory.jpg
After-sales service on model YX-DX68 hydraulic hose crimping machine semi automatic pipe crimper locking equipment Prensadora de manguera:
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse,misapplication, storage damage,
negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install
and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above).
PENGLAI INDUSTRIAL CORPORATION LIMITED
US agent Office
9284 talway cir Boynton beach. fL 33472
UK Agent Office
69 Waterloo Road Manchester England M8 8FJ
Contact: Jack Du
Cel: 0086-15811882441 0086-13077872898
Phone: 0086-20-84206097 0086-755-25423447
Fax: 0086-755—25417648
Email: jackdu999@yahoo.com
Skype: turnanewleaf

Samples for hoses.jpg

Machine in wooden case before Shipping via Air:

wooden case packaging for air shipping.jpg
