red wine bottles labeling machines

red wine bottles labeling machine manual labeler equipment glass bottle plastic container round shaped customized labeling machinery semi auto

red wine bottles labeling machine manual labeler equipment glass bottle plastic container round shaped customized labeling machinery semi auto

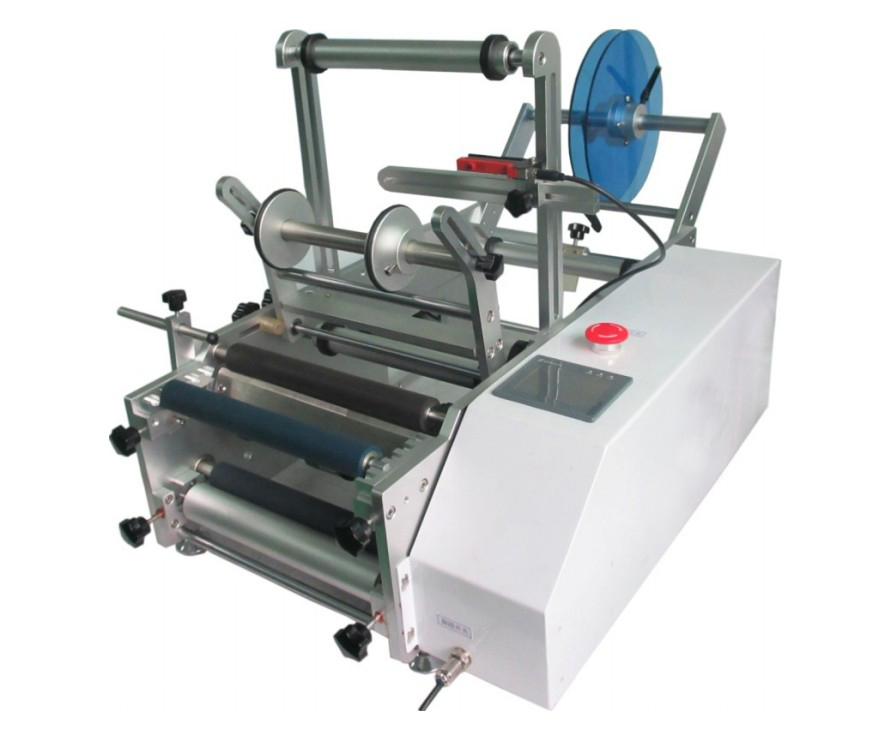

Semi automatic manual bottles labeler equipment red wine glass bottles labeling machines plastic containers labeler machinery model YX-RL25

Application of the Red wine labeling machine semi automatic model YX-RL25

wine bottles.jpg
Semi-automatic labeling machine, red wine is suitable for the wine bottle, wine bottle, apple cider vinegar product labeling, special shapes can be customized consulting SUMJET manufacturer.

Applicable scope
payment terms for labeling.jpg Applicable labels: Self-adhesive label of red wine.
Applicable products:Requirements of labeling wine bottle.
Applicable industry:Mainly used in wine industry.

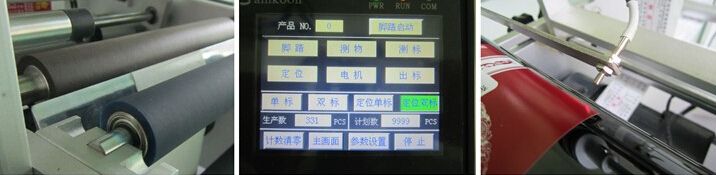

Features of bottles labeling machines

payment terms for labeling.jpg

payment terms for labeling.jpg
● Has the functions of sticking a single label and a double labelon circumference surface.

The distance between two labels is adjustable.
● Label location can be set.
● With the functions of manual control automatic control .

photoelectric tracking and automatic labeling are realized by the automatic control.
● Simple change-over of a single label and a double label
● There are swiches for the change-over of a single label and a double label.

The distance between two labels is adjustable.
● Be able to achieve the labeling of the front and the back by choosing label positioning detector.
● All the equipments are mainly made of stainless steel and high grade aluminum alloy.

the whole structure is strong enough, which meets the GMP requirements.
● The use of the advanced electronic control system with PLC +DATASENS photoelectric sensor

supports the equipment to run 7×24hours.
Optional function

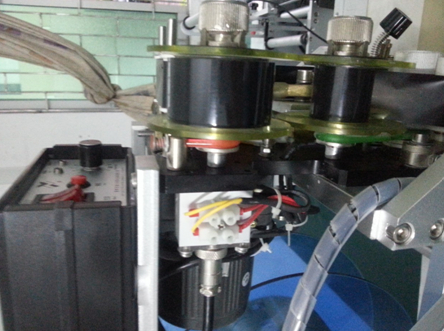

date printer for labeler.jpg
a) print code/ spurting code function
b)circumferential position function
c)other function (as customer’s requirement)

Technical parameters of red wine labeling machines semi automatic model YX-RL25



Applicable Length of Label 10mm~800mm
Applicable Width of Label 10mm~800mm
Accuracy of labeling ±0.5mm
Feeding label speed 5m/min
Labeling speed 15~25pcs/min
Weight (kg) about 55kg
Frequency(HZ) 50HZ
Voltage(V) 220V
Power(W) 400W
Equipment external dimensions(L*W*H) 1078mm*428mm*591mm
Air pressure(Mpa) 0.4~0.6Mpa

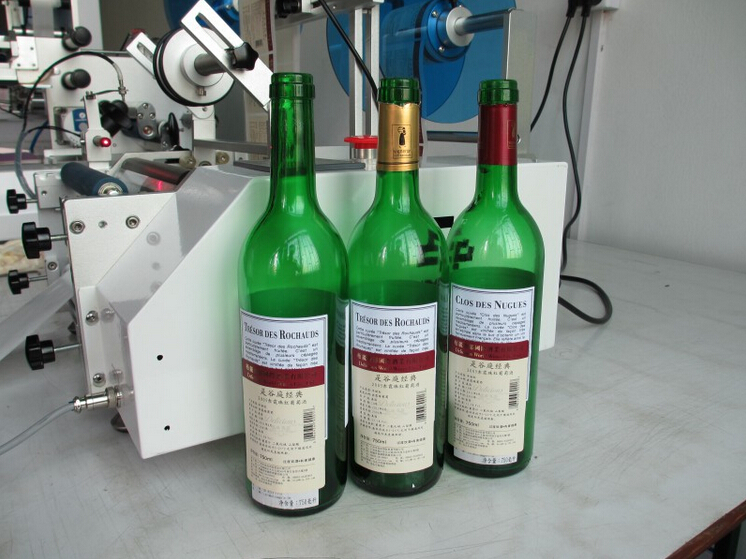

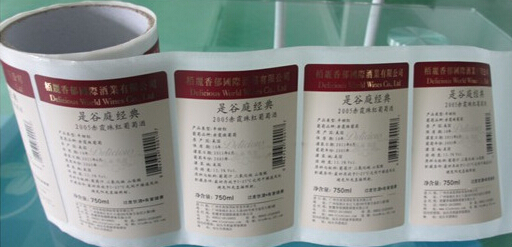

Labeling samples from model YX-RL25 Wine glass bottles labeling machines:

payment terms for labeling.jpg

red wines bottles.jpg

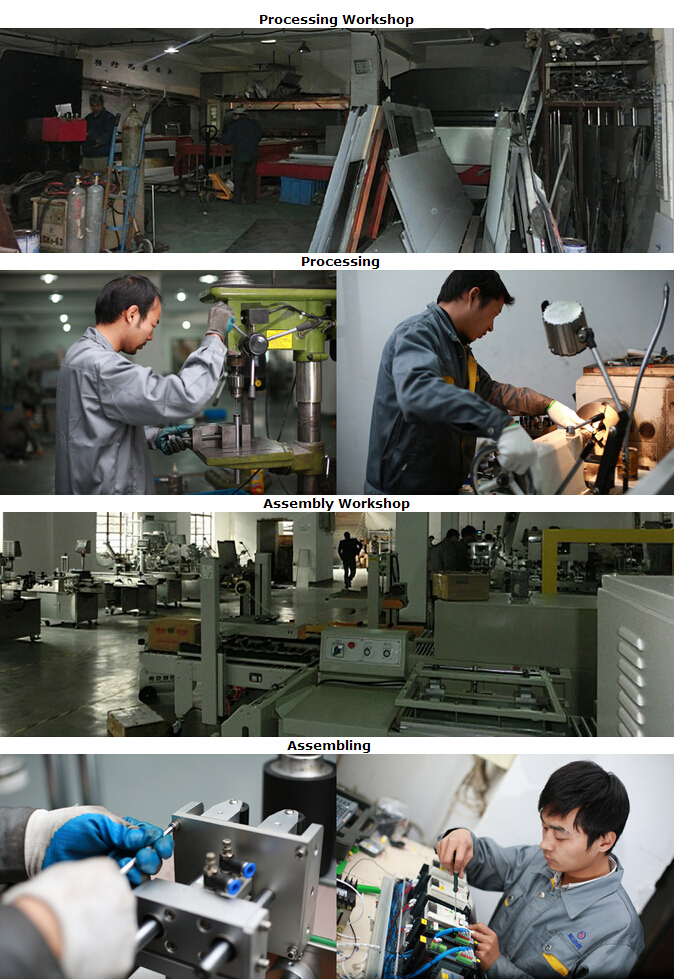

Manufacturing&assembly workshop for labeling or other packaging machines:

processing for flat labeling machine.jpg

packaging in wooden case for manual labeling machine wine bottles labeler equipment :

red wines bottles.jpg

Payment terms for wine bottles labeling machines

payment terms for labeling.jpg

PENGLAI INDUSTRIAL CORPORATION LIMITED
