flat surface labeling machines

Glass Bottles Labelling Machine Labels Applicator machinery semi automatic flat surface objects labeller equipment

Glass Bottles Labelling Machine Labels Applicator machinery semi automatic flat surface objects labeller equipment

Model YX-PL75 plane surface labeling machine semi automatic bouteille machine semi automatique d'étiquetage 半自動平面貼標機 designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like the Model YX-PL75 plane surface labeling machine semi automatic bouteille machine semi automatique d'étiquetage 半自動平面貼標機 and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.

flat bottles labeling machine TT copy sayed.pdf

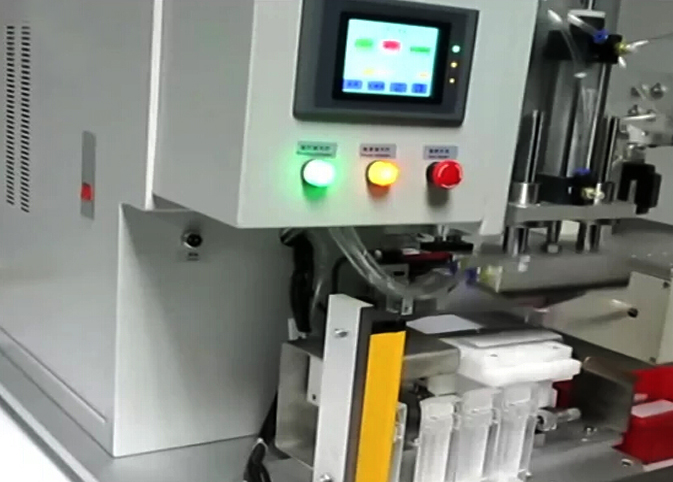

Model YX-PL75 plane surface labeling machine semi automatic bouteille machine semi automatique d'étiquetage 半自動平面貼標機

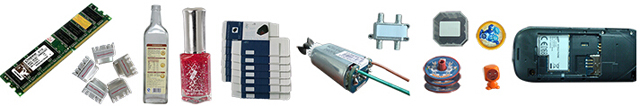

Application of the product High precision semi-automatic flat labeling machine, suitable for small memory chips, electronic components, mobile phone,
toy plane, and other products tag labeling, special shapes can be customized consulting SUMJET manufacturer.

Videos of installation for label feeding plate from plane bottle labeling machine semi automatic model YX-PL75


flat bottles labeling machine TT copy sayed.pdf
Applicable scope
flat surface labelling machine application.jpg
●Applicable labels: Self-adhesive label ,electron supervision code,etc.
●Applicable products:Requirements of flat surface,cambered surface,circumference surface ,concave,convex etc.
●Applicable industry: Widely used in cosmetics ,food,toys ,daily chemical, electronic, pharmaceutical ,hardware ,plastics,etc. Features ● Adopt domestic original technology of labeling.Labeling accuracy as high as ±0.2mm. Meet high precision requirement. Be suitable for little labelsas little as 6mm-8mm. ●Complete the job of separating paper, sending labels, absorbing labels,labeling ,covering labels automatically . The worker only needs to put and take out the products.
● Built-in driving part. electric circuit and gas circuit are separated to avoid exceptions. ● The use of the advanced electronic control system with Panasonic PLC + Panasonic touch screen + Panasonic needle electronic eye + German Leuze electronic eye for detecting label supports the equipment to run a long time .
flat bottles labeling machine TT copy sayed.pdf

Videos of Disassembly for label feeding plate from plane bottles labeling machine semi automatic model YX-PL75


● Optional function:
a)automatic feeding function;
b)automatic collecting function (according to product)
c)other function (as customer's requirement) Working principle The working principle of this machine is developed by our company,and you are welcome to consult about it Operation process put the product→ labeling and covering happens simultaneously(automatically realized by equipment) →take out the labeled products.
Technical parameters of YX-PL75 plane surface containers bottles glue non sticker labeling machine manual 平面ラベリングマシン :

LABELING machinery.jpg
This is the configuration of standard machine,the machine can be customized according to customer's special requirement
Applicable Length of Label 10mm~60mm
Applicable Width of Label 5mm~70mm
Applicable product size (L)20mm~200mm
(W)20mm~180mm
(H)0.2mm~75mm
Applicable outside diameter of label roll Φ240mm
Applicable Inside diameter of label roll φ76mm
Accuracy of labeling ±0.2mm
Feeding label speed 5m/min
Labeling speed 15~25pcs/min
Weight (kg) about 67kg
Frequency(HZ) 50HZ
Voltage(V) 220V
Power(W) 145W
Equipment external dimensions(L*W*H) 550mm*420mm*780mm
Air pressure(Mpa) 0.4~0.6Mpa

flat bottles labeling machine TT copy sayed.pdf

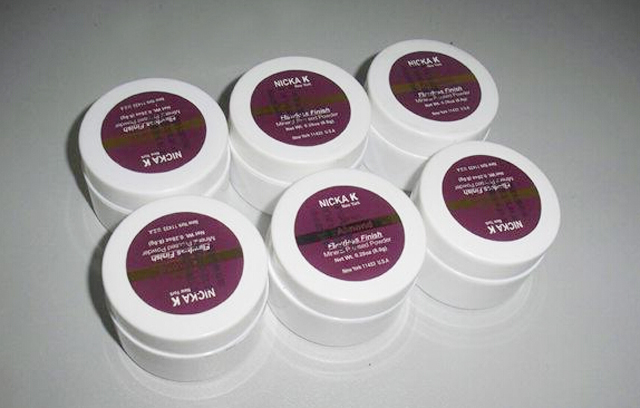

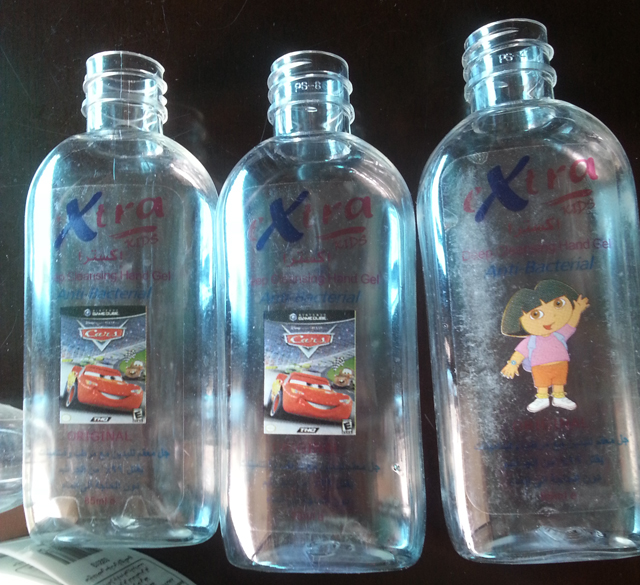

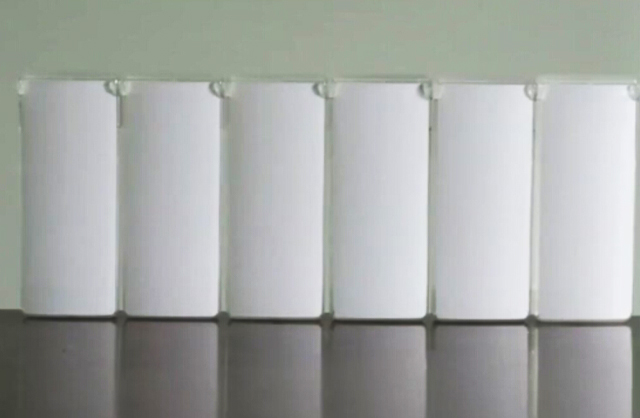

Labeling samples from model YX-PL75 labeling machine semi automatic:

flat surface labeller.jpg

labeling samples.jpg

Mrwan sample transparent labels and bottles (5).jpg

Packaging in wooden case for TNT shipping to Saudi Arabia

flat bottles labeling machine TT copy sayed.pdf

After-sales service and payment terms

after sale service filling machinery.jpg

Shipping handling machinery.jpg

PENGLAI INDUSTRIAL CORPORATION LIMITED
