fully automatic filling machine

fully automatic cosmetic machinery filler sealer line facial mask linear filling and sealing machinery

fully automatic cosmetic machinery filler sealer line facial mask linear filling and sealing machinery

This mask packing machine is special designed for fully automatic mask bag loading, filling, bag sealing and mask bag production date printing.

Our machine comes the first to make machine intelligence come true among the facial mask manufacturing machinery. It’s intelligent mechanization production to put facial mask production line into a new areas.The machine intelligence automatic program processing the problems during production (such as bag unloading and opening.automatic discharge when problems appear in the filling ,the machine will automatic discharge, t then on the back of the station is not filling, not sealing, not coding, then the machine will automatically sort it out into the processing box, after manual review recycling on the production,the cost is savings.Qualified products automatic output from export machine),continuous production without machine downtime, that’s save the time of the artificial discharge mechanical failure, and improve the production capacity of production line.

Features of cosmetics mask filling sealing machine:

packaging machinery automatic filler sealer.jpg

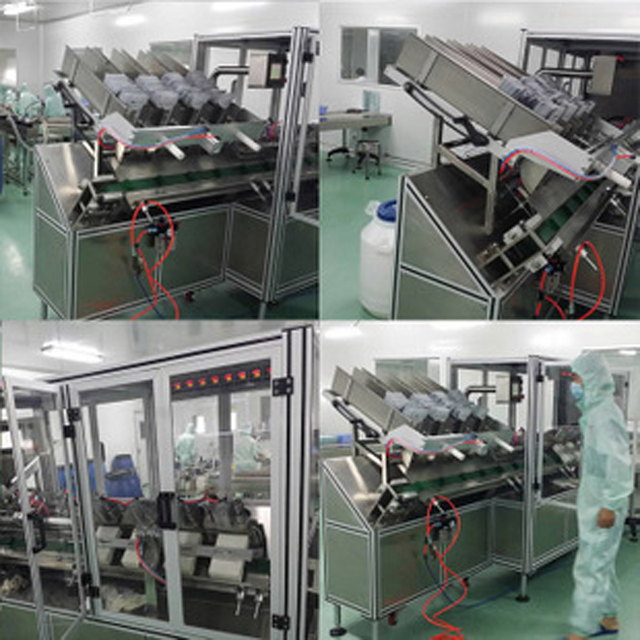

filling sealing mask in working.jpg

1. Automatic bag feeding, liquid filling, sealing, printing and bag out feeding.

2. All contact parts are made from 316 Stainless Steel, complying with GMP requirements.

3. Variable filling machines can be chosen for different filling material.

4. No bag, no fill, no bag, no seal.

5. PLC combined with touch screen control system. Parameters and operation can be done in the panel. Production output and the error message can be easily seen from the screen.

6. Digital temperature controllers.

7. Selected electric and pneumatic components from reliable international manufactures.

Option:

1. Date code printer.

Mask Packing Machine Standard Specification

FACIAL counting filling sealing machinery.jpg

Model

YX-FM4

YX-FM2

Procedure

Auto. Bag feeding, filling, sealing, printing, unloading

Lane No.

4

2

Capacity

2200-3000pcs/h

1200-1500pcs/h

Bag Size

W: 90-140mm; L: 100-180mm

Standard Filling Pump

Electrical Gear Pump

Power

220V/1ph, 3KW

220V/1ph, 1.5kw

Compress air

0.6Mpa

0.6Mpa

Machine Size

L5200xW900xH1700mm

L2600xW900xH1700mm

machine in details cosmetic mask.jpg

Facial mask samples after filling sealing machine:

facial mask samples.jpg

Wooden case packing for cosmetic facial mask filling sealing machine:

wooden case packing machinery.jpg
