liquid filling machine

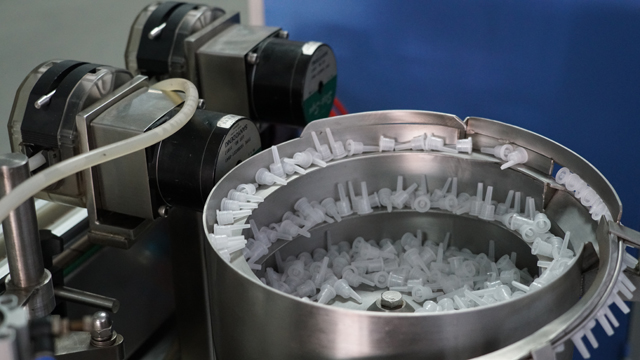

Essential oil filling capping machine automatic glass bottles filler capper equipment with caps plugger feeding bowls system

Essential oil filling capping machine automatic glass bottles filler capper equipment with caps plugger feeding bowls system

Automate e - liquid filling capping for electronic cigarettes, micro tubes and small bottles, it is a highperformance compact peristaltic liquid filling machine and can be customized.This machine can be  ideally suited to automatically bottle dispense, e - Liquid filling into the electronic

cigarette tube and bottles.

The system aseptically and precisely fills standard 5ml, 10ml, 15ml, 20ml, 30 ml dropper bottles and so on, and specialty conical tubes, and culture tubes, vials, and small bottles up to



30 ml.  The filling machine is composed of liquid filling, inner stopper putting and capping, it is 3 in 1 machine. And the e liquid filling machine can connect with labeling machine, sleeve shrink wrapping machine and boxing machine.

An optional diving nozzle mechanism plunges the filling nozzles into the container for increased production speeds without splashing, and we can produce the different filing nozzles for your different speed requirement. Filling volumes are programmable and can be adjusted from the touch screen.

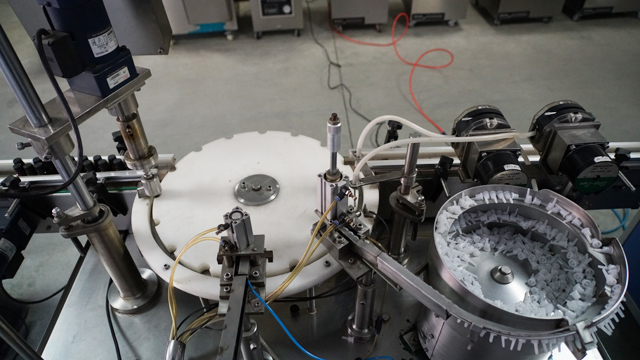

Features of glass bottles filling capping equipment:

glass bottles filling capping (4).jpg

►It is applicable to different shaped bottles and plastic bottles:  PP, PE, PVC, glass bottle and mould bottles.
►The bottle-in and bottle-out has specialized structure. It doesn't drop bottles or nip bottles.
►PLC control , simple and easy to operate.
►►The part which touches the liquid medicine is made of 316L stainless material completely, meeting the
requirement of GMP.
It can be connected with the bottle-washing machine and the label-attaching machine to form a complete set of produce line.
►No bottle no filling. Unique drip proof device in production process, ensure no irrigation constant filling
function.
►High filling accuracy

Specification of filling capping machine glass bottles:

essential oil filling capping machines (2).jpg

Filling nozzles

2/4

Inside tuck pressing nozzle

1/2

Outside tuck capping nozzle

1/2

Filling capacity

5-50ml

Filling precision

≤± 1%

Filling speed

30-80pcs/min

Eligibility rate of inside tuck and outside tuck

≥99%

Air pressure

0.6Mpa

Main components parts

glass bottles filling capping (1).jpg

N0.

Name

Brand

1

PLC control system

Mitsubishi(Japan)

2

driver

KINCO (Germany)

3

Frequency changers

Schneider(France)

4

Photo electricity

Omron(Japan)

5

Photoelectric sensor

FOTEK(Taiwan)

6

Touches screen

Eview(Taiwan)

7

Motor

WANXIN(Taiwan)

8

Bearings

Japan

9

Stainless steel material

304SS

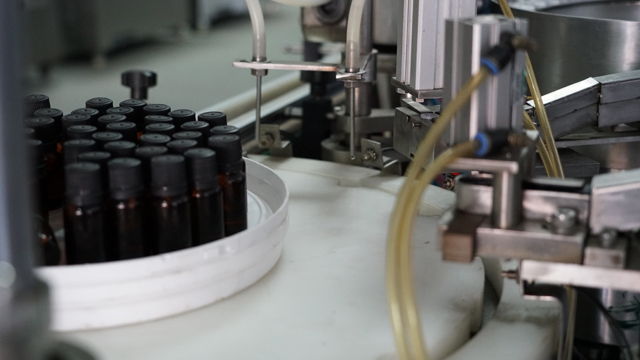

Process flow

essential oil filling capping machines (3).jpg

essential oil filling capping machines (5).jpg

a. Automatic unscramble,bottle feeding
b. Delivery
c. Under the filling head,sensing , positioning
d. Peristaltic Pump Filling,dosing
e. Delivery to capping machine
f. Conveying inner plug and cap,automatic puting on the bottle
g. Under the screw head,sensing,positioning .Pressing inner plug and screwing cap
h. Labeling,then sleeve bottle with label
i. Electric heating shrinking
j. Delivery to turn table , then out

Functions of glass bottles filling capping machinery rotary filler capper model YX-10G:

essential oil filling capping machines (2).jpg

A high yield of cap-fastening
Turntable fastness, replace simply and convenient.
Come in and out bottle is easy, frequency conversion adjusting speed.
Operate easily. It is easy maintenance.
Concatenation work, automatism production,
Saving time, improve efficiency.
The whole machine is designed to meet GMP standard.
What the machine can be used for?
Can be used for production of liquid in small bottle,plastic or glass bottle.Such as e-liquid , e-juice , eye drop,
essential oil etc.

essential oil bottles.jpg

After-sales service for essential oil filling capping machine:

Guarantee: for all the machine, it claims three years for guarantee.
(Excluded from the warranty are problems due to accidents, misuse , misapplication,
storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS
NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go
to your place to install and  test the machine and also training your worker to operating the machine (The time of train
depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on
your account and you need
paid for the technician USD50 per day. also you can go to our factory to do training.
Training service: If you get the problem on the machine ,our technician will go to your
place to fixed the machine as soon as possible. The cost should be in your account.(as above).

essential oil filling capping machines (6).jpg

essential oil filling capping machines model YX-10G.jpg
