double-sided labeling machines

upper down side double face labeling machine for flat surface objects bags boxes custome labeller equipment

upper down side double face labeling machine for flat surface objects bags boxes custome labeller equipment

Model YX-610C upper down side double face labeling machine for flat surface objects bags boxes custome labeller equipment

Device Characteristics
1. The whole machine is made of SUS304 stainless steel and the anode handling superior aluminum.
2. Machine-wide adoption of a mature technology PLC control system, to the whole stable and high speed
3. Operating system using touch-screen control, simple, practical and efficient.
4. It has pneumatic coder system with high technology, printing quickly, stably and with clear writing.
5. The large scope of application, the flat labeling of objects in various shape
6. Roller bottles attached to the input, so that labels attached to a more solid.

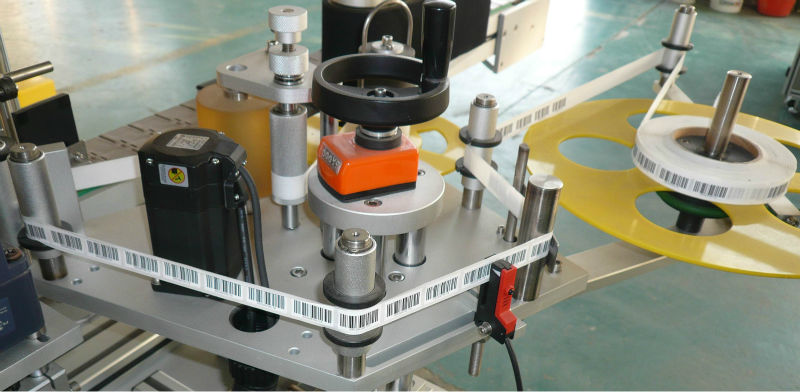

Local view of labeling head :

labeling head view.jpg
The Scope of Application
The upper and downer labeling of different size of packing objects, like medical, food, chemical, cosmetics, electronic, tapes, CD, cartons and so on.

Electric working principle for labeling machine

electric controlling principle.jpg

Labels winding direction

labels path.jpg

Basic parameter of model YX-610C customized labeling machine for upper-down sided labeller equipment:

three dimension of view.jpg

drawing of labeling machine double sided.jpg

model YX-610C
Labeling accuracy: 1mm
Labeling speed : 100-120pcs per min
Applicable product size :According to samples
Applicable label size:According to the sample
Machine size :2707mm*1190mm*1405mm
Weight:280kg
Power:220V/110V 50-60hz

Touch screen information

PLC touch screen system for labeling machinery.jpg

Conveyor vertical and horizontal position adjustable supportor

up down double sides self adhesive label sticking machine

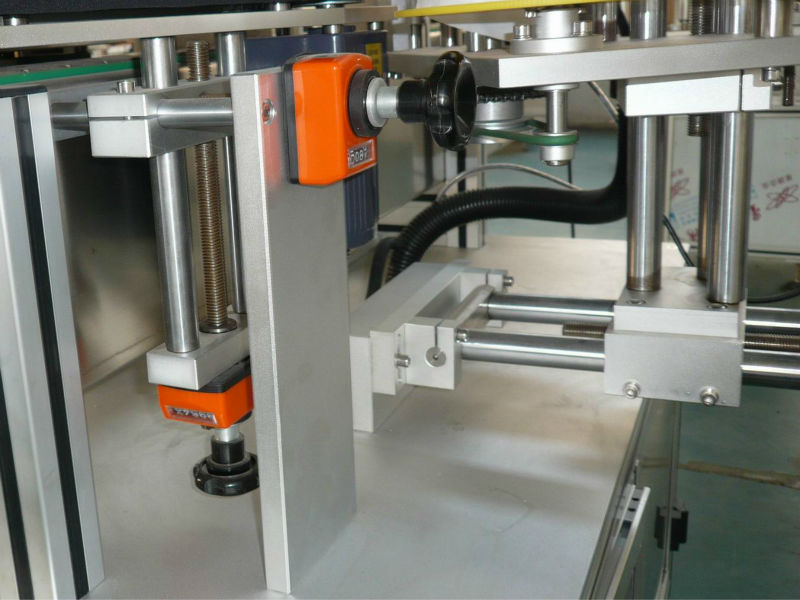

Labeller vertical and horizontal position adjustable supportor

up down double sides self adhesive label sticking machine



Labeller head

up down double sides self adhesive label sticking machine

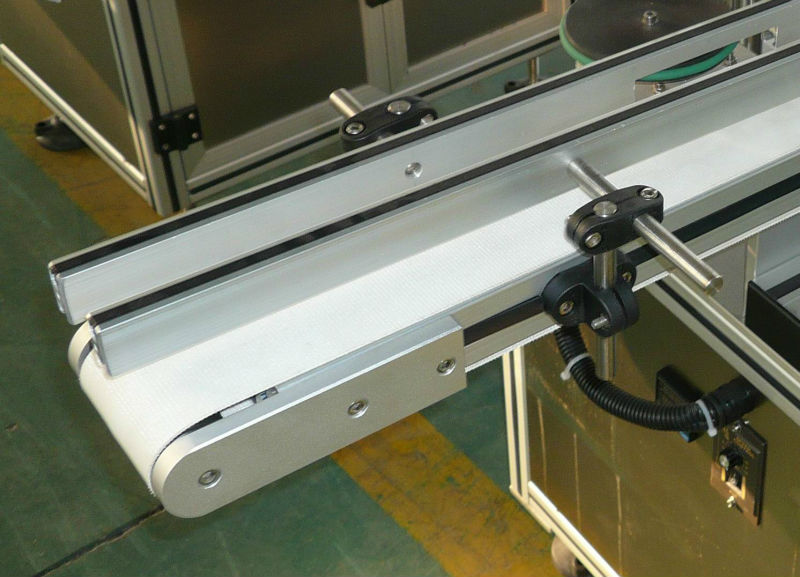

Height and width adjustable labeller conveyor

up down double sides self adhesive label sticking machine



Final products for labeling samples

labeling machine customized for boxes.jpg



plane surface labelling effect.jpg


Wooden case packaging and packing list together with machines

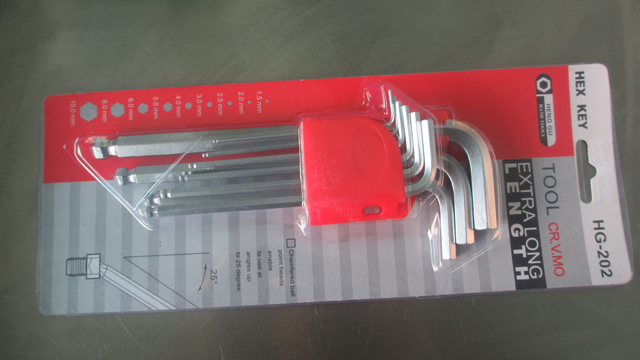

hexagonal wrench.jpg

the labeling machinery with mark.jpg



After sales service for labeling machine PENGLAI YX series

After sales service for 502 SUPER glue filling capping machine filler screw capper

packaging wooden case.jpg

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After sales service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
