newly updated magnetic pump filling machines semi automatic E liquid filler equipment

Befor our long holiday Ferry firmanto  in Banten ID  ordered  one (1*)set of magnetic pump filling machine .
As soon as our holidy passed we finished the manufacturing of liquid filling machine and wooden case packaging then DHL deliver it within one day .
Below is the basic information about this international transaction:
Product samples from customer for digital magnetic pump filling machines

serum jaya mandiri.jpg

Indonesian customers paid via Western Union

semi automatic filling machine liquid filler.jpg

Testing video of magnetic pump filling machines

Packaging into wooden case before Delivery via DHL courier

machines ready with mark filling machine.jpg

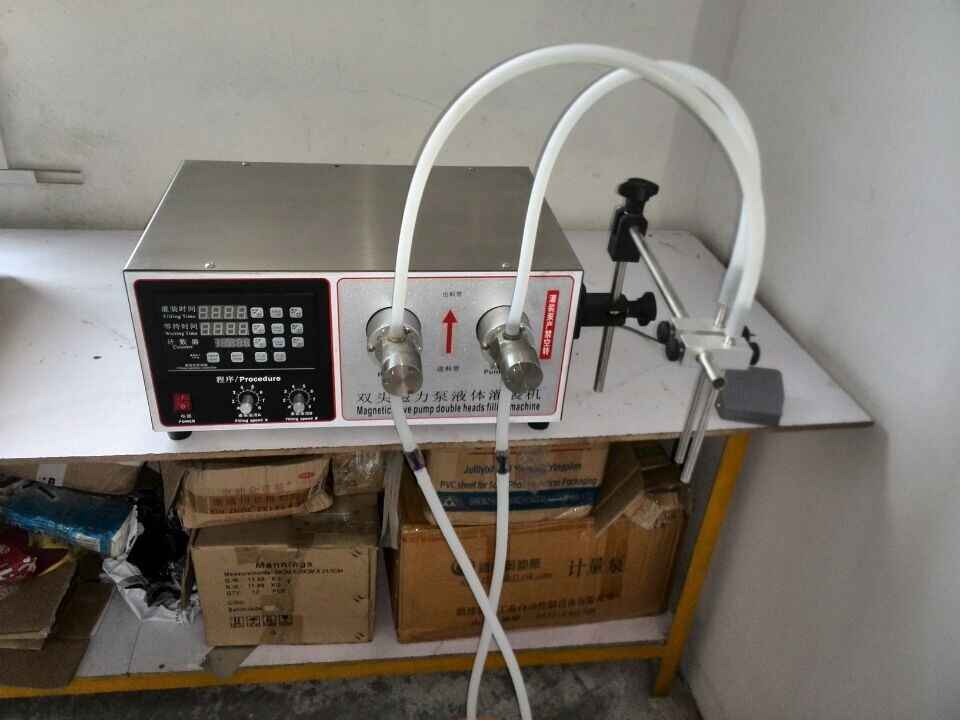

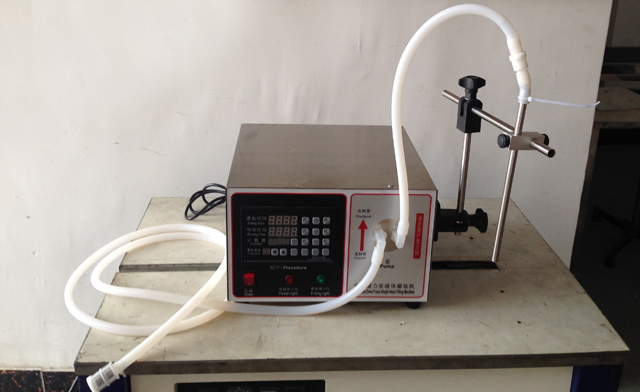

As follow there is the detailed description for the magnetic pump filling machines semi automatic model YX-I

semi automatic filling machine liquid filler.jpg

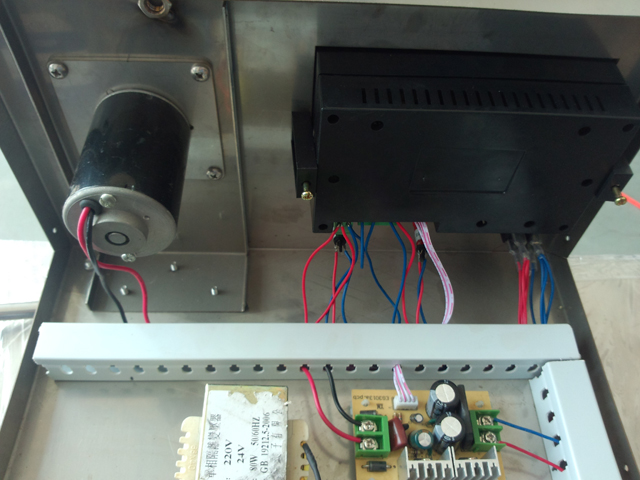

The magnetic pump is drived by magnetic power, the pump head and the motor is connected without shaft,no need worry about the burnout of the motor because of the high load of the pump.

Pump head and motor is imported from Germany, other components are produced in Taiwan, Stable performance, life time is long.

Pumper head is made from 316L stainless steel, acid alkaline, corrosion-resistant.

The motor run is adjusted by potentiometer, the degree of accuracy of filling time can be lower to 0.01 second, so that can guarantee the filling accurately, the filling error is less than 1%. Filling volume is from 5ml-unlimited fillin.

Fully functional, can be operated by hand, foot pedal filling, automatic filling. Interval time can be adjusted.

semi automatic filling machine liquid filler.jpg

Widely applied in various industrious, almost can be used for filling any flow liquid, especially suitable for oil, acid and alkali, high corrosive liquid filling.

 oil perfume for filling machines.jpg



Application



Widely used in cosmetic, drinks, medical, chemical, medical, food industry etc, highly improve production capacity and product quality. Ideal equipment to fill low viscosity liquid like oil,perfume,juice,milk,beverage,ink,water and so on.



Specification of model YX-I magnetic pump filling machines

machines ready with mark filling machine.jpg



Model

YX-I

Filling Range

5ml-unlimited filling (adjustable)

Voltage

AC220V,50/60Hz

Max Power Rate

80W

Mainframe Size

350*320*220mm

Mainframe Weight

22kg

Precision

±1%

Max Flowing Rate

>2 L/min

Overall Dimension

360*340*220mm

Pump Quantity

1

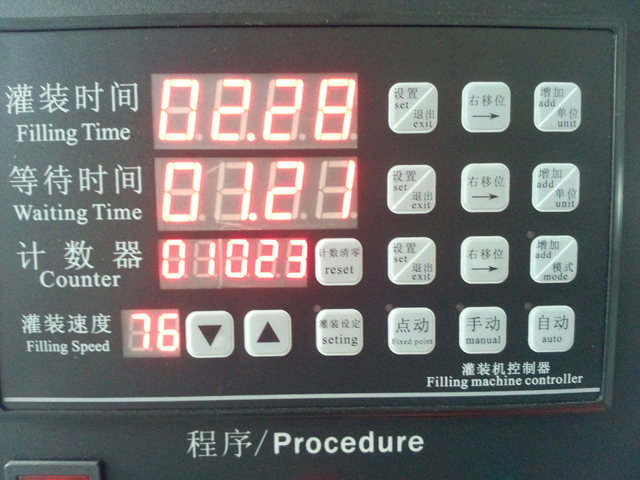

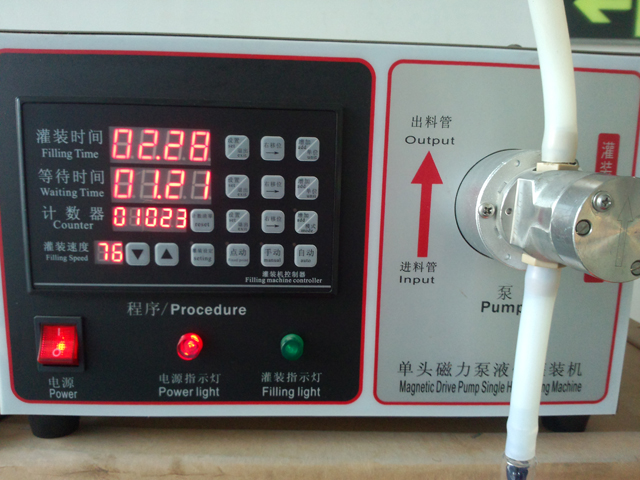

Semi automatic liquid filling machine panel function:


number digital panel.jpg

Filling time : for adjusting the filling time
Waiting time : waiting time between each filling when the machine is filling automatically .
Counter : filling counter
Filling speed : adjusting the speed
Fiilling machine controller : for adjusting the filling range . When you turn on the machine , push the button "setting"
When the filling range reaches what you want , push the button "setting" once again .
The liquid filling machine will keep the filling range in memory .

Operation instruction:
semi automatic filling machine liquid filler.jpg

1, turn on the machine ,and put the bottle under the filling head
2, push the button "setting". When the filling reaches the range you want , push the button "setting" once again . Then the machine will keep the filling range in memory .
3, push the button "auto ", and it will work automatically . Push the button "manual", and it will work manually .
4, the warranty of the machine is 1 year .
The pump is diaphragm pump and is consumable . When you find the filling turns slow, please change the pump .
magnetic pump filling machine.jpg



After sales service:
filling machines semi automatic.jpg
1,If the machine broken in 1 year (from you buy the machine that day ), we will offer the repair

2,We offer the video to you  teach you how to use ,fix ,maintain this machine

3 ,When the machine broken suddenly ,We offer the instruction like videos&pictures for teaching you how to deal with the emergency
