fully automatic screw capping machine

single head capping machine with caps sorter cap feeding system automatic screw capper equipment

single head capping machine with caps sorter cap feeding system automatic screw capper equipment

The cap supplying system and the manipulator from capping machine screw capper with caps sorter automatic  works at the same step. When caps capped well, the bottles and the caps are relative static, the clutch releases, this can avoid bottles getting injured to achieve high qualified rate of capping. The surface of machine is made of high quality stainless steel, the electrical elements use international famous brand which makes machine more stable, good-looking meets GMP standard.

Major characteristics from single head capping machine automatic:



(1) This capping machine has one manipulator ,dispatches caps in high speed with no reverse caps which can be suitable for various types of bottles.



(2) The cap supplying system and the manipulator works at the same step. When caps capped well , the bottes and the caps are relative static ,the clutch releases ,this can avoid bottles getting injured to achieve high qualified rate of capping.



(3) The surface of machine is made of high quality stainless steel ,the eletrcial elements use international famous brand which makes machine more stable ,good-looking meets GMP standard.

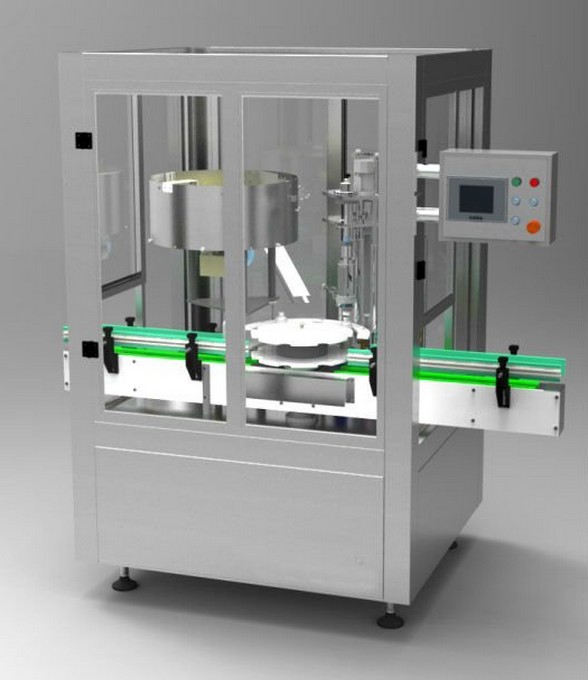

Single head capping machine added with protective chamber :

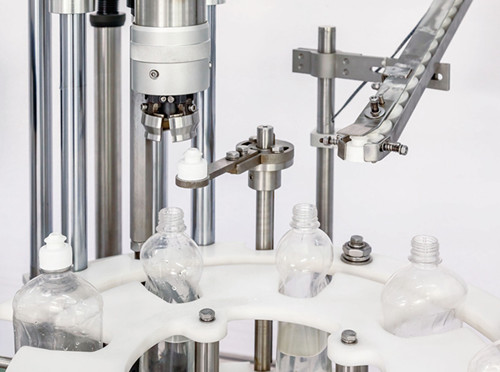

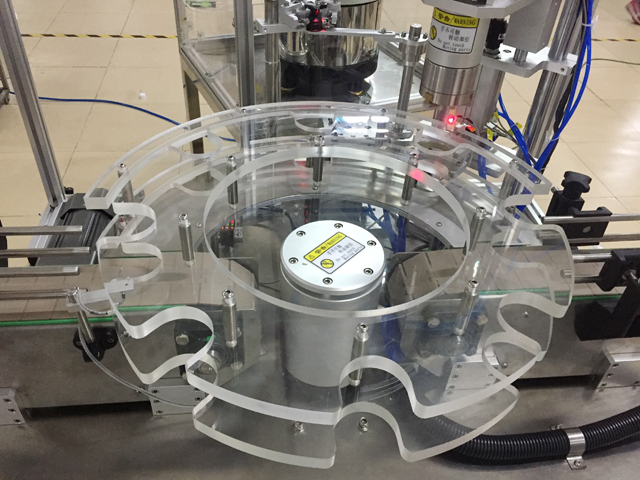

details of single capping machine.jpg

Main technical parameter of single head capping machine:



details of single capping machine.jpg



No.

Items

       Performance

 Model Caps screw capping machine YX-AC45

1

Power supply

220V;50Hz

2

Power

1.5Kw

3

Pneumatic (air-operated) source

0.6 Mpa clean and stable compressed air

4

Suitable bottles

diameter: Φ40mm~Φ100mm; height : 60mm~230mm

5

Suitable caps

diameter of caps: Φ20mm~Φ70mm;height of caps: Φ15mm~Φ30mm

can be customized

6

Production capacity

≤2500bottles/hour

7

Machine weight

about 580Kg

8

Dimension (L*W*H)

2000mm*1000mm*1780mm

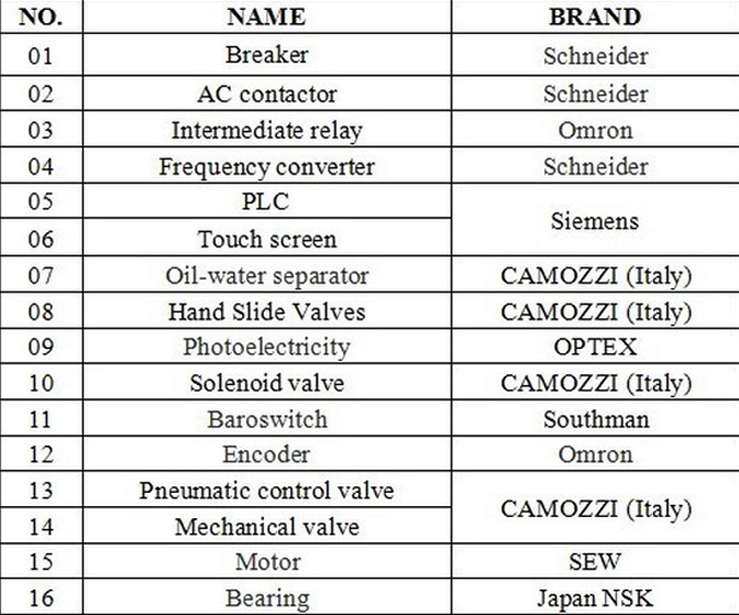

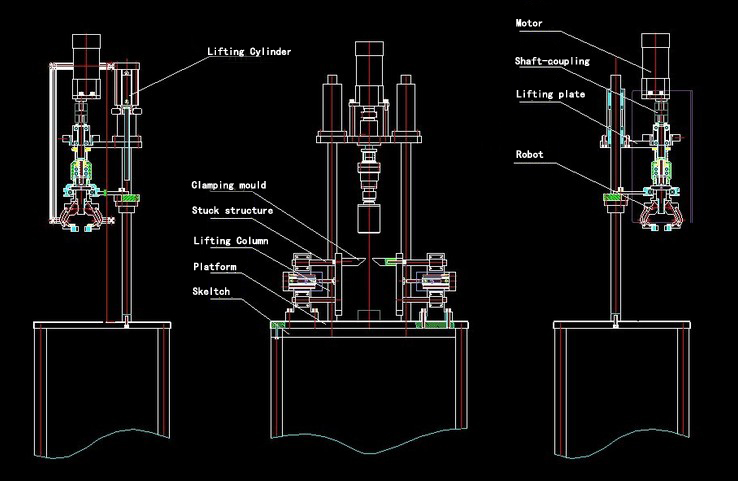

Configuration of automatic single head capping machine Model YX-AC45 :

details of single capping machine.jpg

details of single capping machine.jpg

Samples from Single head automatic capping machine model YX-AC45

details of single capping machine.jpg

Packaging & Shipping for single screw capping head capper equipment:

packaging wooden case.jpg

After-sales Service:

details of single capping machine.jpg
1. Under stable voltage, the machines' quality that we sold will be guaranteed for 3 years;


2. Long time technology will be supplied;


3.We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets,accommodation,

and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person;


4.We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
