semi automatic sealing machines

Semi automatic Boxes carton sealing machine taping equipment hard paper cartons sealer with overloading protection box

Semi automatic Boxes carton sealing machine taping equipment hard paper cartons sealer with overloading protection box

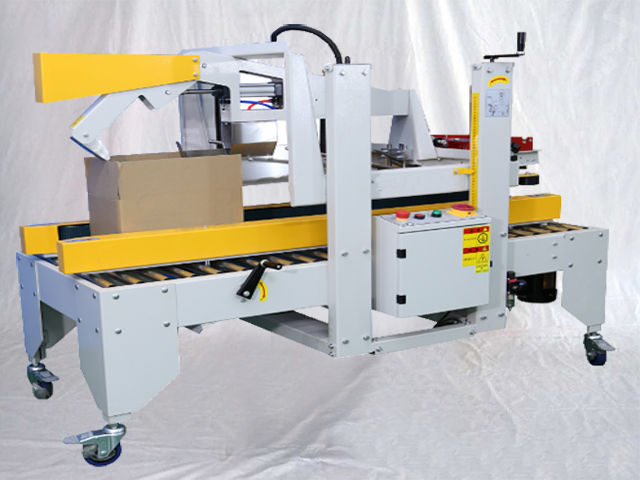

Model YX-GPC50-A Semi automatic Carton Flaps Folding Machine carton baxes sealer equipment with adhesive tapes folding cover sealing machinery

This product is suitable for carton sealing and the tape,With automatic folding cover,

Automatic sealing adhesive tape, the function of automatic conveyer, economic and efficient,

is the ideal packaging equipment.

YX-G50 carton sealing machine with flaps folding.jpg

Parts Adopted for carton folding sealing machine semi automatic  model YX-GPC50-A
1.Motor : Taiwan Luyang
2.Power switch: Korea KACON
3.Bearing : Japan NSK
4.Cutter :Japan SKD11
5.Conveyor Belts: import from Italy
6.Caster :YX-200
7.Touched Switch:Japan OMRON
8.Intermediate Relay : Janpan IDEC
9.AC Contactor :CHINT
10.Cylinda   : Taiwan SHARKO
11.Magnetic Valve:Taiwan SHARKO

Basic parameter of model YX-GPC50-A carton boxes flaps folding sealing machines :

machines factory.jpg

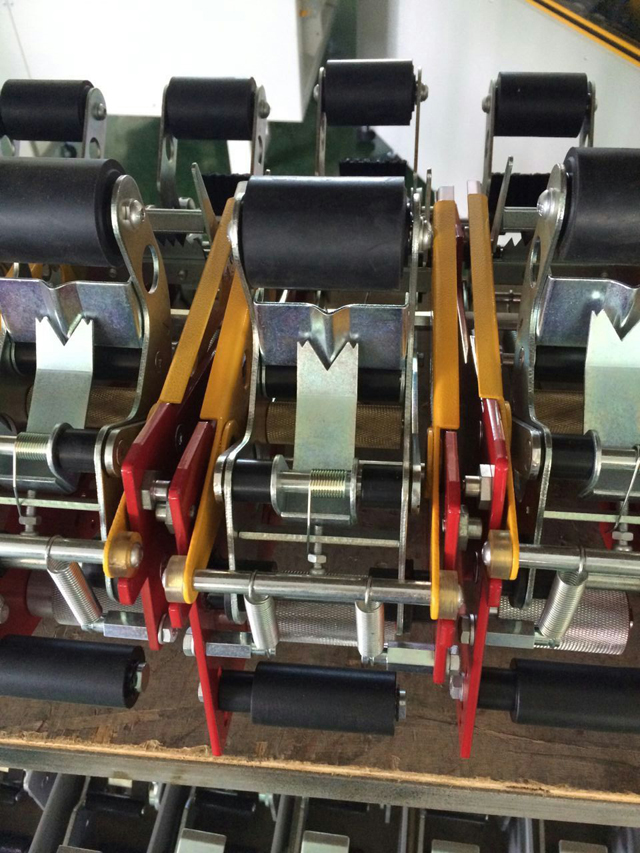

CARTON Sealing details.jpg

Model YX-GPC50-A
Production speed 0-20ctns/min
Carton size(mm)  L200-600xW150-500xH150-500
Power supply  220/380V、50HZ、1∮-3∮
Power 240W
Adhesive tape width 48/60/75MM
Machine dimension  L1770xW850xH1520mm
Machine weight  250KG

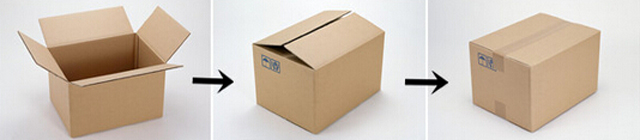

Flow chart for carton sealing process from box cartons sealer equipment:

process of carton sealing machine.jpg

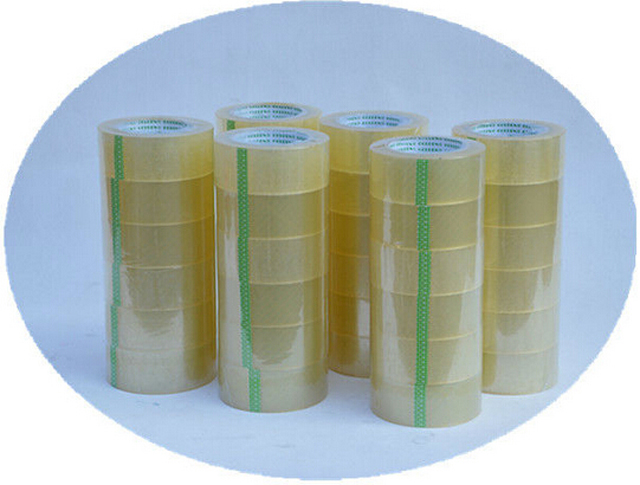

Adhesive tapes equipped with the carton sealing machine for sealing the cartons :

tapes for sealing.jpg

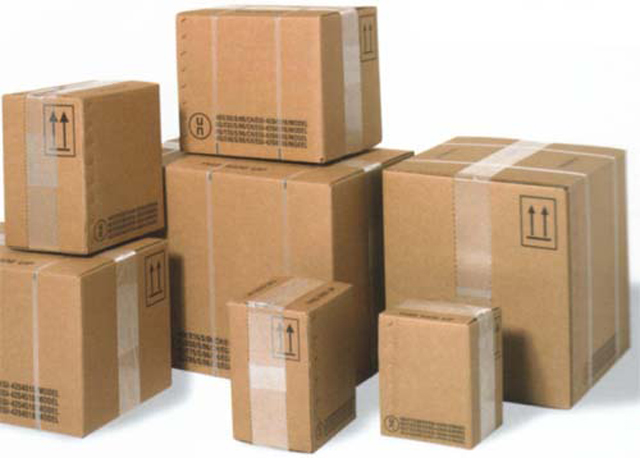

Cartons samples after folding sealing by PENGLAI YX series carton boxes sealer equipment

carton samples.jpg

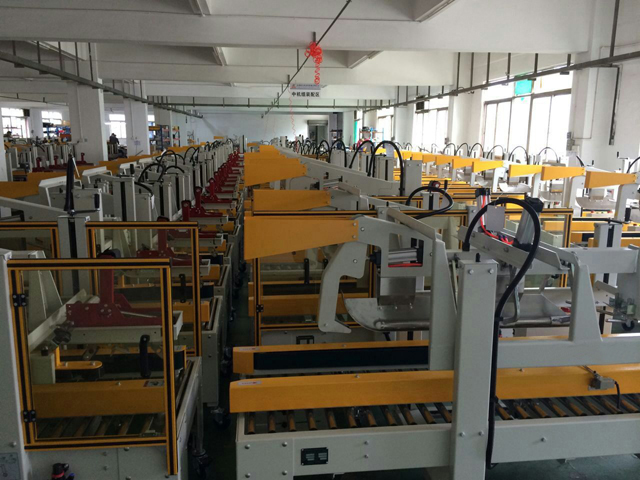

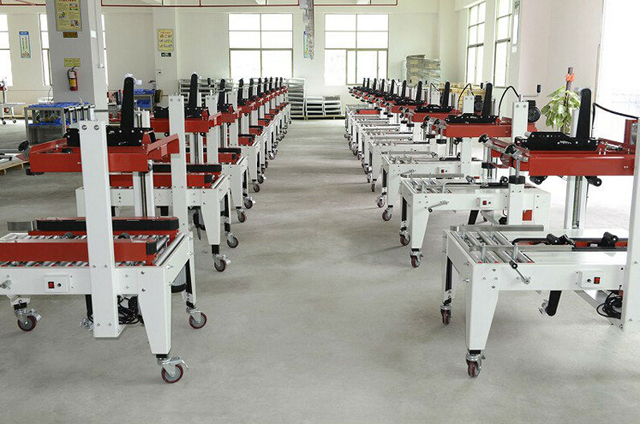

Plant workshop for carton sealing machines various model for assembly&commissioning

sealing machinery in factory.jpg

machines factory.jpg

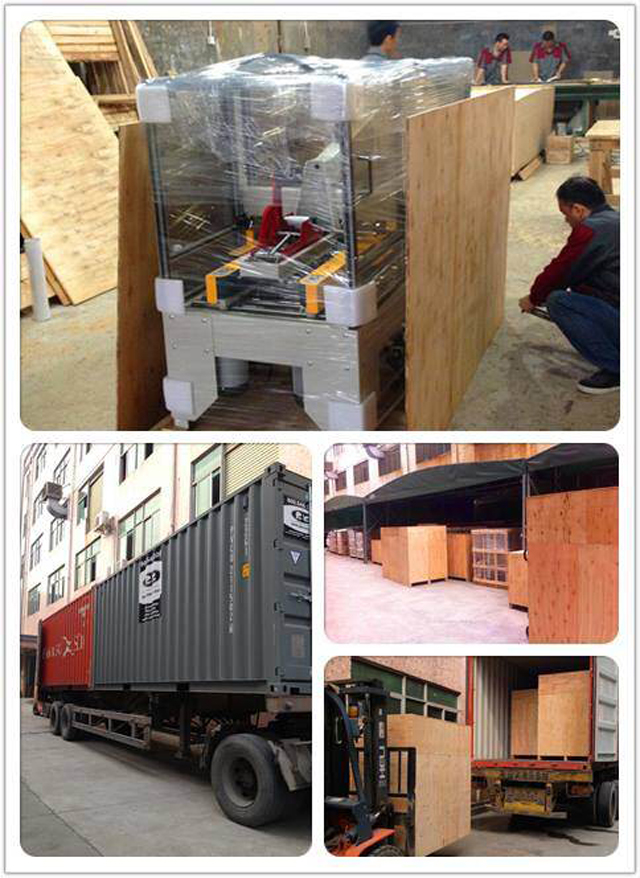

Plywooden crate&ocean Shipping for carton sealing machines

wooden case packing for carton sealer.jpg

Mark

@before delivery,machine be tested and adjusted at our factory

@English operation manual and relative spare parts offer

@English operation interface

@delivery term:30% of the amount in advance,finish machine within 25 working days,delivery after the balance paid

@after-sale service:1 year guarantee period and lifetime maintenance,as to the fee,damage not caused by personal and within the guarantee period,fix it up for free,otherwise,for charge
