liquid pouch packing machines

liquid honey sauce doypack packing machine for pre made stand up bags bag-given packaging equipment

liquid honey sauce doypack packing machine for pre made stand up bags bag-given packaging equipment

automatic doypack pouch liquid packing machine  bags-given packaging equipment for premade bags

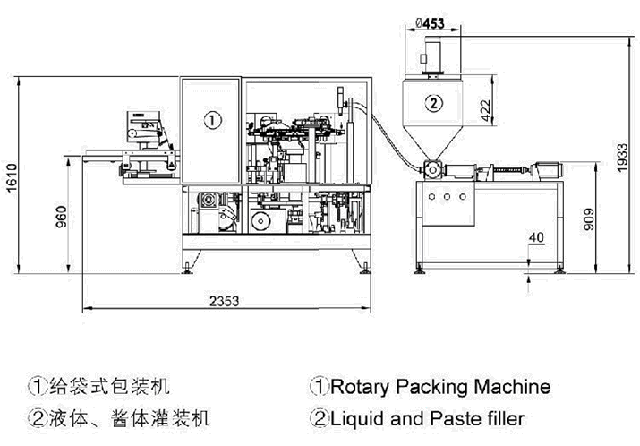

liquid packing machine bag given  (1).gif

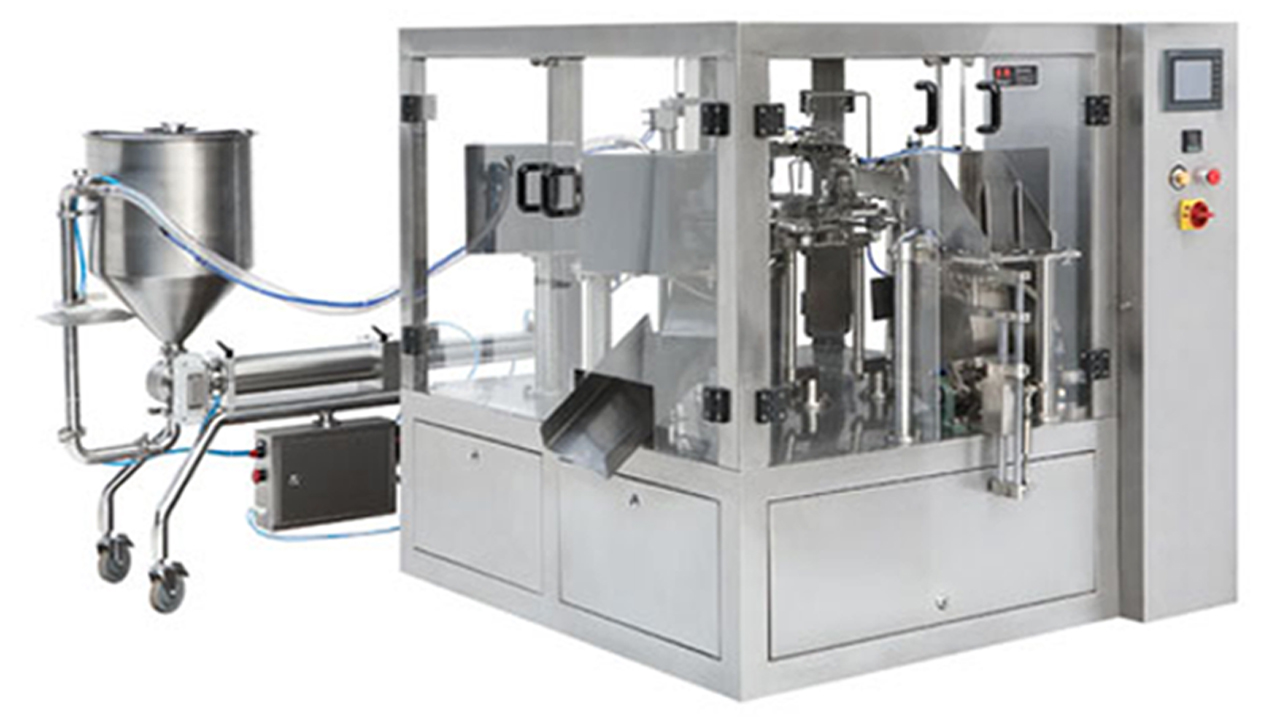

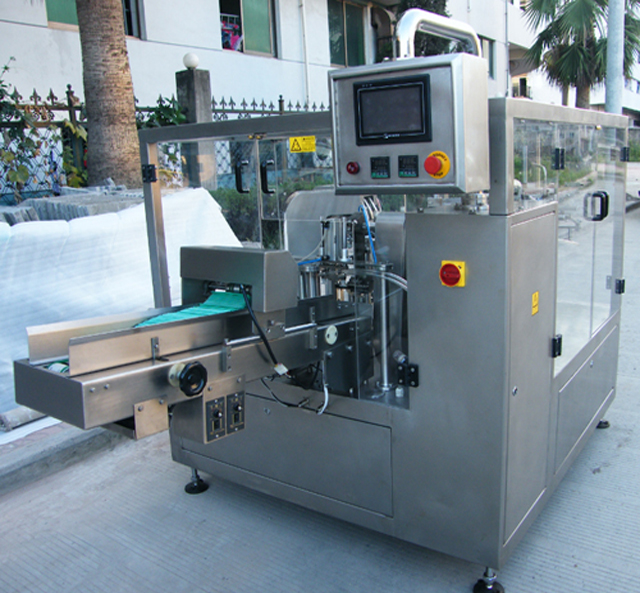

liquid packing machine automatic.jpg

Application:

The machine is widely used in foods, chemicals, pharmaceuticals, seeds and other industrial fields, such as juice, ketchup, detergent, etc.

The honey packing machine production line can be fully automatic operation,

it can achieve product packing assembly line work, and improve production efficiency

and significantly reduce product cost.

The honey packing machine production line conforms to

the food processing machinery's sanitation standard. On the machine, the spare part

which contacts with the material and pouch conforms to the standard of food sanitation

request on material processing, food health and security guarantee.

This honey packing machine production line is suitable for the packing liquid,

the hydrodynamic material, such as detergent, yellow wine, soy sauce, vinegar,

fruit juice, ketchup, peanut thick liquid, jam, hot pepper sauce, thick bean sauce packed in bags.

Feature of packing equipment:

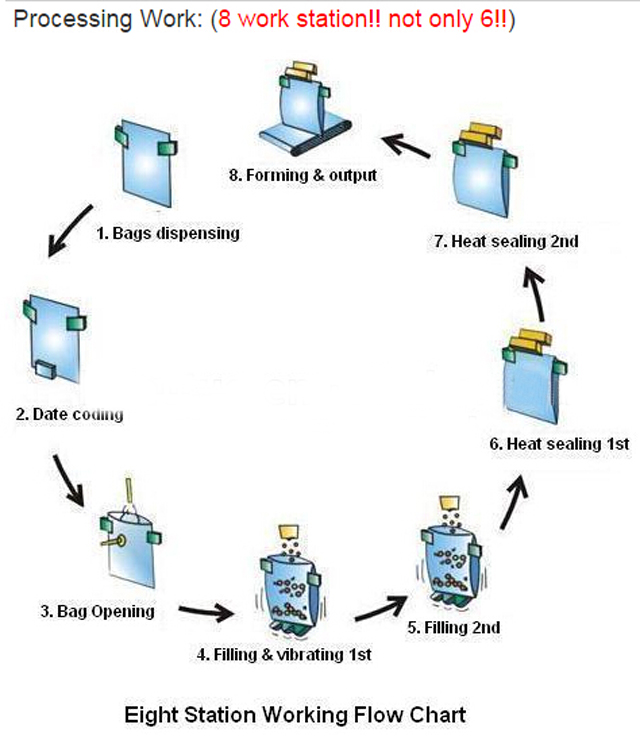

processing work flow.jpg

1. Easy to operate. The machine with Japan Mitsubishi PLC control, man-machine interface

 with touch screen control system, it can be operate easily.

2. Frequency control. The machine with frequency control, the required speed can be

adjustable within the range according to any needs of reality in production.
3. Automatic detection. No pouch or pouch is not opened completely, no feeding, no sealing,

pouch can be reused, avoid wasting materials, it can reduce production costs for user.
4. Safety devices, when the abnormal pressure of work or failure of heating pipe, it will alarm.
5. The width of the bags could be adjusted by electrical motor.

Press the control-button could adjust the width of clips, easily operate, and save time.
6. Part of plastic bearings are imported, no oil, reduce pollution materials
7. Use no oil vacuum pump, avoid polluting the environment in the production.
8. The packing materials loss low, what this machine is used the preformed bag,

 the bag pattern is perfect and has a high quality of the sealing part,

 this improved the product specification.

Main parameter of bags given pouch packing machine :

bag given packaging equipment.jpg



Model

YX-08-300

Packing range(bag size)

Width 100-200mm, Length 100-300mm

Packing Weight

 ≤ 500ml

Capacity

30-50 bag/min (speed depends on filling product &weight)

Packing Precision

error<±1%

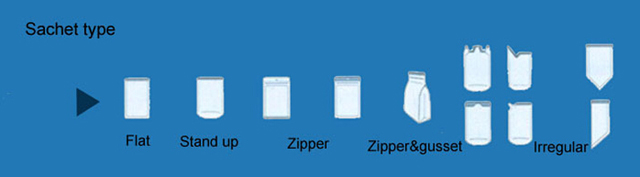

Pouch type

Stand-up bag,Flat bag, paper bag,composite material etc.

Total Power

kw

Compressed Air Consumption

0.6 m3/min

Voltage

3 Phase 380V  50HZ/60HZ

Total Size

(L)2420*(W)1510*(H)1480mm

Machine Weight

1200 kg

Note:

1.According to the customer request,provides the special design.

2.The machine disposition may make the choice.



Divided according to working position



Working position

 6

8

8A

8B

Pouch size

Normal pouch

For

double filling

(such as  liquid

and granule)

For

 stand up pouch

(bottom is thicker

 than 0.1mm)

For

 zipper bag

Pouch material

Laminated film

Pouch pattern

Stand up pouch, flat pouch etc

Speed

30-60pouches/min

Voltage

380V 3PH  50HZ/60HZ

Compress air

0.6m3/min(supply by user)

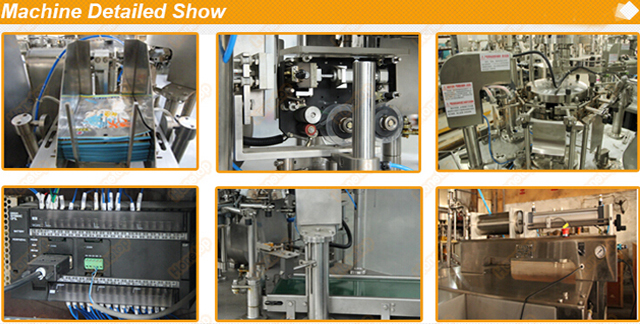

Machine details for bag-given packing process:

machine details bag gfiven packing.jpg

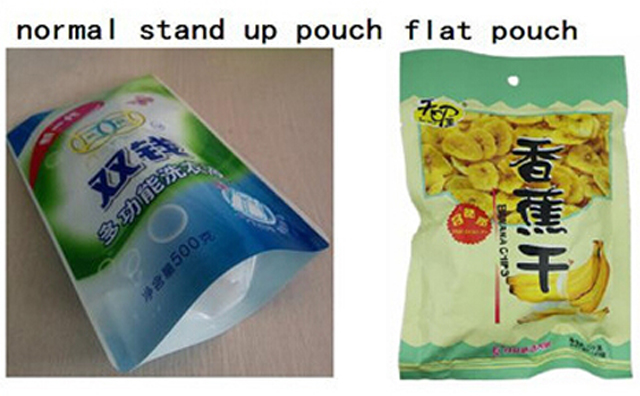

Bag sealing samples:

flat pouch packing machine.jpg

samples pictures for bag given packing.jpg

Different materials decide different metering way for bags-given packing machine:

Powder&granules listed as below respectively:

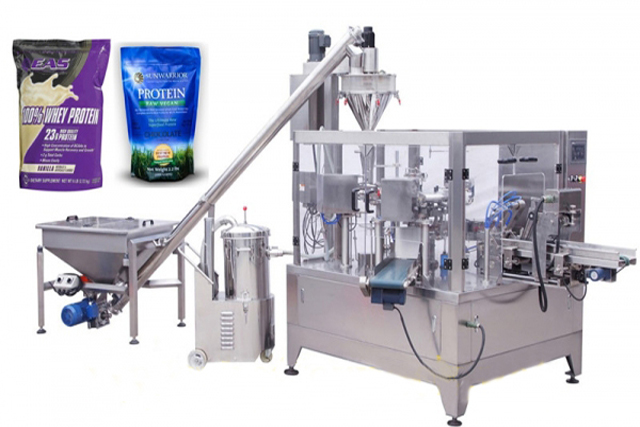

powder packing machine bags given.jpg

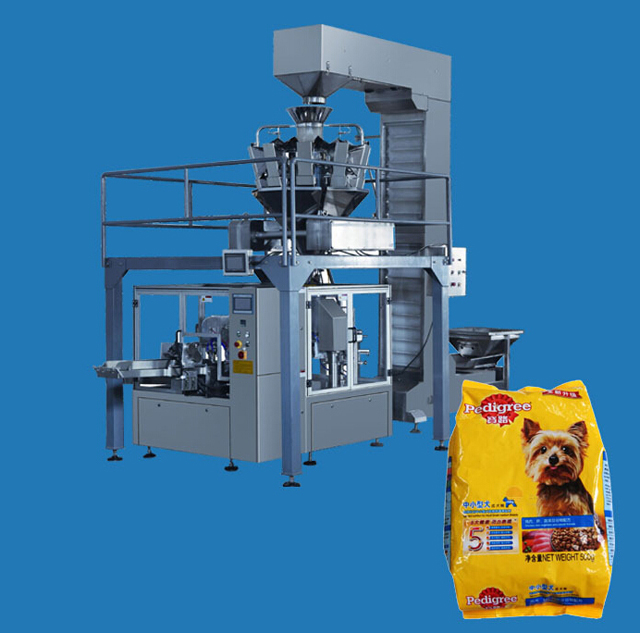

bag given packing machine multiheads.jpg

Service after-sales for doypack filling sealing machine:

1. Pre-sale service : according to customer's requirement , we can supply the factory drawing picture. and  suggestion for building the factory.

2. Pre-sale service: we will test customers' product first to check whether our machine is fit for your product or not, and also will take the video for our customers to check.
3.Installation and Test Running of Machine: We’ll send our technician to install and test run and train operation, according to customer’s requirements. All expense including 2-way ticket, food, hotel and local traffic, will be paid by customer.
4.Guarantee: 3 years. During guarantee period, in case of any trouble of the machine being discovered is not due to operation, and caused by machine-self, the seller will provide the spare parts. After 1 year, the seller will supply the spare parts to buyers as the cost.
