fully automatic sealing machines

automatic canning machine for milk powder tin cans linear sealing equipment for food packaging

automatic canning machine for milk powder tin cans linear sealing equipment for food packaging

Products are suitable for all kinds of tinplate cans,aluminum cans,plastic cans,paper cans

and circular specifications sealing cans.Quality is reliable, easy to operate and lighter,

it is food, beverage, pharmacy, chemical industry and so on essential ideal equipment.

 This machine has two pairs of (four) volumes seam sealing wheel, when the reel body type automatic sealing

equipment. By changing the pressure head model and the corresponding

cylindrical circulartank accessories can seal all kinds ofdjfferent

specifications. So this machine has high production capacity, has a wide use range,

 high degree of automation, adjust the characteristics of convenient

operation and reliable in use. Forcan productionline equipment.

THE PERFORMANCE CHARACTERISTICS 0F automatic canning machine model YX-71AA

automatic canning equipment for sealing machinery.jpg

1 , electrical part of the hostfor the frequency conversion speed oontrol, PLC control, man-machine interface touch frequency operation;

2, can cover the device: when a tank body into, the corresponding distribution of the tank cover, no tank is no cover;

3, no cover down: the moment when the cover is not cover, automatic stop,

not to damage the pressure Head module and damage to the winding machine parts;

4, conveyor belt motor with a single speed control, simple structure, easy operation and maintenance;

5, the housing and the main components are made of 304 stainless steel,

meet the health requirements of food and drug.

Basic parameter of automatic canning machine

equipment for canning.jpg

automatic canning machinery.jpg

Model YX-71AA
Capping head:    1
Capacity 30-35 cans per min
Application range:Cans diameterφ70-φ130mm (customizable)
Cans height  60-190mm  (customizable)
Supply power:380V/3phases/50/60HZ
Power: 3.5KW
Weight:400kg
Size: 2800(L)×800(W)×1500(H)mm

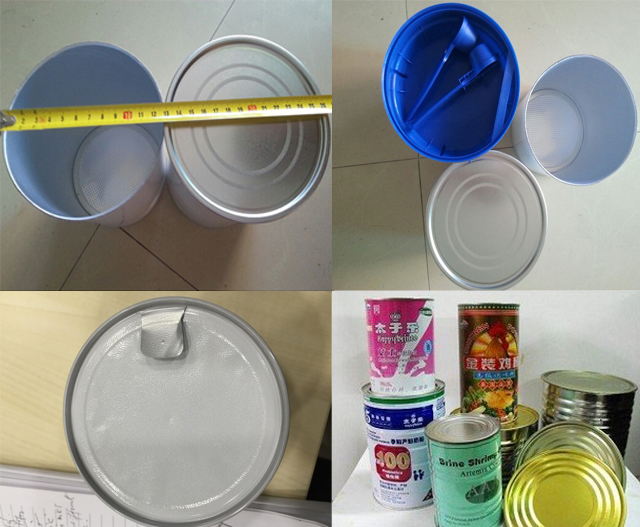

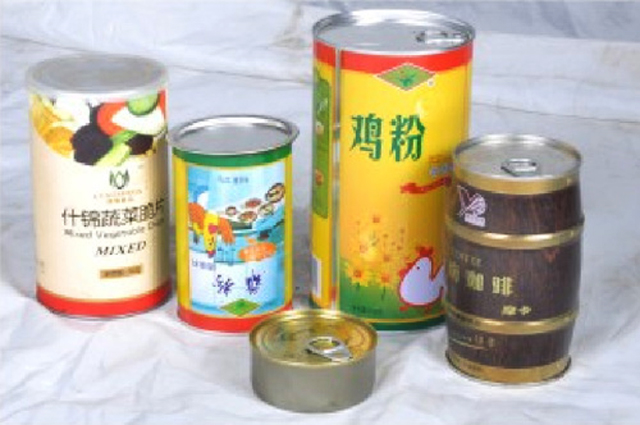

Canning samples for model YX-71AA

cans samples for seaming.jpg

sealing samples.jpg

 There are other machines for canning sealing like model YX-44AA which is equipped with the Nitrogen gas flushing function.

the video is displayed as below :

As well the vacuum canning machine can be integrated with the automatic powder auger filling machine whose video is

on display as below:

After-sales service for automatic cans sealing machine YX series from PENGLAI CORP

after sale service filling machinery.jpg

Mark



@before delivery,machine be tested and adjusted at our factory

@English operation manual and relative spare parts offer

@English operation interface

@delivery term:30% of the amount in advance,finish machine within 25 working days,delivery after the balance paid

@after-sale service:3years guarantee period and lifetime maintenance,as to the fee,damage not caused by personal and within the guarantee period,fix it up for free,otherwise,for charge.
