fully automatic blister encasing cartoning machine pharma machinery carton boxing equipment

fully automatic blister encasing cartoning machine pharma machinery carton boxing equipment

Videos about how to operate&debug the fully automatic cartoning machine model YX-CP series

1. Application:

 It is a continuous motion Cartoner, suitable for the packaging of blisters, bottles, vials,

pillow packs, etc. The machine runs stable and provides easy changeover for different sizes

of cartons. It can fold leaflets, open cartons, insert the products and leaflets into cartons,

emboss, tuck-in or hot-melt closures and automatically discharge cartons. The machine is

equipped with a series of sensors and automatic protective devices to assure the machine

runs safely and effectively. It can connect with the Blister Machine, Pillow Packaging

Machine, Shrink-Wrapper, etc., to form a Packaging Line.

2. Main Function:

Automatic folding(1-4 folding) and conveying of manual leaflet, automatic maternal

categorizing and feeding; automatic paper carton spreading; automatic manual leaflet and

material carton packaging, synchronous (3-row) batch number printing, automatic paper

carton sealing, automatic waster eliminating.

3. Performance and Characteristics:

1). Continuous mechanical feeding materials and carton packing, and working of each

functional part is in harmony, stable and reliable.

2). When materials do not reach correct position, the pusher has an alarm and halt facility

for that, in order to ensure good quality of carton packaging and safety in operation effectively.

3). Constantly moving carton-opening and pulling carton-opening mechanism are more

stable and reliable.

4). Servo material departing and feeding mechanism is stable and reliable.

5). Halt facility for air pressure and vacuum protection, when caster opened, the halt facility

will be checked automatically for operating safety of the machine.

6). It is easy, convenient and quick to change and adjust product size by hand wheel.

7). Variable frequency speed regulation, automatic PLC control, operating on touch screen,

words and numbers display, easy to operate, coefficient run stable.

8). Overload protection for principal driving, indication of failure diagnosis, and automatic

halt of failure.

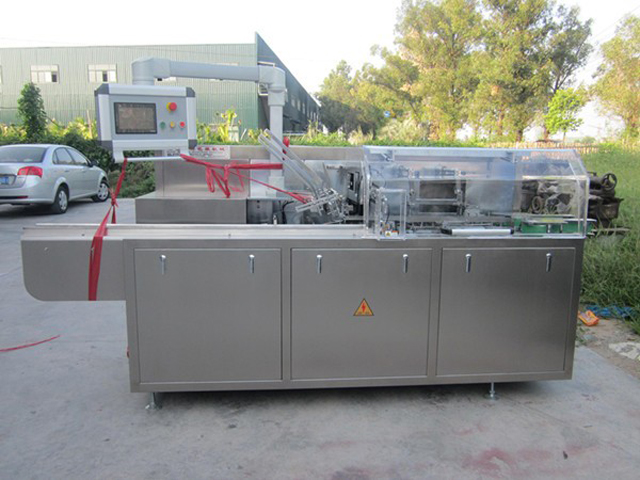

front pictures of cartoning equipment.jpg
automatic cartoning equipment.jpg

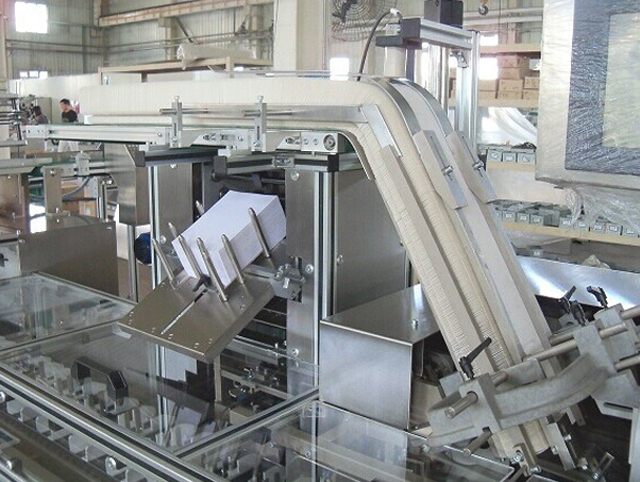

close pictures for cartoning equipment.jpg

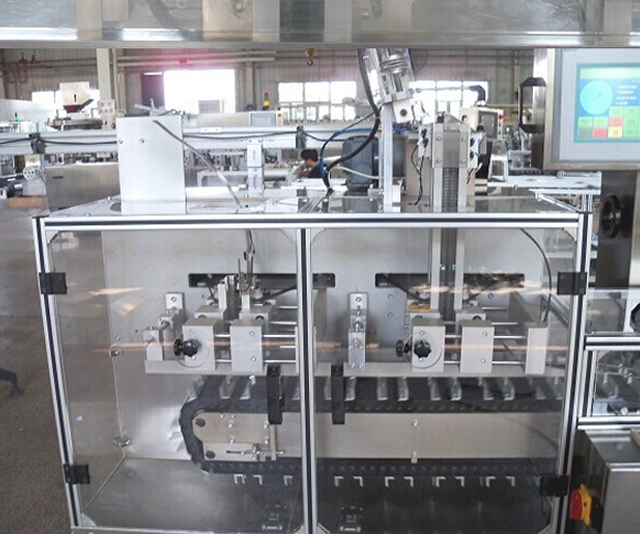

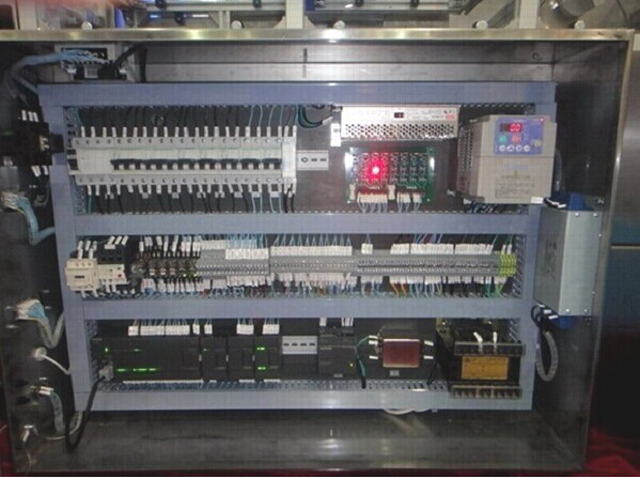

 internal board for cartoning.jpg

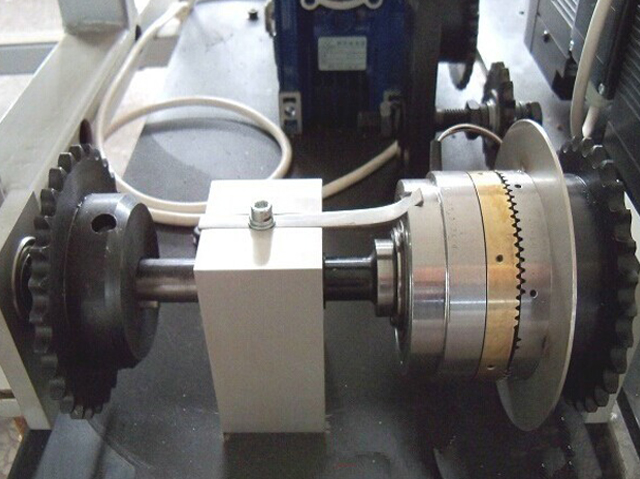

 mechanical structure for boxing machine.jpg

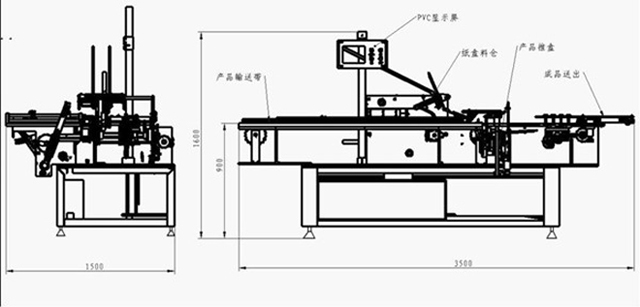

Layout of cartoning machine.jpg

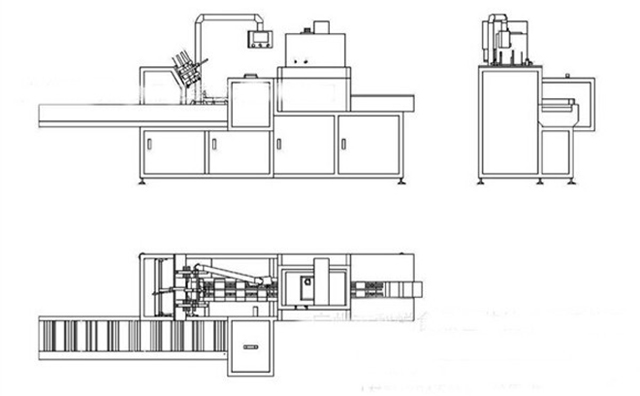

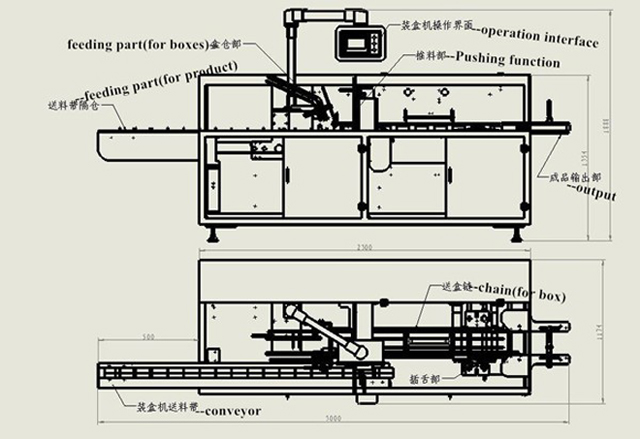

drawing of automatic cartoning.jpg

drawing of automatic cartoning.jpg

Technique parameter of model YX-CP120 cartoning machine

Model

YX-CP-100

YX-CP-80

YX-CP-120

YX-CP-200

Production capacity

50-100

50-100

80-200

Max size of box (mm)

120x70x45

200x80x70

200x120x70

200x80x70

Min size of box (mm)

70x30x15

50x25x12

65x25x15

Specification of box

250-300g/m2

Max size of leaflet

260x180mm

Min size of leaflet

110x100mm

Specification of leaflet

55-65g/m2

Air consumption

20m3/h

Total power

1.5kw

4.1kw

Overall dimension (mm)

1800x960x1700

3200x1320x1700

3700x1350x1700

4500x1460x1800

Weight (kg)

1000

1500

1800

3000

Configuration of automatic cartoning machine

NO

NAME

MODEL

MANUFACTURER

QUATITY

1

PLC

DVP12SC11T

DELTA TAIWAN

1

2

PLC extended module

DVP16SP11R

DELTA TAIWAN

1

3

Encoder

E6B2

OMRON JANPAN

1

4

touch screen

DOP-B05

DELTA TAIWAN

1

5

frequency converter

DVP01521A

DELTA TAIWAN

1

6

photo eye

E3Z-D61

OMRON JANPAN

1

7

Motor

CH-1500-10S 1.5KW

SHANGHAI CHINA

1

8

dividing box

0S83-4L-180

SHANGHAI CHINA

1

9

button

XB2

SCHNEIDER GERMANY

3

10

jerk button

ZB2 BC4D

SCHNEIDER GERMANY

1

11

jerk button

LY2M 24V

ORMON JAPAN

5

12

AC contactor

GML-12

 LG KOREA

1

13

proximity switch

LJ12A3-4-Z1BX

SHANGHAI CHINA

2

14

Shell

stainless steel

SHANGHAI CHINA

1











Samples from model YX-CP series cartoning machines

cartoning machinery.jpg

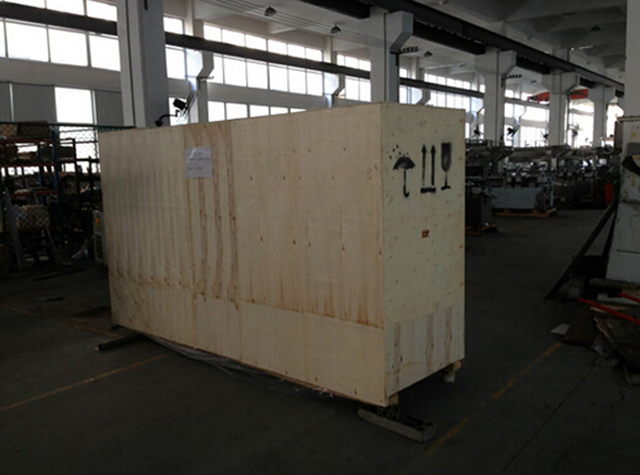

Wooden case packing for cartoning machine

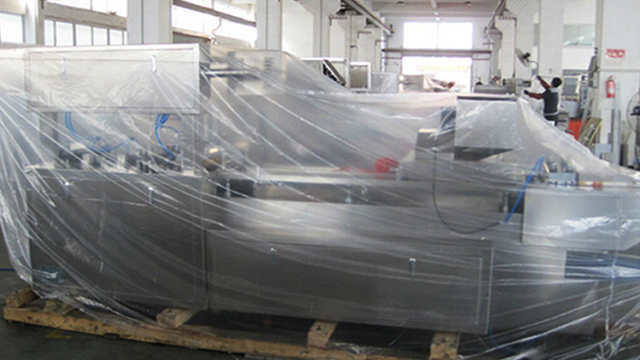

automatic cartoning machinery fully.jpg

wooden case packing for cartoning equipment.jpg
