fully automatic sealing machines

aluminum tubes hose sealing machine fully automatic metal tube folding filling sealer equipment

aluminum tubes hose sealing machine fully automatic metal tube folding filling sealer equipment

This machine is a high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement. It adopts with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries.

fully automatic aluminum metal hose filler sealer machines.j

Product Technical Features

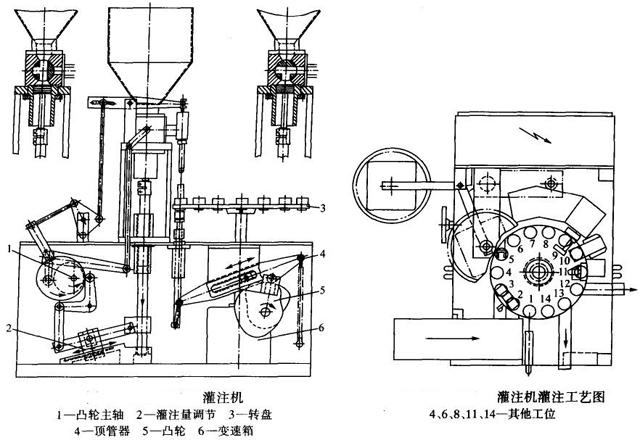

drawing for filling machine process.jpg

1.Cam Shaft ;  2. filling volume adjustment;  3. Rotary plate;   4. tubes pusher;   5. Cam ;  6. Gearbox;

►Operation screen with LCD display PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.
► Automatically executing tube supply, photoelectron register, inert gas filling (optional), material filling and sealing, batch number printing, final products output.

►High precision photoelectron register, reduced the chromatic aberration scope.
►Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
►Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; waring if tube error position, pressure too low, automatic stop machine if open the protective door.

Main technical parameters of model YX-50B fully automatic aluminum tubes filling sealing machine:

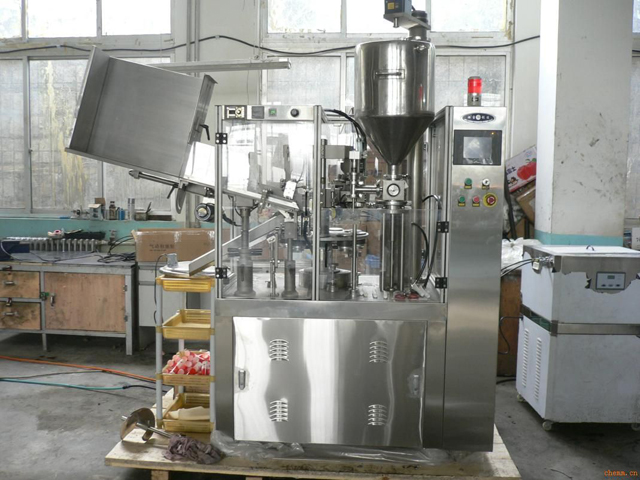

aluminum tube filler sealer.jpg

Product capacity 30-50pcs/min
Filling volume 5-250ml
Filling accuracy ≤±1%
Tube length 50-240
Tube diameter Φ10- Φ50
Tube material Plastic compound tube
Working pressure 0.5-0.6MPa
Compressed Air Consumption 1.1m³/min
Motor Power 1.1KW
Overall dimension 1950*1000*1800mm
Machine weight 850Kg

Details of aluminum tubes filling machine

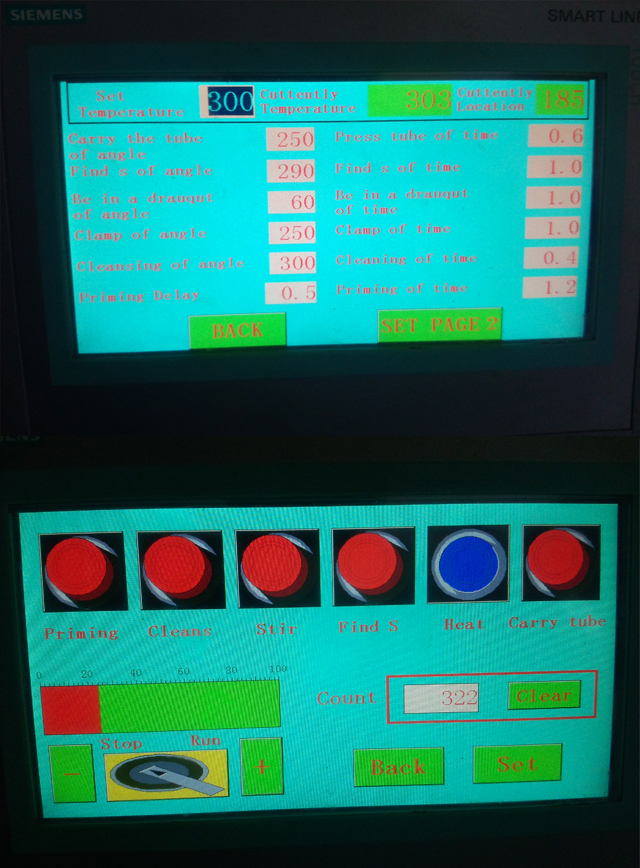

►touch screen information

touch screen for tubes filling sealing.jpg

Internal pictures for aluminum tubes filling sealing machine model YX-50B

inside aluminum tubes sealing.jpg

Spare parts for aluminum tubes filling sealing machinery

tube holders Spare parts for machinery aluminum.jpg

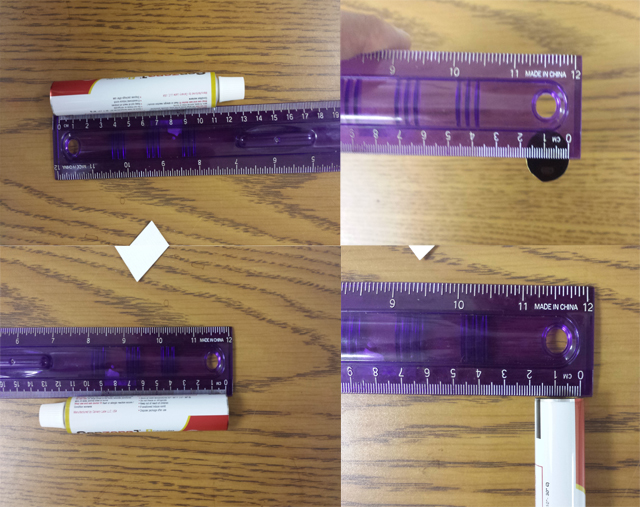

Tubes samples sent from American customer for tubes filling sealing machine:

tubes samples sent from customer.jpg

fully automatic aluminum tubes filling sealing machines.jpg

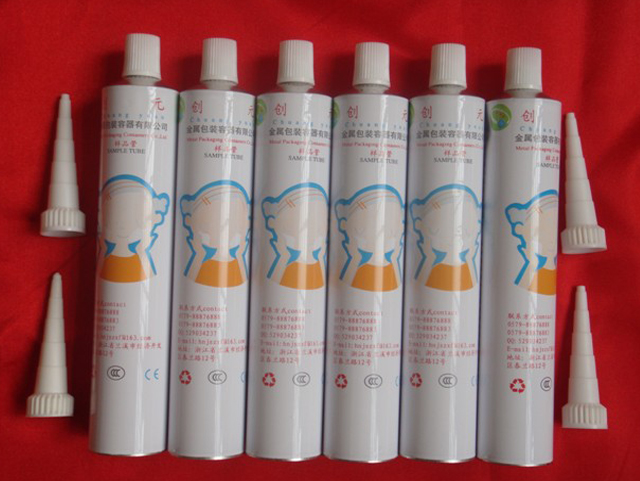

Aluminum hose sealing samples

fully automatic aluminum tubes filling sealing machines samp

Wooden case packing for aluminum tubes filling sealing machinery:

wooden case packing for filling sealing packing machine.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
