perfume making machine

perfume shampoo cosmetic bottles PET glass air washing equipment semi automatic two heads jars washer machinery

perfume shampoo cosmetic bottles PET glass air washing equipment semi automatic two heads jars washer machinery

small movable semi automatic negative ion pet and glass bottle washing machine

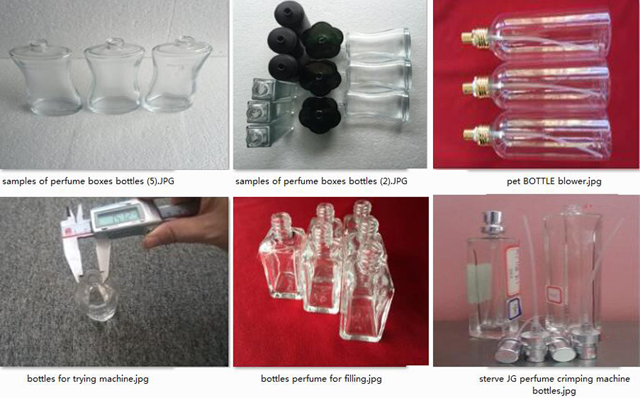

Application:

bottles for washing.jpg

This is the small bottle washing machine. It washes the bottle with negative ion.

Workable bottles: pet bottle cleaning, plastic bottle cleaning, glass bottle cleaing

Advantages of this glass bottle washing machine:

bottles washing equipment.jpg

1. It is designed with low energy consumption. Compared with the water washing machine, it saves a lot of water. And it does not need to dry the bottles.

2. The machine adopts stainless steel 304. The components are international brands: schneider and Omron.

3. It adopts precisive dual filter and negative ion generator to ensure the clean of the bottle.

4. It can be used in food industry, cosmetic industry, pharmaceutical industry, etc.

5. Machine is designed with caster for easy moving; level -adjusting for supporting.

Working Way:

working way for bottles washing.jpg

1. Connect the small bottle washing machine to the air compressor and turn the compressor.

2. Turn the air pressure to  4-6KG/CM² and adjust the height of the bottle seat according to the height of the bottle.

3. Put the bottle upside down on the bottle seat and press the bottle against the bottle seat. At this time, the washing nozzle goes up and the magnetic valve of the air washing will be turned on automatically. Then the negative rion air will be blown into the bottle to washing it. When the set time is up, the machinw stops blowing automatically.

Technical Data of model YX-AW60-A bottles washing machines

bottles washing machinery.jpg

 Item  Description
 Electric Power  220V or 380V, 50Hz
 Power  0.37KW or customized
 Production Capacity  20-40 bottles/min
 Allowable Bottle Mouth   Dia 6-60mm: (can customize according to your bottle)
 Air Pressure   4-6 kg/cm²
 Size   (L*W*H) 600*500*700 mm
 Weight  100KG

 Detailed Pictures of bottle washing machine:

Switch; Auto accounting; the bottle seat; male plug; caster and level-adjusting foot

small movable semi automatic negative ion pet and glass bottle washing machine

fully automatic bottles washing machine integrated with the filling-capping-labeling-cartoning line

Wooden case packing for bottles washing machinery semi automatic:

wooden case packing.jpg
