USA regular customer order for spare parts of powder packing machine vffs packaging equipment bought

Last year our USA customer ordered one (1*)set powder packing machine model YX-240A form fill seal.

this July he wanted to add one bag former for his bags with 6.25" width and also including other heating parts .

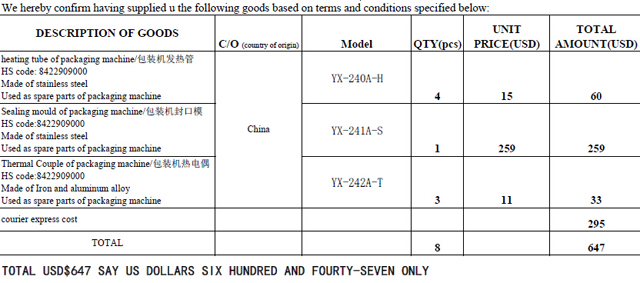

see the machines parts ordered from the part lists :

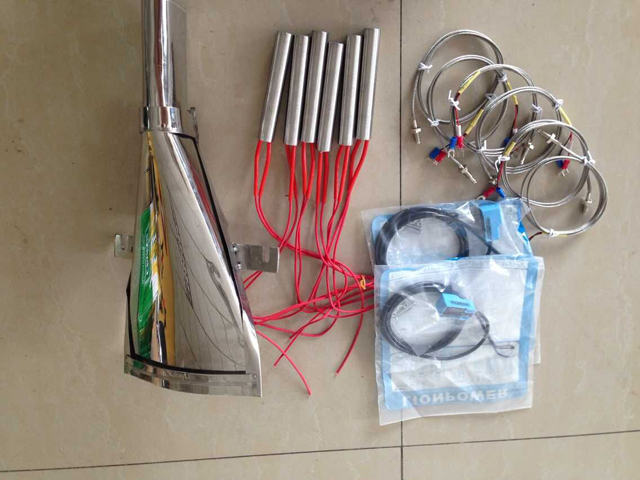

heating parts bag former ordered.jpg

spare parts bag former for packing machine.jpg

Bank copy sent from customer :

wire reference 80USD less should be additional(3).jpg

Videos of how to adjust the bag former with the model YX-240A packing machine powder VFFS:

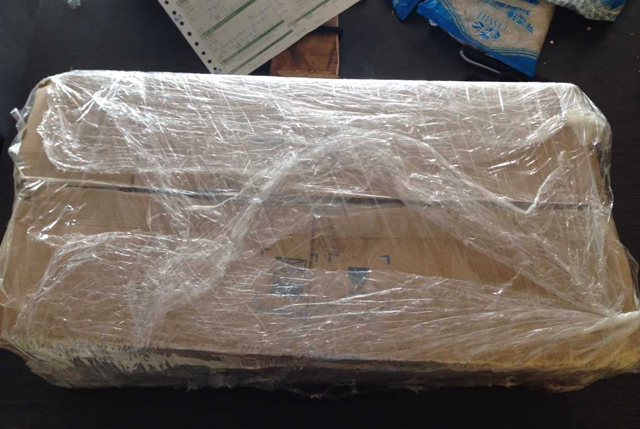

Parcel packing before shipping the parts to America :

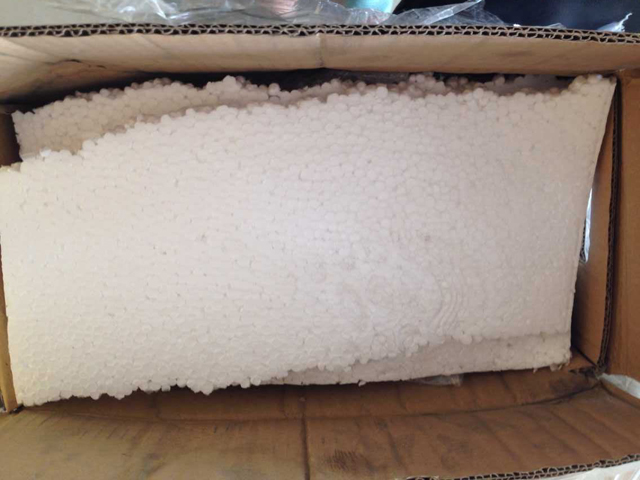

foam wrapping spare parts.jpg

packing for spare parts of model YX-240A VFFS.jpg

As below there is the detailed description of our model YX-240A vertical form fill seal equipment:

The VFFS Packing machine ,model YX-240A Vertical form fill seal equipment poder packaging machinery VFFS packing food volumetric cups auger or multi-head ,

is suitable for packing granular material, such as medical pills, food Stuffs, plant seeds,

washing powder, coffee, sugar, desiccant etc The integrated processes of bag making, measuring filling,

sealing cutting, counting and hot pressing codes can be done automatically.

auger filling machinery for powder with date coding .jpg

The monoblock of auger powder filling packing machine model YX-240A with date coding function

date coding function.jpg

the printer from powder packing machine model YX-240A for Lott # and expiration dates

Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc.

Features of vertical packaging machinery for powder with auger measuring system:

coding function and computer control information.jpg
1. All stainless steel cover meets to GMP standard.
2. Equipped with 8ntipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Photocell controller is easy to manipulate.
5. Automatic self support lubricating system, the machine can work 24 hours

and the maximal capacity is 110 bags/min.
6. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
7. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by  ± 2%.
8. Along with assembling automatic no packing alarm system, help user to  economize cost.
9. Equipped with easy open system.
10. Ink printer and conveyor are as an option.

date ribbon printer for letters printing .JPG

Ink Ribbon printer affliated with the packing machine powder VFFS

bag former for salt packing.jpg

Bag formers for different sizes of bags

the working process:

automatic detection - automatic weighing -  automatic filling - automatic bagging - automatic bag sealing - automatic cutting - automatic counting

Technical Specification of YX-240A series powder packing machines:
auger measuring packing machinery .jpg

Model YX-240A

Capacity

30-60bags/min

Range of measurement

2-100g(should change the screw)

Bag Size

(L)40-150  (W)40-100mm

Accuracy

1-2%

Sealing type

Three/four sides seal/center sealing

Power

1200W

Voltage

380V/50HZ      220V/50-60HZ

Packing material

Paper/the polyethylene,polyester/aluminum foil/polyethylene,nylon/polyethylene,tea filter paper,etc



Net weigh

200kgs

Gross weigh

230kgs

Overall Dimension

(L)730*(W)750*(H)1700mm

After Packing

(L)830*(W)850*(H)1850mm

Sealing way bags from packaging machines vertical for granules
sealing way from packing machines.jpg
Samples packaging from Vertical form fill seal equipment model YX-240A Series

powder filling machines.jpg

powder samples.jpg

sealing way from packing machines.png



Operation on the powder filling packing machines with auger measuring system:

(1) Connect the electricity supply, the clear compressed air according to the machine's requirement, put the case shell on the floor well, adjust the work pressure to 0.6Mpa, fuel charging to the air cylinder and other parts. (advise using pure white oil).
(2) Put the packing materials on the film reel and fix the capsule (printing side facing outer or compound side facing inner). Put the packing materials according to the pictures.
(3) Put on the power switch, the machine is in waiting condition when the indicator light is on.
(4) Attempting to set temperature according to the temperature which the upper temperature controller and the lower temperature controller show when the packing material pass the board.

The instruction of auger measuring system from Powder filling system :

It consists of hopper/stirring system and measuring power screw worked by filling motor . The measurement is decided by the numbers of screw rotation , which can set on the screen of the machine .

pictures of auger filling.png

1. Adjusting the filling time

It is controlled by the wheel installed in the main axis , that is the signal will be delivered by the trigger head when sealing .

2. Adjusting the filling volume

auger filling system.jpg

Entering the setting state on the screen , adjusting the filling volume by change the parameters , and try fill working when have set the parameters , then check out the results between tried and demand parameters , and then alter the parameters to match it .

And the filling volume has close relation with the filling screw , for the common , factory will design the filling screw on the clients’ packing demands about the packing raw materials and packing volume . The bigger of the filling screw , the more of the filling volume . And the filling screw has the following types :

auger filling measuring in details.png

0#for:50ml~100ml                  1# for:30ml~50ml

2#for: 10ml~30ml                  3# for:5ml~20ml

4#for: 5ml~10ml                   5# for:1ml~5ml

Customizable machine:

We have Great customized and design ability. Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost, making your packaging system works smoothly.

Packaging of packing machines for delivery

WATER PACKING before ocean shipping.jpg

Installation:

1.We provide videos and instruction manual to show the process of  installation.

2.We provide training for installation for free in our factory.

3.We can send technician to buyer's factory to install the machine and provide training service.

After Sales Service:

►One year quality warranty and free lifetime technique support.

►Free spare parts would be supplied if machine broken within warranty period.

►After the warranty period, the spare parts for replacement are offered based on certain charge.
