Mr Edward from NY purchased 350L vacuum emulsifiers blending tank with load cell weighing system

Our US customer from NY purchased one(1*) set  of vacuum emulsifier machine which has the basic requirements according to the contract as below:

350L mixing tank model YX-VME350L
Mark for the 300L mixing tank
Main 350 liter316 SS vacuum scraper tank
Load cell weight information
 Homogenizer
220 liter water pot with electric heating
Control Panel
After one month's careful manufacturing of vacuum  emulsifier we finally finished the production of   vacuum mixer 350l model YX-VME350L .
Before delivery we have sent the test-run of the machine video&pictures to our customer getting their  positive feedback then prepared for the
ocean shipping for the buyer by ourselves under incoterms CIF
As below is the basic info for the transaction:

Payment Bank slip Copy for vacuum mixing machine 350L customized mixer with load cell weighing system

purchase order from US customers.jpg

Testing run of video for model YX-VME350 vacuum emulsifier cream honey paste mixing euqipment

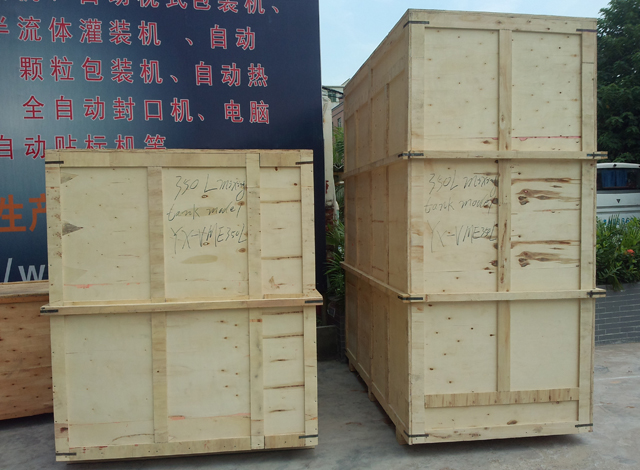

Wooden crate packaging before ocean shipping to NY for vacuum emulsifier equipment 350L

wooden case packaging machines.jpg

As follow is the basic description of vacuum emulsifier YX-VME series customized mixer for our USA customer accordingly

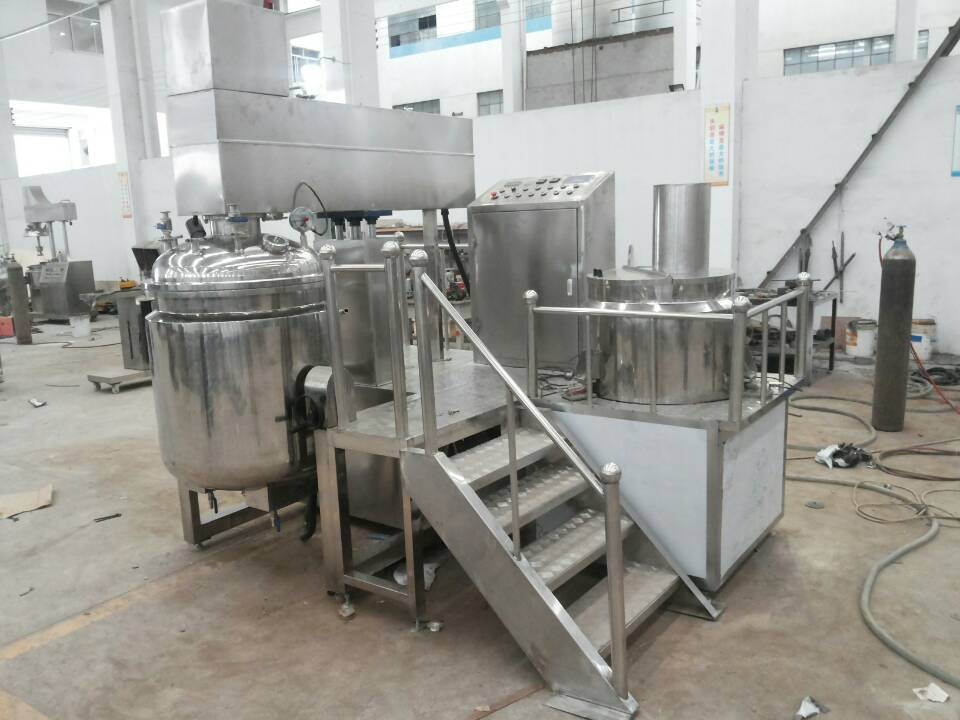

emulsifier vacuum for cream.jpg

YX-VME series vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through
introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump, 350L Vacuum Emulsifier
hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
Use
It is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants. The emulsifying effect is more prominent for materials
of high base viscosity and high solid content.

Advantage
load cell display for emulsifier.jpg
This series machine mixer adopt two speed on one shaft. Hydraulic System,homogenizer speed
0—3500 r/min (speed controlled),stirring speed 0—63 r/min(speed controlled).Vacuum suck
material. all the process under vacuum state.CIP system is provided, all contact material parts adopt SUS316L,lnner jacket polishing reach 300EMSH(sanitation grade)vacuum Dump adopt German Nash-elmo (former Siemens)technology.Meet GMP requirement.

Basic parameter of 350L Vacuum Emulsifier customized mixer for honey-cream mixer
with vitamin in USA customers' production line

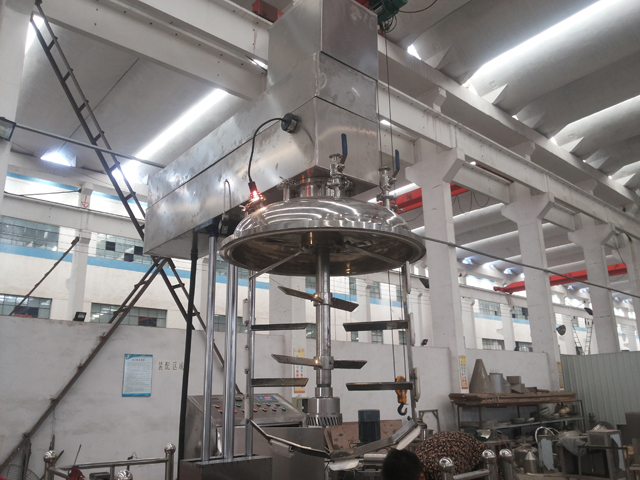

scraped agitator.jpg
emulsifier vacuum for cream.jpg

1.Main Boiler (Double Layer)

No

Item

Configuration and Parameters

Mark

1.1

Volume

Overall volume:330L;Working Volume:300L

Loading Coefficiency 0.8

1.2

Heating

Steam heating  Power:13KW



1.3

Basic Structure

Double Layer,Lifting cover,tilte the tank to discharge,

scraped agitatorin the upperside,
Homogenizer lowerside



 1.4

Tank

Material contact later:SUS316L;

Thickness:6mm; Jacket 6mm;

Outer:SUS304,Thickness:2.5mm

Total Thickness:50mm

1.5

Cover

Material filter,Vacuum Pressure meter,

Vacuum Exhaust Valve,Vacuum Port,sight glass light,

Vision window,inlet,perfume Hopper;

No Dead space,
Sanitory Valve

1.6

agitator

scraped

SUS316L

Stirring coefficiency:

Stirrer motor:5.5KW,Speed:0~63R/M;

Motor(SIEMENS),
Delta Converter

1.7

Homogeneous Way

Installation,internal circulation;

SUS316L

Homogeneous
coefficiency

Motor Power11KW,Rotating speed 3000R/M

Motor(SIEMENS)

Processing

Rotor and Stator in Wire cutting,assembled after polishing

Balance process axle

1.8

sealing

Burgmann Machinery Seal,Japan NSK Rolling Bearing;



1.9

polishing

In&outside hygiene grades,conforming GMP standard

S320U

2.Water Boiler

2.1

Volume

220L volume

Loading Coefficiency 0.8

2.2

Heating

Steam heating,Tap water cooling

Power 0.55KW

2.3

Construction

three layers,down stirring,Botton outlet



2.4

Material

Inner:SUS316,Thickness 3mm

SGS certificated

Jacket:Q235B 5mm thickness

Total Thickness:50mm

Outer shell: SUS304,2mm thickness

Heat Preservatory:Silicon

Sulphate

2.5

Agitation

down blending,power 2.2KW,0-64r/m

Siemens

2.6

polishing

300EMSH,GMP standard

320U


Spare parts for vacuum emulsifier 350L  model YX-VME series
cream making process homogenizer.jpg

Item

Number

Temperature Controller

2

Heating rods

2

thermocouple

2

O circle

2

O-circle Small

2

Bearing

2

Bearing Small

2


Ocean shipping delivery for vacuum emulsifiers
packing wooden case for shrink tunnel.jpg
After-sale service&guarantee for vacuum emulsifier machine customized with only 220L water tank load cell system

 PAYMENT TERMS SMALL .jpg

Guarantee: for all the machine, it claims one year for guarantee.



(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
