fully automatic labeling machine

Automatic Wet Glue Labeling Machine rotary cold paste labeler equipment for round flat plastic glass bottles

Automatic Wet Glue Labeling Machine rotary cold paste labeler equipment for round flat plastic glass bottles

model YX-RL04 Wet Glue Labeling Machine automatic rotary cold paste labeler equipment high speed flat round bottle cola fría máquina de etiquetado designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like glue labeling equipments and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.

The fully automatic rotary double stations cold glue labeling machine suits for different industries for beer, white spirit, wine, health wine, seasoning, cosmetics, medicine, cans and others. It is usually equipped with two stations, and can be labeled in the fixed position with the productivity of 3000-15000 bottles/hour. It is essential to satisfy the upgrading of the whole production line and improve the production appearance.
basic parameter of model YX-RL04 Wet Glue Labeling Machine automatic rotary cold paste labeler equipment high speed flat round bottle cola fría máquina de etiquetadoThe different between non-sticker labeling and wet glue labeling machinery

The difference between wet cold glue and non sticker for labeling:

wet cold glue.jpg

Wet glue labeling machine use ordinary bond paper(80g or 90g single copper). Surface coating can be carried out the wax,

oil or UV coating treatment volts according to the requirements of customers, to keep the label fat when stored, laminating labels should not be saved due to the formation,

and it will influence speed because of winter temperatures, it is recommended not to use this surface treatment.
Wet glue labeling machine is suitable for all standard cylindrical container between the diameter from 30mm-100mm, it is easy to change mould and operate.
Wet glue labeling machine have more advantafe than adhesive sticker labeling machine; same size label, sticker labeling machine used as 4cents RMB per piece,

wet glue labeling machine label is less than 1cent RMB per piece, can save about 2-3 times higher than the node cost.
But adhesive sticker labeling machine also have more advantage than wet glue labeling machine; linear current domestic cold glue labeling machine

just can paste for srandard round bottle, but sticker labeling machine can be affixed to a greater variety of bottle-shaped, but also can not complete all shape bottle in the same machine.

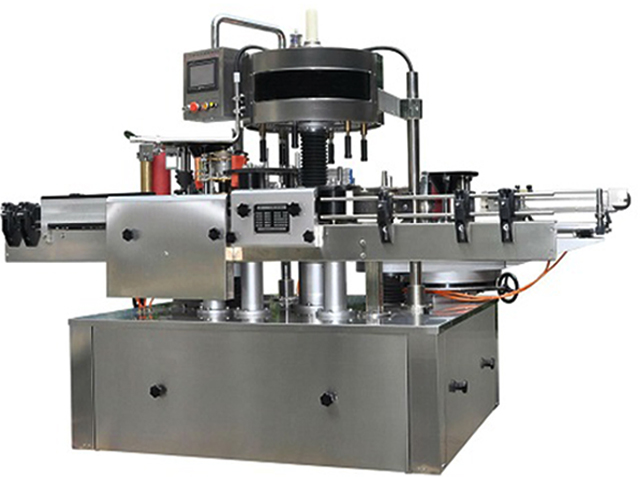

Rotary labeling machine wetglue labeller

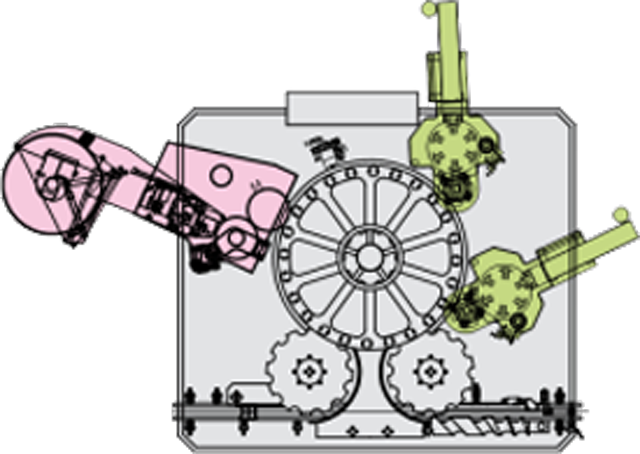

wet glue labeling CAD.png

rotary labeller.JPG
Model YX-RL04
Main motor power 3kw Main motor SEW
Main voltage 380±10% V Frequency 50 Hz
Label type body label, back label,neck label
Suitable bottle type round&Flat bottle:35~100,H=140~350
Maximum label width 145 mm Pressure bottle  10
No. of taking label plate 4
No. of drum location 4
Adjustable speed range 3000-12000  bottles/hour
Dimension(length*width*height) 2290*1930*2150 (mm)
Weight About 3500kg
Compressed air consumption 0.08M3/min(0.6Mpa;no oil)
Label wastage ≤1‰
Electrical Configration
Touch screen  SIEMENS
PLC  SIEMENS
Frequency converter  SCHNEIDER
Photoelectric sensor  LEUZE
Encoder  SICK
Low voltage apparatus  SCHNEIDER

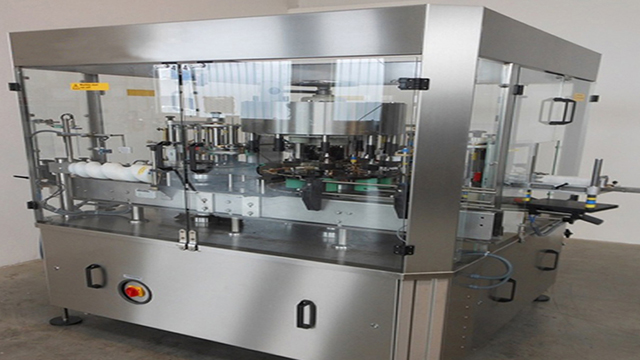

rotary labeller.JPG
Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like model YX-RL04 Wet Glue Labeling Machine automatic rotary cold paste labeler equipment high speed flat round bottle cola fría máquina de etiquetado ,please email via jackdu999@yahoo.com or browse our website http://penglaichina.com.

labeller equipment automatic.jpg
Watch us on Youtube:http://youtube.com/user/penglaichina
Follow us on News Center:http://www.penglaichina.com/news/
Skype us by :turnanewleaf
Call us via:0086-15811882441
Whatsapp:0086-15811882441
