Semi automtatic screw capping machine

semi automatic metal caps R.O.P.P capping machine wine glass bottles threaded capper equipment

semi automatic metal caps R.O.P.P capping machine wine glass bottles threaded capper equipment

The semi automatic capping machine model YX-RC370  is suitable for packaging volume of aluminum caps. The machine compared with other similar products is notable with the advantages: First, using a four-claw head balance-type for sealing the caps in uniform force; the second is having to make the shape of the bottle by bottle deformation, and then rolling thread flange sealing function. Also, the machine has a beautiful appearance, compact structure, reasonable design, stable operation, low noise, sealing speed, good sealing quality, and suitable for all kinds of wineries, beverage plants, breweries, pharmaceutical plants and other production companies. While the machine is multifunctional by changing different head parts to seal different kinds of caps like three anti-plastic cover cap and cover, chrysanthemum cover.

Working principle of machine: Drive the rotation of main shaft from the dynamic of motor by the gear reducer; The rotation among curve camshafts is converted into the force which drives the capping head to move upward and downward; At the same time the gear reduce drives the curve camshaft in the bottom to make the star wheel move intermittently which matches up with the up-and-down movement of capping head. The upper variable speed motor let the capping head works by driving the belt; When the star wheel rotates the bottles below the capping head which punches the binding face between cap inner liner and bottle mouth; Meanwhile the fit thread screw is completed from the the flanging and rolling pilfer proof ring. Finally the perfect capping effect comes out.

Basic parameter of semi automatic capping machine metal caps capper:

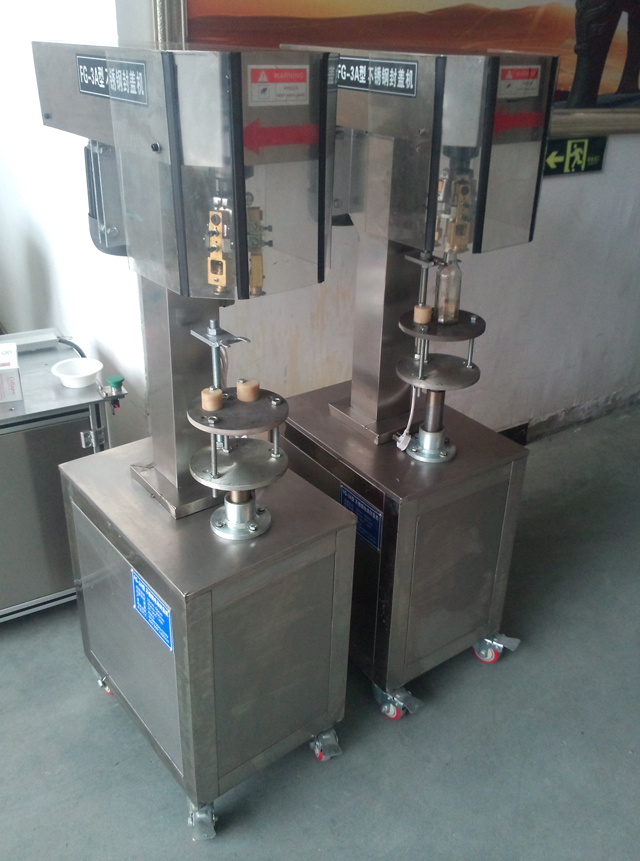

model YX-RC370 capping machine.jpg

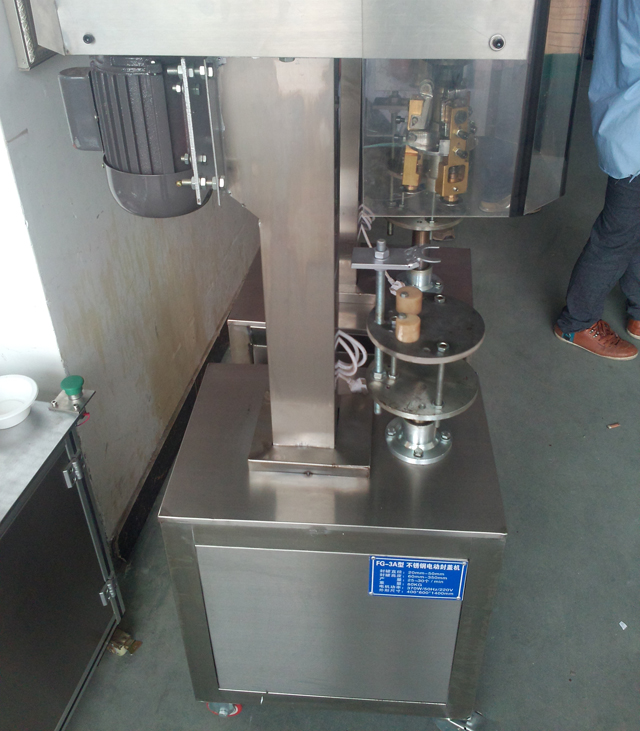

lateral pictures for capping machine.jpg

cans capping machine wine bottles.jpg

Model YX-RC370
Power supply: AC 220V-240V /50-60HZ;/110V/60HZ

Bottles diameter :18mm-50mm

Bottles height:80mm-350mm
Rated power input (W): 370; 1430r/min

Weight:150kg
Production Capacity: 1000-1400 bottles/ hour

Size:860*700*1650mm

How to change the ROPP head according to different diameters of bottles :

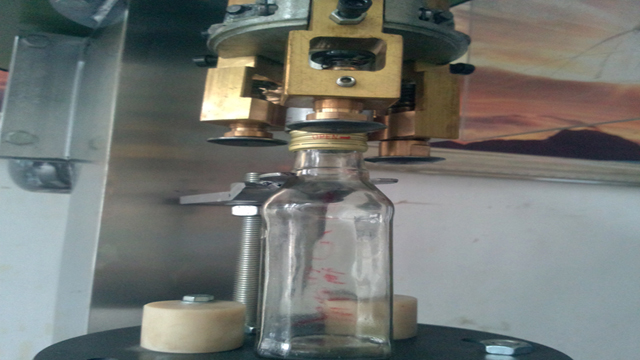

ROPP caps capper equipment model YX-RC370.jpg

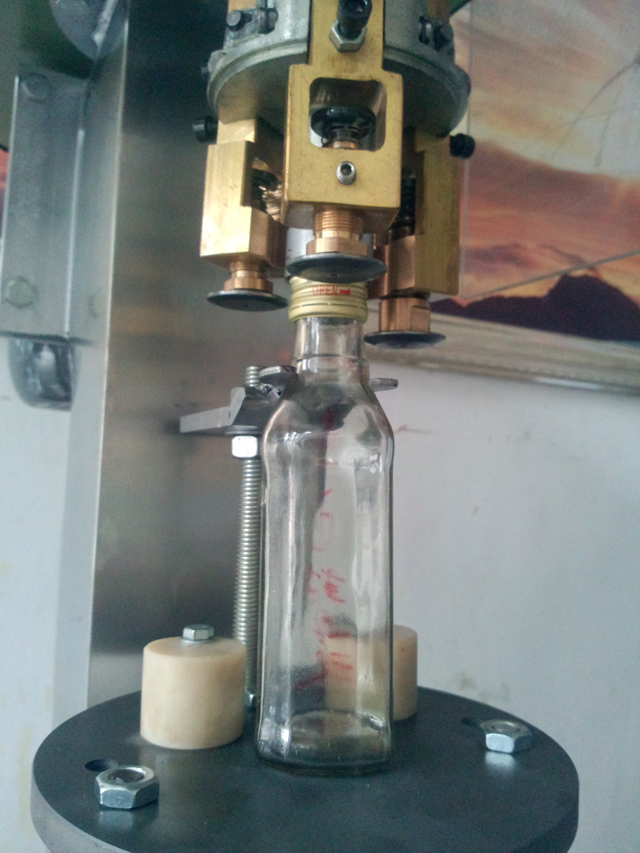

ROPP capping.jpg

The machine should be re-adjusted when different bottles are changed.

There are several capping heads in the machine for different sizes of bottles .Choose the matched capping head according to the certain bottle.

To change capping head: Loose the fixing nuts from the top of capping head to dissemble the whole set of capping head ,then adjust the new capping head until the perfect effect turns out.The punch of capping head is the left-hand thread screw.

The torque for the pilfer-proof aluminum caps should vary from 1.1NM to 2.2NM; When the product is the gas-infilling drinks the air pressure should be no less than 0.3Mpa;

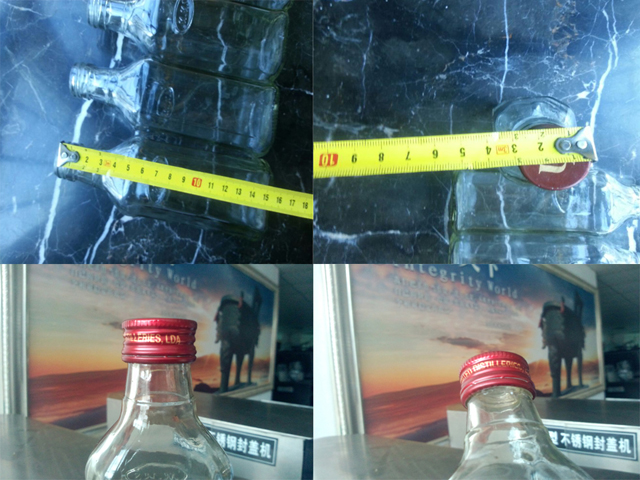

Samples final ROPP capping:

caps samples.jpg

Notice

①Never do the repairing work or any other unusual operation on the machine without cutting off the supply power! The human safety is first important!

②after being installed must be connected with the  ground wire. Power connection should conform to the safety rules and anticreeping requirements.

③The lubricate oil in the gear reducer should be changed at a certain period (generally speaking change the oil every 300hours; the oil should be the HL-200 type );
