New Zealand Regular customer another order for model YX-006 plastic tubes ultrasonic sealing machine ultrasound hose wielding equipment

Thanks for our customer Mr Sam from NZ who ordered another machine ultrasonic sealing machine from us,another order after powder filling machine model YX-F02.

after confirming the payment from our buyer we soon finished manufacturing of sealing machine model YX-006 .
After checking the videos&pictures for the machine
our friend is rather satisfied at our sealing machine quality.

As below there is the basic information for this sucessful international transaction:

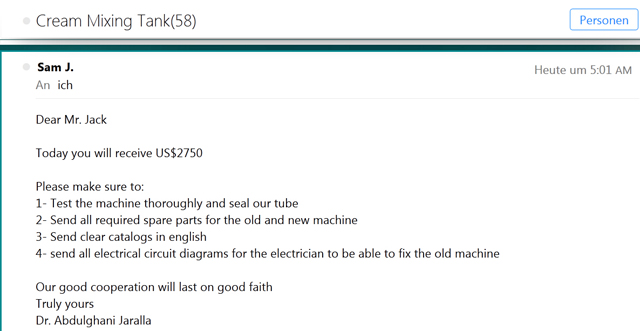

Payment proof for model YX-006 ultrasounic tubes sealer:

aaj fuer 006.jpg

Tubes samples sent from customer New zealand:

tubes for ultrasound sealer.jpg

Testing run of video for model YX-006 ultrasonic tubes sealing machine:

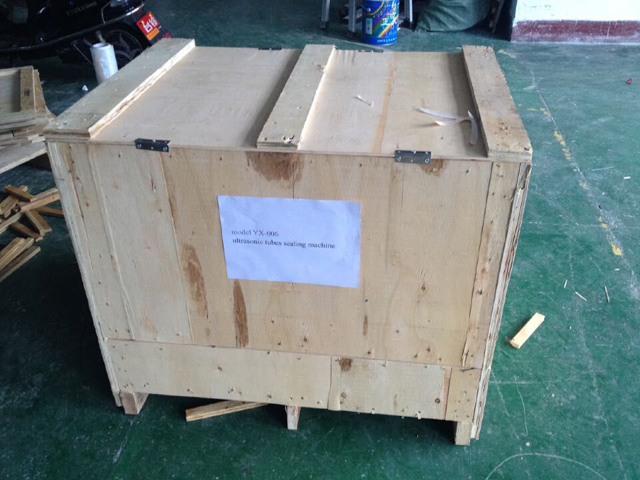

Wooden case packing before shipping sealing machine to New zealand buyer:
sealing machine in case for New zealand customer.jpg

As below there is basic information for model YX-006 ultrasound tubes sealing machine:

Model YX-006 Ultrasonic Plastic Tube Sealer can weld the tail of soft tube. It's wildly used in cosmetic, toothpaste, commodity, medicine,

chemical, and other types of tube tail sealing.

The model YX-006 Ultrasound tubes sealer machine is the products latest developed from our factory .Compared with the model YX-005

which is also one of the best-selling sealing machine from china manufacturer ,the model YX-006 is prior

in advantage in stability opeation/ easier maintenance as well as appeance with PLC touch screen controlling system .

As below is the latest sealing machine stainless steel ultrasonic tubes sealing machines model YX-006

plc sealer ultrasound (1).jpg

plc sealer ultrasound (3).jpg

plc sealer ultrasound (3).jpg

►drawing of Ultrasonic Tube Sealer model YX-005 With button controlling system old version sealing machine:



Ultrasonic Tube Sealer

Ultrasonic tubes sealing machine model YX-006 Added with protective chamber

new zealand customer for ultrasonic tubes sealer (2).jpg

►Special  Function of Ultrasonic Tube Sealer

Ultrasonic Tube Sealer

►Main features

1. Easy to operate and maintain.

2.Automatic positioning, welding, cutting and trimming, printing code in one time.
3.. Stainless steel machine body, strong and beautiful,

4,The machine small enough to be put on worktable.

5. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
6. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
7. Ultrasonic frequency can meet international standard, no harmful to human being or environment

8. Ultrasonic Tube Sealer can be work in time, not need wait the heat time .

5.  Ultrasonic Tube Sealer Package :

ultrasonic tubes sealing equipment.jpg

►Spare parts list from Model YX-006 Ultrasonic tubes sealing machine :

spare parts for ultrasonic sealing.jpg

printer and mold.jpg

►Basic parameter of model YX-006 Plastic tubes sealer equipment semi automatic:

Items

Parameter

Model

YX-006

Frequency:

20Khz

Ultrasonic power:

1500W

Power Voltage

 AC220V/50Hz

Output power

1200W

Length of tube

50-250mm

   sealing Dia

10-80 mm

Time adjust:

Electronic adjust

N.W/G.W

110KGS/126KGS

H.S code:

 8515800090

Pack size

1050×760×790mm(0.33 CBM)

Pack

Plywood wooden case

Spare parts for model YX-006 ultrasound sealing machines:

spare parts list in free for sealing machine.jpg

new zealand customer for ultrasonic tubes sealer (2).jpg

Application: toothpaste, cosmetics, medicines, food, industrial supplies,

tubes samples from ultrasonic.jpg

tubes sealing from thailand customer.jpg

tubes samples from ultrasonic.jpg



ultrasonic tubes sealer machines.jpg

plc sealer ultrasound (3).jpg

►Feedback from customers worldwide

feedback from custoemr.jpg

►FAQ about ultrasonic tubes sealing machine model YX-006

1.If i order this machine , how to operation it ?

Answer:  Ultrasonic Tube Sealer  is easy and simple operation, you just connect the electricity , and air compress machine

2.About Guarantee:

Answer: one year. The supplier can replace only the elements that are imperfect for material or handwork. Replacement is free.

All imperfect elements have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts.

Replacement handwork is excluded and it will be done by the buyer.

The supplier is not responsible for any rewards for, damages or last earnings met by buyer.

Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.

3.Do you have other model ?

Answer: Of course . we have semi-automatic type (YX-006) and Automatic filling and sealing machine for you .

Please view our Home page .

4.What is the power supply?

Answer : we can design according to your inquiry . usually it is :220V/ 1 phase . 110V/single phase.

5.Is this machine need mould ?

Answer: yes it need mould . The machine will one pc welding mould free in charge.

►Shipping &delivery for PENGLAI SEALING Machines

ultrasound sealing machine model YX-006.jpg

shipping for mixing filler equipment.jpg
