Shampoo making machines

Shampoo bags multilanes packing integrated line with boxes cartoning machine fully automatic packaging solution

Shampoo bags multilanes packing integrated line with boxes cartoning machine fully automatic packaging solution

The line integrated includes two main machine : one is liquid packaging machine multilanes model YX-M520; the other automatic cartoning machine,whose basic data is given as below :

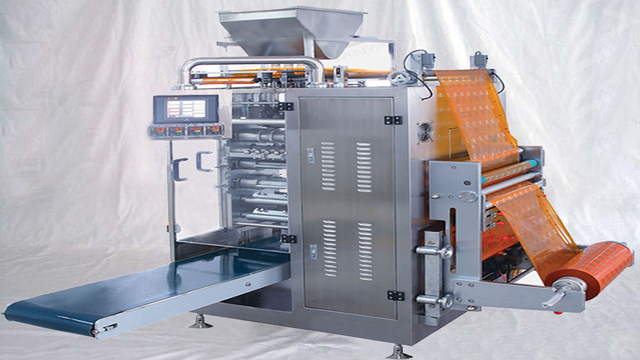

Multilanes sachet packing machine for shampoo liquid

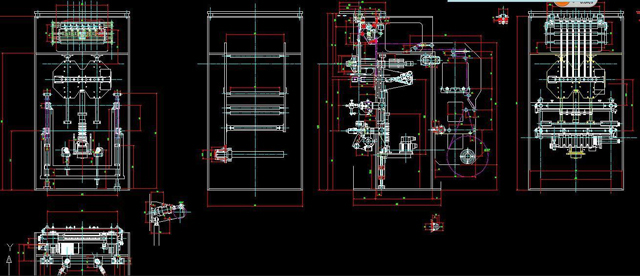

drawing of multilane packaging euqipment.jpg

granules packing high speed.jpg

Model YX-M520
Measuring Volume cups
Bag style Stick sachets
Dosage 1-100ml/bag
Bag size (mm) L30-140
Single lane film width:30-60mm
Capacity(bags/min) 100-410
Control style PLC+ Chinese/ English screen
Pneumatic request 0.24cbm/min, 0.6Mpa
Power 3KW-12KW
Voltage AC380v 3 phases 50Hz
Bodyshell Sheet steel spray painted / Stainless steel
Weight 650KG
Dimension (LWH/cm) L210 W140 H200

It is used widely for variety of applications ranging from packing liquid, semi liquid (shampoo, oil cream, ketchup) & powder products (Detergent powder, Tea, sugar, salt etc.)Adding to its versatility, the High Speed Multi-Lane sachet
packaging machine series can be integrated with most fillers
such as slider filler, piston filler and viscous paste filler.
basic parameter of cartoning machine model YX-CP100:

automatic cartoning drawing.png
model YX-CP100
Encasing speed 30-120 case/min
Box Quality requirement 250-350g/m*m
Dimension range (L× W× H) (50-180)mm* (30-85)mm* (15-50)mm
Leaflet
Quality requirement 50-65g/m²
Unfolded leaflet specification L× W (80-300)mm*(70-210)mm
Folded leafilet specification(1-4)*(L× W) (70-210)mm*(20-40)mm
Compressed air Working pressure 0.5-0.7mpa
Air consumption 120-160L/min
Power supply 220V 50HZ
Motor power 1.5kw
Machine dimension(L× W× H) 3200mm* 1200mm* 1900mm
Machine weight 1500kg

cartoning machines.jpg
This is mainly used in medicine, food, health care products, cosmetics, audio-visual products, and other industries square exterior decoration items boxed packaging. Such as kit, gum, health products, tea, sugar, condoms, rubber, mosquito coils, cigarettes, tape, VCD (CD) CD, playing cards, transparent soap, square battery, floppy disks, etc. play a security, the role of moisture, and improve product quality, increase product added value. The machine can use in the production line, work with the carton packing machine.

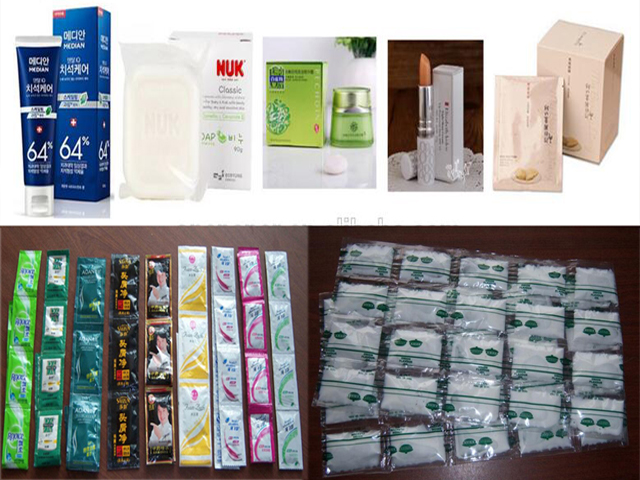

Samples for liquid bags into boxes :

lotion bags samples for packaging equipment.jpg

After-sales service for packing machinery PENGLAI
Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
