fully automatic filling machine

E liquid cig juice bottles feeding turntable filling caps falling capping labeling machinery fully automatic filler equipment

E liquid cig juice bottles feeding turntable filling caps falling capping labeling machinery fully automatic filler equipment

The bottles filling capping line consists of four parts which are listed as below :
►bottles turntable
►bottles filling machine
►bottles capping machine with automatic caps feeding system
►Bottles labeling machine
Now the machines are in detailed descrition respectively:
Bottle Turntable

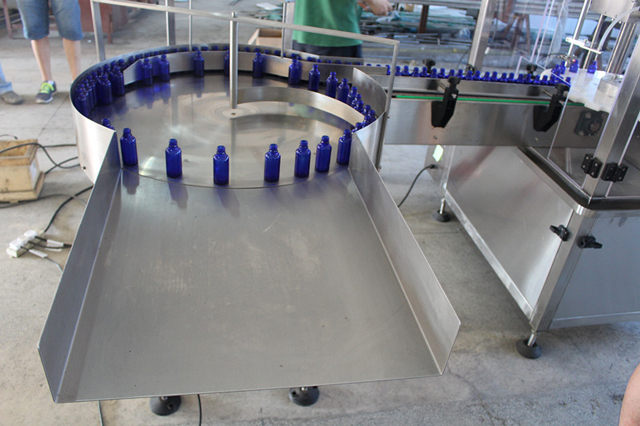

turntable for feeding bottles.jpg
turntable bottles.jpg

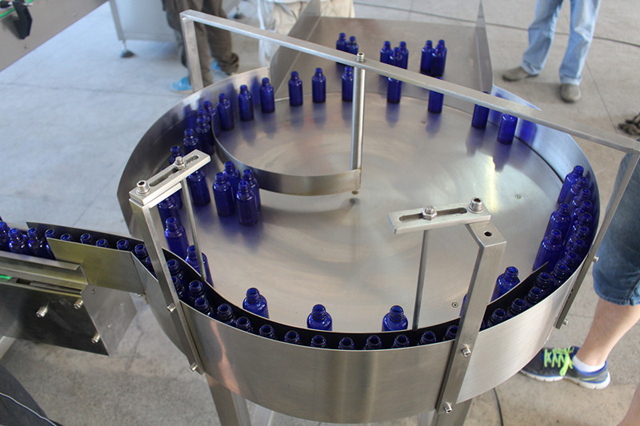

round bottles turntable.jpg
Specifications of bottles feeding turntable
1.Bottle Feeding Machine
2. Easy Operation
3. Connecting the Production Line
4. SUS304 Stainess steel
5. meet GMP
Introduction:
This unscramble bottle machine is the artificial bottles in the round table,
wheel rotation will have to dial the conveyor
belt into the bottle, into the filling machine for filling. Easy to use, simple operation is one of the indispensable link
Related equipment: the following equipment can be selected, can form unscramble bottle-filling-capping-labeling
the production line.
Technical Specification:
Applicable specifications:20-1000 ml
Bottle diameter:φ10-φ80 mm
The bottle height:85-300 mm
Production capacity:0-100 BPM (speed adjustable)
Voltage:110v/220v/380v;50hz/60hz
Power:0.5 kw
Weight :100kg
Machine size:1300*1000*1300mm
Stainless steel:SUS304 material
E juice Bottle Filling Capping Machine

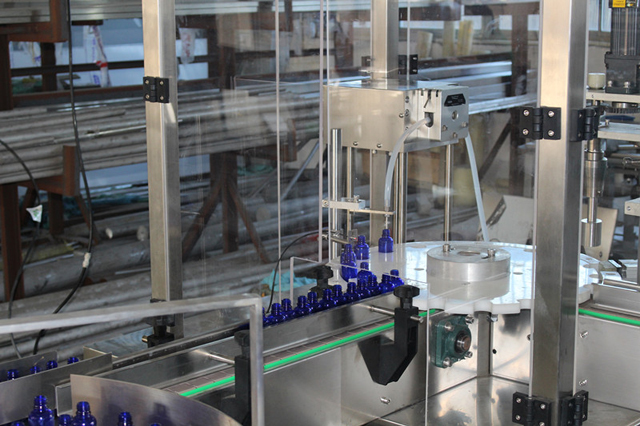

filling line for E liquid.jpg

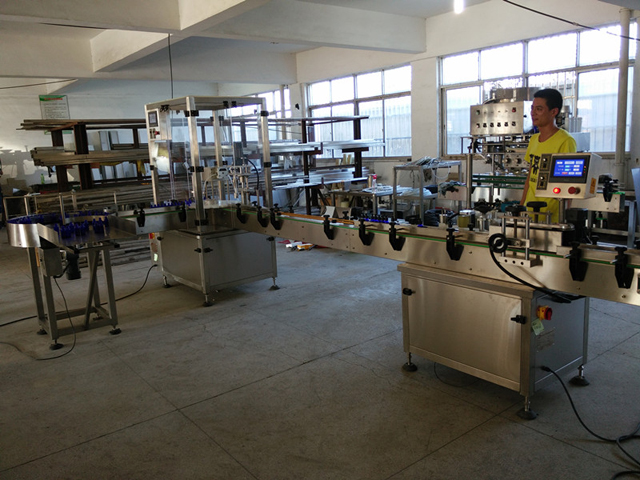

machine testing in factory.jpg

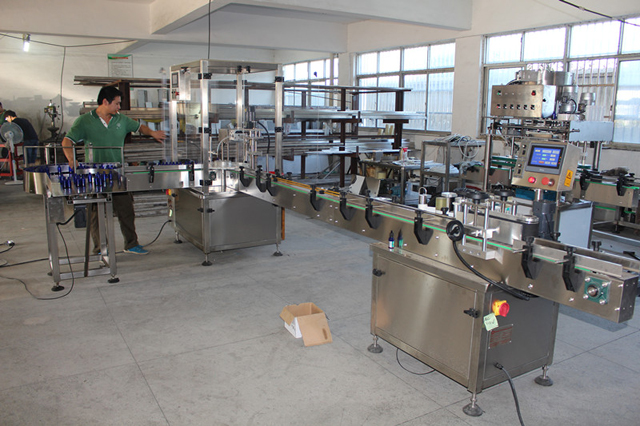

round bottles filling line.jpg
Specifications:
1.suitable for E-liquid and other liquid product filling.
2.automatic filling,plugging,capping,
3.CE
Main performance and structure features:
This production line is suitable for the filling of 2-50ml liquid. It consists of bottle unscramble machine,linear filling
and capping machine and vertical labeling machine. This line can completely finish the work of automatically bottles
unscramble,filling, capping , rotary ( rolling ) cover,labeling and other processes.Mainly used for the filling linkage
production of various liquid materials in pharmaceutical, food, chemical industry.The production line is fully compliant
with the GMP requirements.
1. No bottle no filling,no bottle no capping,suck out foam.
2. Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP
regulation.
3. Plugging and capping by manipulator automatically.
4. Easy operation and convenient maintenance.
Technical Parameters:
Applicable specifications 2-50ml
Filling head one heads
Production capacity 30-50 bottle /min

Filling accuracy ±1%
Capping rate ≥99%
Power supply 220V / 50Hz;380V
Power 2kW
Total dimension 2500 * 1000 * 1500MM

Round bottles  Labeling Machine

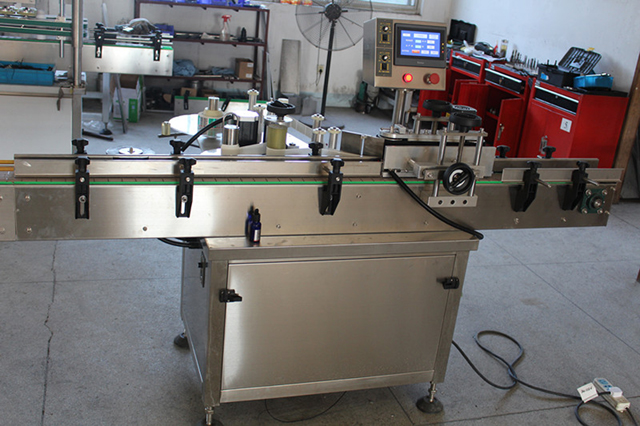

round bottles labeling.jpg
Specifications:
1.Easy operation, Easy printing.
2.High accuracy,high quality and high speed
3.CE
Application:
Suitable for round objects with smaller diameter.
Main technical parameters:

Operating direction Left or Right
Labeling Accuracy ±1.0 mm(subject to the roughness of the plane)
Production(bottle/min) 60-150(according to the size of bottle and label)
Labeling Speed(m/min) ≤40
Label Specifications adhesive sticker,transparent or opaque
The application of bottle Outer diameter 40-100mm Height 35-200mm
The application of label Height 20-160mm ; Length 23-280mm
The inner diameter of label roll 76mm
The outer diameter of label roll 350mm (max)
The power of motor(w) 550W
Voltage AC220V 50/60HZ Single phase
Size appearance(mm) 2000(L)*1000(W)*1270(H)mm

Machines for E liquid filling line with unscrambler&bottles lifting system for feeding system

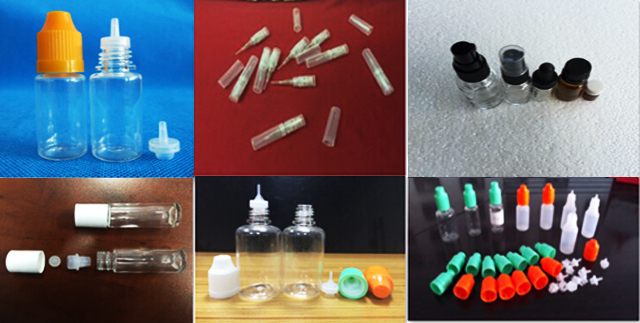

Samples for model YX-50G filling capping labeling line with bottles feeding turntable

BOTTLES samples from model YX-50G.jpg

Wooden case packing for E liquid filling line


container loading in factory.jpg

After sales service &guarantee for vacuum emulsifier machine with load cell weighing system electric heating

 PAYMENT TERMS SMALL .jpg

Guarantee: for all the machine, it claims one year for guarantee.



(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
