liquid filling machine

Automatic BIB filler juice filling bag in box filling machine for milk liquid perfume single double heads

Automatic BIB filler juice filling bag in box filling machine for milk liquid perfume single double heads

The bag-in-box filling machine special for1L-30L edible oil is a contrivance our company has technically designed for 5L-30L edible oil bag-in-box filling operations by drawing on advanced countries’ technology. It employs a flow meter to control the quantity of material released in each discharge, and features high filling precision, intuitive and easy moves to set up and adjust the filling quantity. The machine both with single and double-head models can be widely used in automatic quantitative bag-in-box filling and capping for all kinds of 5L-30L concentrated juice, edible oil and other liquid materials etc.



Construction:

filling nozzles.jpg

This machine consists of a stainless steel frame, an electric control system, an automatic quantitative filling system, an uncapping/capping system and a vacuum pumping system.



Performance and Features:

Touch screen for bags filling.jpg

BIB filler.jpg

1. It features a beautiful appearance thanks to a housing and a machine frame fabricated with quality stainless steel; all tubing contacting the material is made of 304# stainless steel and food grade plastic tubes, which helps realize cleaning in place (CIP) and comply with hygienic standards for food;

2. It can complete some process steps automatically, including realizing net weight, uncapping following the bags delivered  by people, vacuum pumping, quantitative filling, pressing the caps, and others, and therefore enjoys a high level of automation;

3. Thanks to use of a flow meter to control the quantity of material released in each discharge, the machine features high filling precision.

4. It is intuitive and rapid to set up and adjust the filling quantity within the scope of design;

5. The machine can fill at two speeds to avoid washover and keep high filling precision;

6. All its pneumatic and electric parts and components are imported products of well-known international brands and guarantee stable performance, excellent reliability and durability;

7. The machine can conduct vacuum pumping on the bags before they are filled, thereby helping extend the shelf life of the product. It also enables addition of a nitrogen charging system according to the customer's requirements (customized on the basis of the standard configuration);

Major Technical Parameter of 1head/double heads filling machine BIB filler:

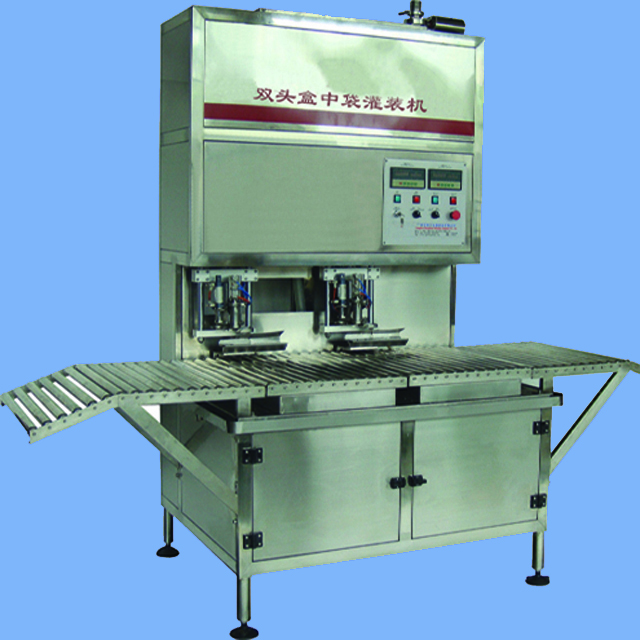

bag in boxes filling machinery.jpg

bag in boxes filling machinery.jpg



Model

YX-BB01

YX-BB02

Filling head One piece Two pieces

Filling Range

1KG-25KG

1KG-25KG

Capacity

200-250BPH

400-500BPH

Filling Precision

≤±0.2%(above 10L)

≤±0.2%(above 10L)

Supply voltage

AC220V±10%

AC220V±10%

Power

≤0.15 KW

≤0.2 KW

Operating pressure

0.6-0.7Mpa

0.6-0.7Mpa

Material entrance pressure

0.3-0.35Mpa

0.3-0.35Mpa

Air consumption

0.8Mpa 0.2m3/min

0.8Mpa 0.2m3/min





























Bags samples for  BIB filling machine

bags samples for filling machine.jpg

wine bag in boxes.jpg

bag in boxes filling machine.jpg

After-sales service for filling line

wooden case.jpg



We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial

factors within one year, we will freely provide them or maintain them for you. After one year, if you need

to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you

have technical question in using it, we will freely do our best to support you.

Guarantee of quality :

The Manufacturer shall guarantee the goods are made of  Manufacturer’s best materials, with first class workmanship,

brand new, unused and correspond in all respects with the  quality, specification and performance as stipulated in this Contract. Quality guarantee period is within 12 months from B/L date.

 The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.

If the break- down can be due to the improper use or other reasons by the Buyer,  the Manufacturer will collect repair parts cost.

Installation and Debugging:

The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on

buyer’s side (round way flight tickets, accommodation fees in buyer country).The buyer should provide his site assistance for the installation and debugging.
