semi automatic filling machine

double heads fully pneumatic cream thinner high viscosity filling machine explosion-proof semi automatic filler machinery

double heads fully pneumatic cream thinner high viscosity filling machine explosion-proof semi automatic filler machinery

5Liters filling volume double heads fully pneumatic cream thinner high viscosity filling machine explosion-proof semi automatic filler machinery

model YX-F2-500

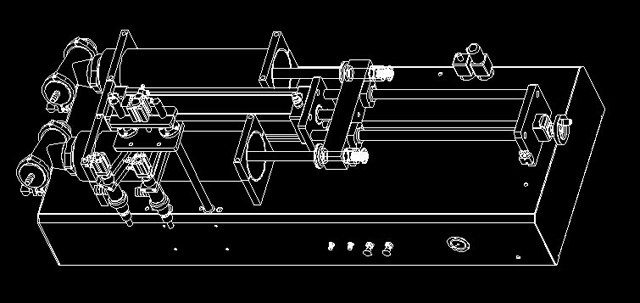

Drawing of double heads filling machine semi automatic model YX-F2 double heads series

high viscosity liquid filler equipment 5Liter thinner.jpg

drawing of double heads fully pneumatic filling machine 5Lit

drawing of double heads fully pneumatic filling machine 5Lit

This machine is used for filling cream or paste or liquid with thick-viscosity like skin care cream lotion thinner paint etc

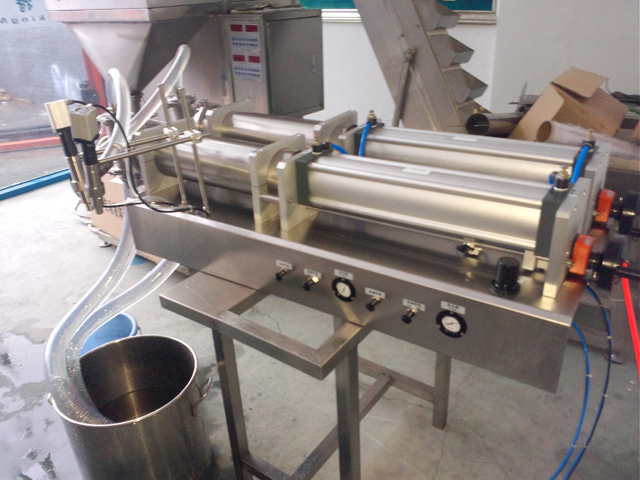

pneumatic filler machinery semi automatic.jpg

double heads 1000-5000ML filling machine Parameter:
double heads 1-5L filling machine for thick viscosity materi
Voltage: 220V/60Hz, 110V/50Hz
Air pressure: 0.4-0.6MPa
Filling speed: ≤3000pcs/Hour
Hopper Capacity: 50L
Shipping package size: 950*420*380mm
Tank shipping package size: 450*450*500mm
Filling accuracy: ≤±1%
Filling Range: 1000--5000ml
Filling Heads: double heads
the weight of the packing machine is 90KG
Principle of pmeumatic filler equipment:

Wearing Parts:Silica gel O-ring System (when delivery, I will prepared enough for you use in one year.

Customer can buy in the future in their country)

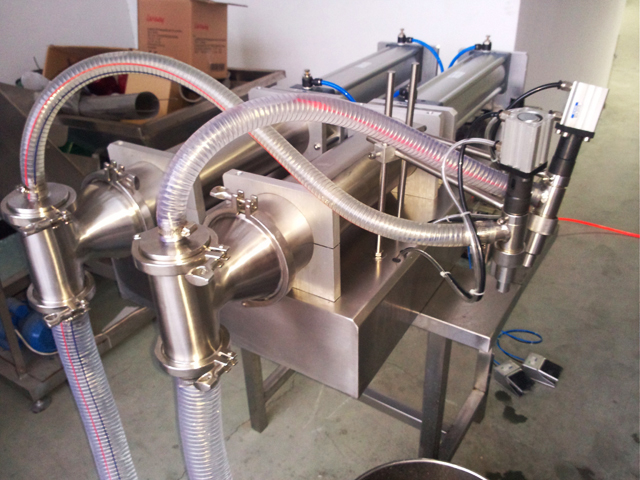

pneumatic filling machinery.jpg

double filling nozzles filling machine.jpg

semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.Some contact materials are used 304 stainless steel materials, in line with
the GMP requirements.
Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.

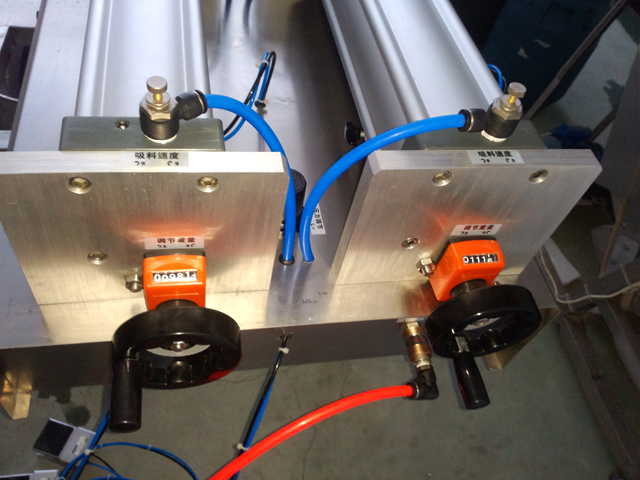

pneumatic piston part for filling machine.jpg
 Features: This machine adopts full pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.

filling samples for containers.jpg



►The machine is suitable for filling food trades(such as: pearl milk tea nata de  hick broad-bean sauce chili sauce peanut sauce etc);cosmetics(shampoo frost shower gel);daily health product(toothpaste)

►The machine adopts pneumatic working principle, simple operation, high filling precision,is a certain concentration or certain size granular materials ideal filling  equipment.
