5 gallon water filling machine production line



This 5 gallon water filling machine production line  is for filling mineral water, distilled water and purified water into barreled/bucket/jar. The barrel water drink filling machine works reliably and efficiently based on the compact structure and high automatic technology. This barrel water drink filling machine is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Features of 5 Gallon water filling line
filling machinery for 5 gallon.png

►The spray nozzle for washing is the technology products of American sprayer company

►Intellectual management, controlled by MITSUBISHI micro-computer.

►Siemens electrical element

►AIRTAC pneumatic element

►The whole set of equipment is made of stainless steel especially for food

►Including system for automatic cap settling and cap transportation

► Installment of automatic trouble protected device

Basic parameter of 5 gallon water filling line automatic three-in-one mineral water filler

water process line.jpg

Model

YX-WF100

YX-WF300

YX-WF450

YX-WF600

YX-WF900

YX-WF1200

Filling heads

1

2

3

4

8

12

Volume(L)

18.9

18.9

18.9

18.9

18.9

18.9

Barrel size(mm)

φ270×490

φ270×490

φ270×490

φ270×490

φ270×490

φ270×490

Capacity(B/n)

100-120

200-240

300-400

600

900

1200

Gas pressure(mpa)

0.4-0.6

0.4-0.6

0.6

0.6

0.6

0.6

Gas consumption (m3/min)

0.37

0.6

0.6

1.2

2.2

3

Motor power(Kw)

1.75

3.22

4.8

8.5

8.5

8.5

Rated voltage(V)

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

Outline dimension(mm)

2800×650 ×1550

3400×1420 ×1550

3700×1800 ×1800

4600×1500 ×1800 1100×1200 ×1800

4700×2000 ×2200

1000×1200 ×2200

6000×2350 ×2250

2200×2100 ×2200

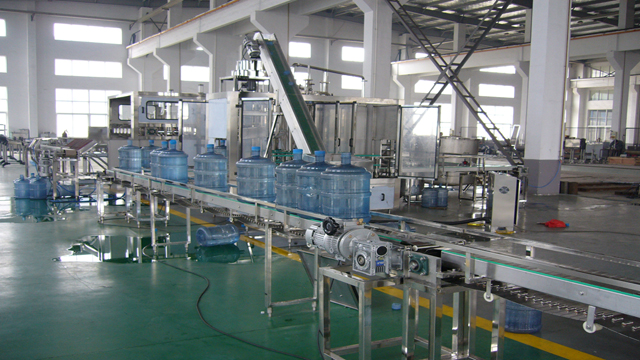

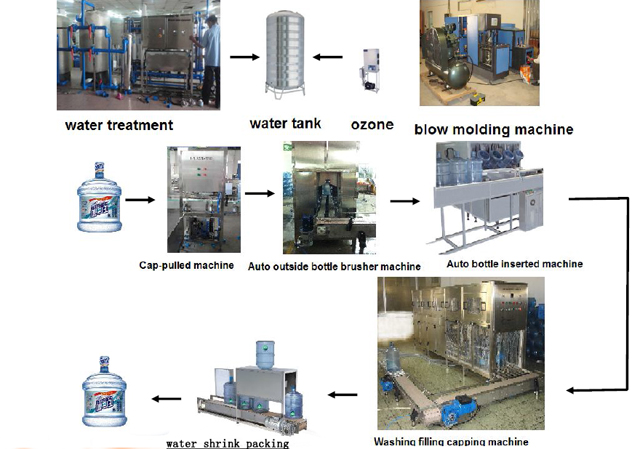

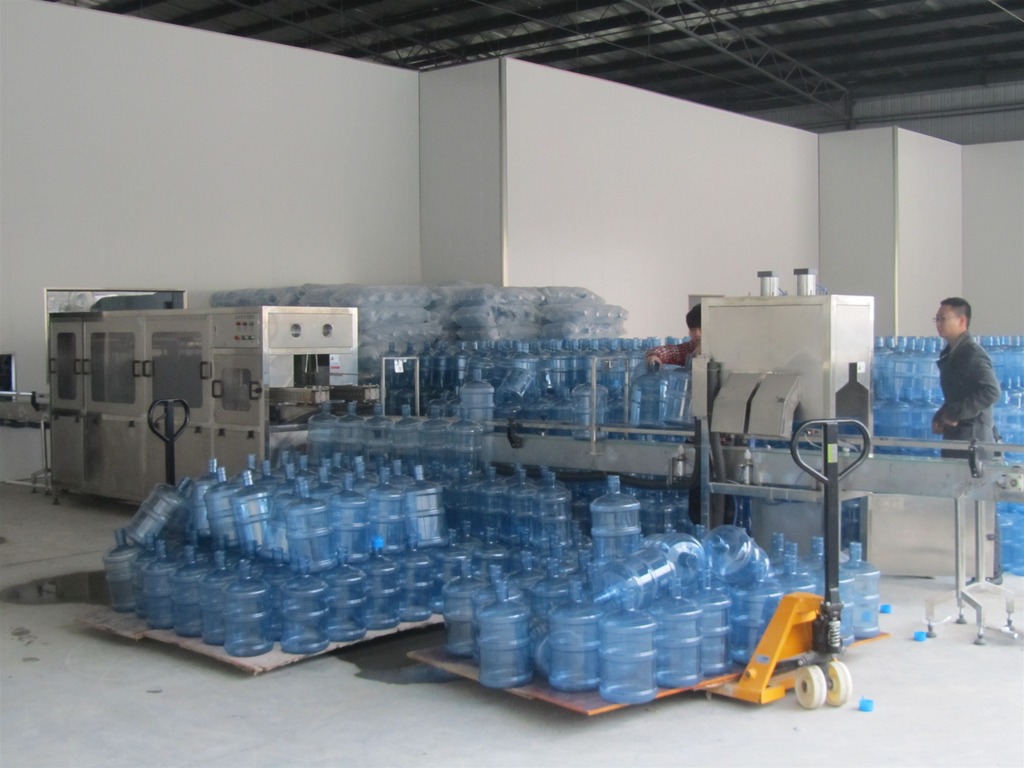

water filling line from A to Z for 5 gallon containers

machine in customer factory.jpg

water process line.jpg

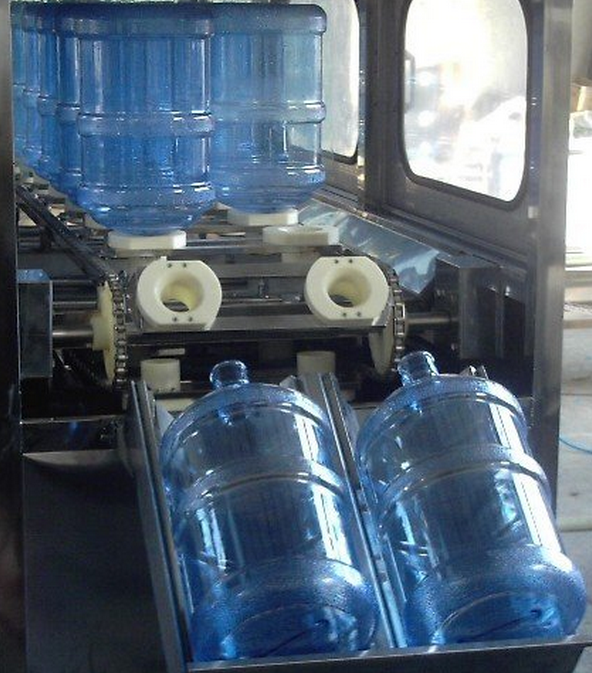

Other details about water filling line in factory

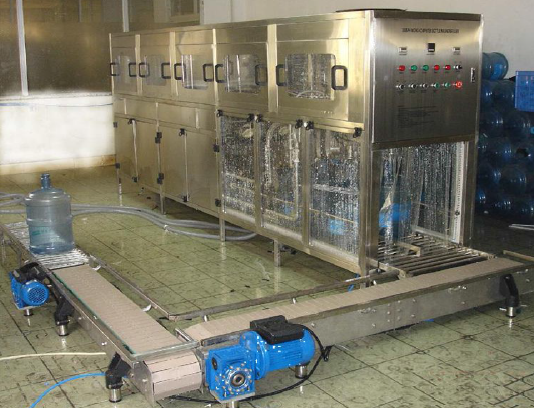

washing machine for filling line.png

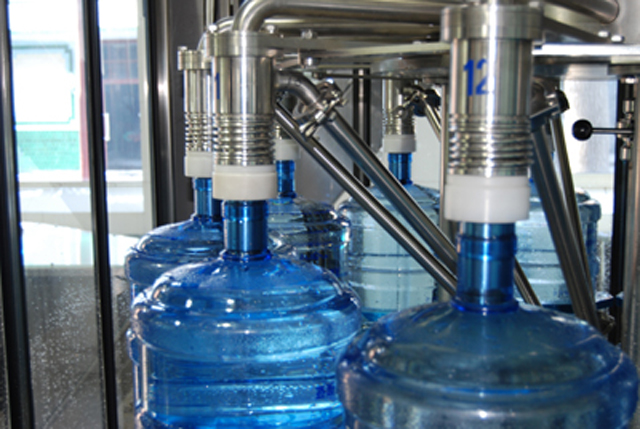

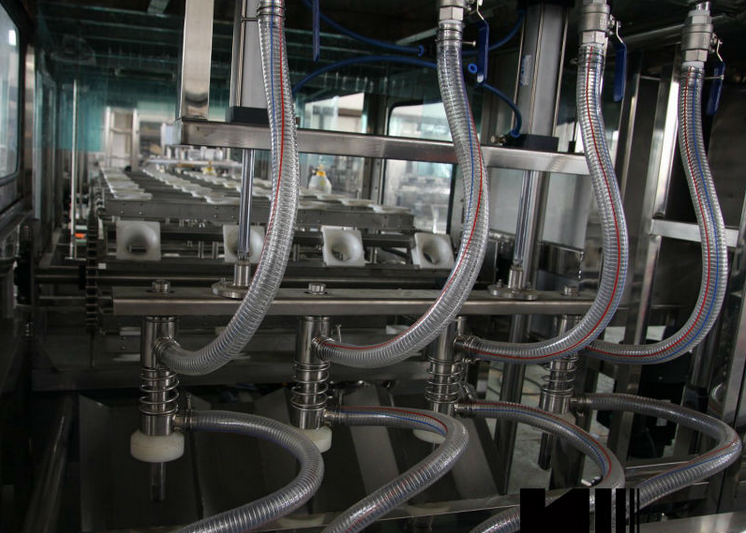

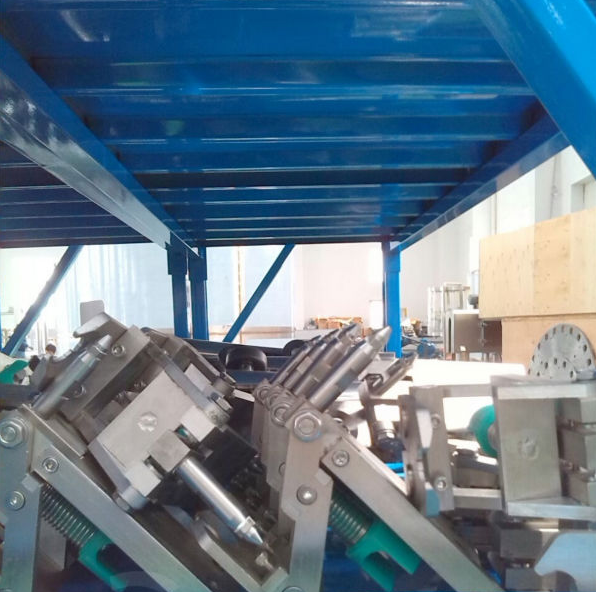

production processing pictures.png

production processing pictures.png

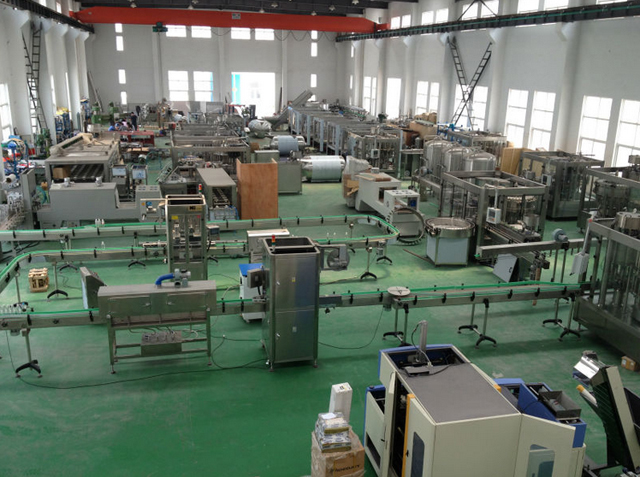

Water filling line in workshop for manufacturing

5-Gallon-Water-Bottle-Filling-Washing-and-Capping-Machine.jp



Water gallon samples after filling line

water gallon in factory.jpg



Plywooden case packing for exporting water washing-filling-capping equipment

machines in plywooden case.jpg

After-sales service for PENGLAI filling machines

after-sales service for filling machine.jpg

Guarantee: for all the machine, it claims one year for guarantee.

(Excluded from the warranty are problems due to accidents, misuse,misapplication,storage damage,negligence,or modification

to the Equipment or its components.ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine

and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on

your account; you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,

our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above).

PENGLAI INDUSTRIAL CORPORATION LIMITED
